Type |
Solar Panel Cleaning Brush |
Typology | Single head |
Model | Manually operated |
Lead Time |
10 Days |
Payment |
T/T, L/C,Western Union |
Warranty |
5 Years |
Single head solar panel cleaning device
In the year 2024, the recently patented technology, featuring both air-cooled dry cleaning
and dual-use with water capabilities, has been officially introduced.
Improved Stability with Single-Head Balanced Power
Featuring an enhanced structural design for increased stability, this system incorporates a single
brush head that efficiently rotates and balances the applied force. Harnessing the friction generated
by the high-speed rotation of the electric brush, it effectively addresses dust, adhesive dirt, and
obstinate bird droppings on solar panels, complemented by a water spray. Despite transitioning from
dual to single-head, the advanced design still ensures superior stability compared to single-head
devices or roller brushes.
Extension Pole with Locking Mechanism, Extending up to 7.5 Meters
Featuring a reliable locking mechanism, the telescopic pole allows for flexible length adjustments,
enabling easy cleaning from the bottom to the uppermost part of the panels. With the ability to
effectively clean around four rows of solar panels, it offers convenient and versatile maintenance.
Single-Head Solar Fiber Brush with High Density
Crafted from imported nylon material, this brush features outstanding wear resistance and ensures
no damage to solar panels during cleaning, now in a single-head design.
Effortless Cleaning with a Lightweight Design of around 6kg
In order to facilitate convenient remote cleaning and control, the machine has undergone substantial
weight reduction in its structure, all while maintaining a balanced power distribution. With the capacity
to be held with one hand, even at a length of 8 meters, it ensures easy cleaning without causing fatigue
to workers or necessitating long-distance travel.
Effortless Cleaning with T-Type Angle Adjustment
Through automatic angle adjustment, our system eliminates the requirement for manual angle tweaking
during cleaning, catering to both close and distant surfaces. The T-type damping structure ensures the
brush head aligns parallel to the surface, improving product stability and optimizing cleaning efficiency.
There are two pole options for cleaning solar panels: aluminum alloy (default) and carbon fiber
(with varying prices), customizablebased on your needs. Aluminum alloy poles are durable and
suitable for regular use, while carbon fiber poles are lighter and more flexible, ideal for intricate cleaning tasks.
Choose based on your requirements; carbon fiber is better for frequent carrying or cleaning complex surfaces,
despite the higher price.
Tags:

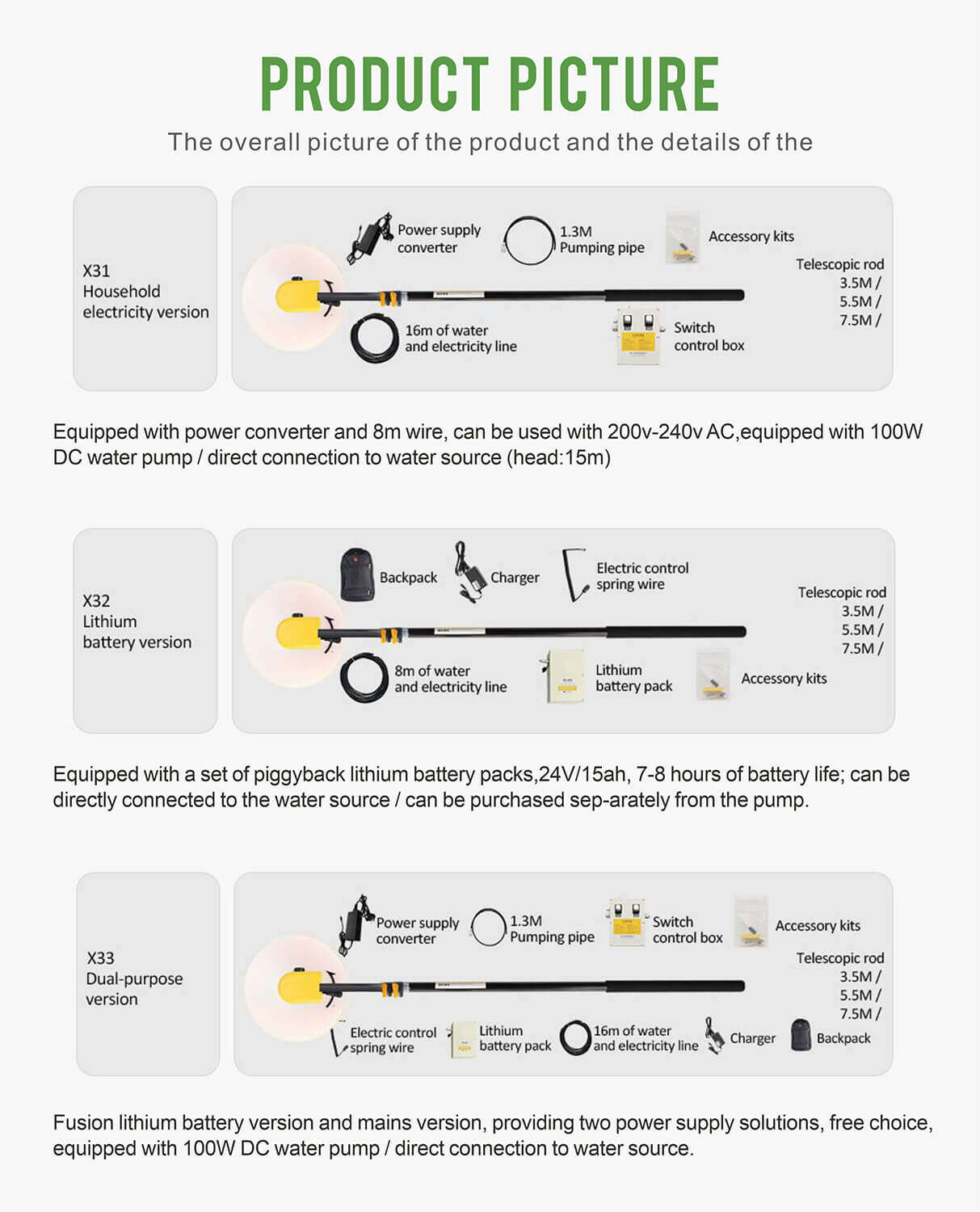

The X31 version includes:
X31 version is equipped with a DC water pump with a head of 15 meters and a
maximum water flow of 180 liters/hour. The power converter can be connected
to 100V-240V AC.
The X32 version includes:
X32 version is equipped with a set of piggyback lithium battery packs, 24V/15ah,
and about 7-8 hours of battery life; can be directly connected to the water
source(the pump can be purchased separately).
The X33 version includes:
X33 version combines the X31 and X32 versions, providing two power supply solutions,
free choice, and direct connection to the water source.
Product Parameter
Version |
Household Version |
Lithium Battery |
Dual Version |
Length of Hose 16 meters (can be customized) |
✔ |
✖ (8 meters) |
✔ |
Length of Pole 3.5 m / 5.5 m / 7.5 m |
✔ |
✔ |
✔ |
Retracted Length 1.5 m / 1.8 m / 2.2 m |
✔ |
✔ |
✔ |
Cleaning Width 30cm |
✔ |
✔ |
✔ |
Motor Voltage: 24 V / 120 W Speed: 320 RPM |
✔ |
✔ |
✔ |
Lithium Battery 24 V / 15ah |
✖ |
✔ |
✔ |
The Pump Parameter 24 V / 100 W | ✔ | ✖(optional) |
✔ |
Power Supply AC 100-240 V to DC 24 V |
✔ |
✖ |
✔ |
Comparison of parts and equipment:
|
Neexgent brand |
Friendly business |

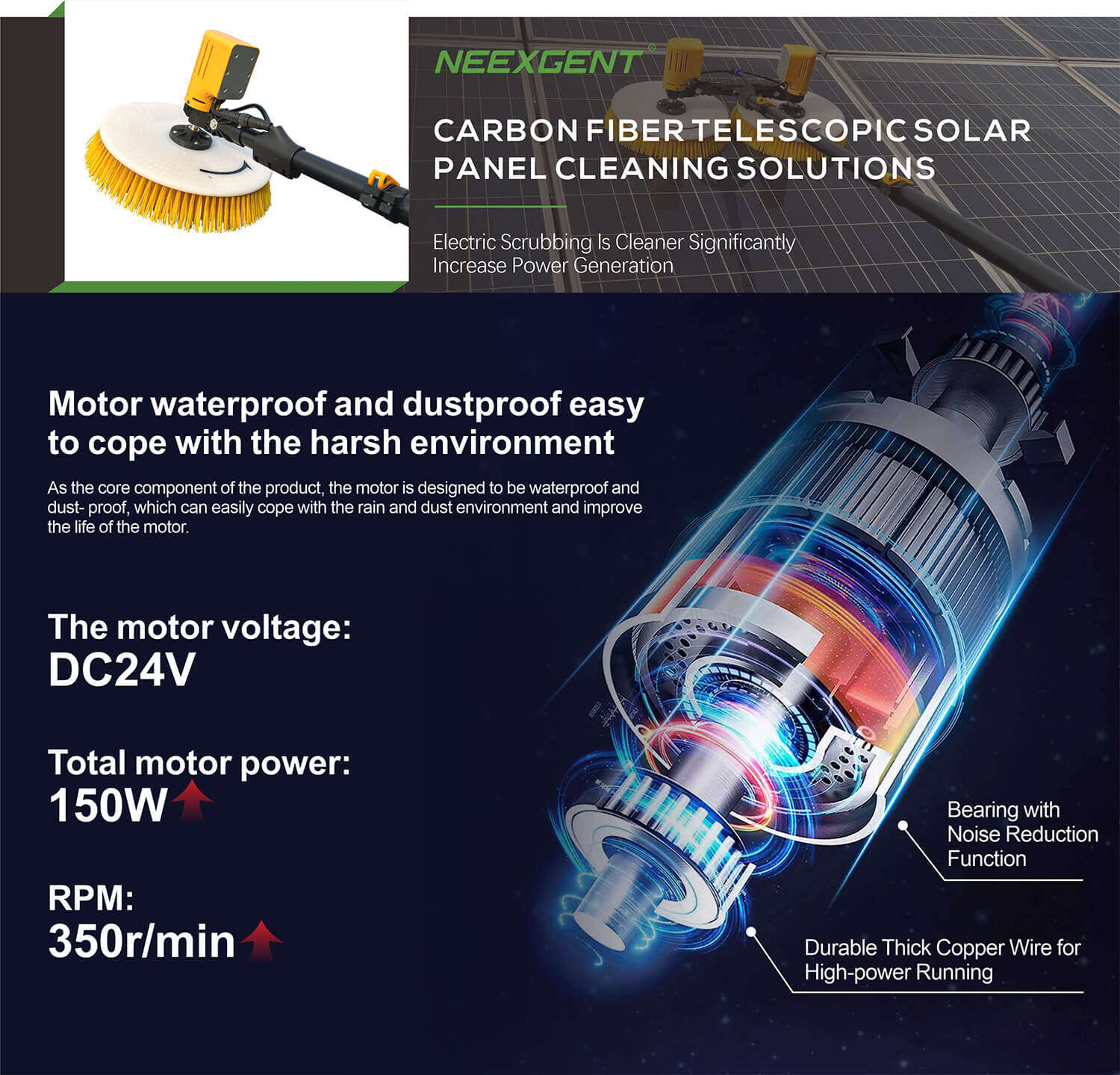

Motor quality comparison
|
Brand motor, longer service life |
Small workshop |
Runfeng motors are supplied by famous brands with stable quality. |
||
Protection comparison |
Protective cover protects the motor |
Bare motor |
Runfeng motor has added a unique protective cover design, which is dust-proof,waterproof and anti-collision. |
||
Plug quality comparison
|
Waterproof joint, waterproof grade lP68 |
Ordinary plug, almost waterproof |
Runfeng adopts integrated cable waterproof joint. 2.Better water resistanceand durability, longer service life. |
||
Cable protection |
Add protective net outside the pipeline |
Exposed cable leakage |
Runfeng cable is equipped with wear-resistant net to effectively prevent the cablefrom being damaged during operation and improve its service life. |
||
Power quality comparison
|
[GVE] Brand power supply |
Unknown brand |
Runfeng adopts the domestic top three brands of power supply [GVE], which hasmore reliable quality, low failure rate and longer service life. |
||
Brush package comparison |
||
Runfeng adopts the hair planting process, which is more firm than the braidedbrush head, is not easy to shed hair, and increases the service life of the brush head |
* Six years of expertise, delivering unparalleled quality through continuous upgrades.
