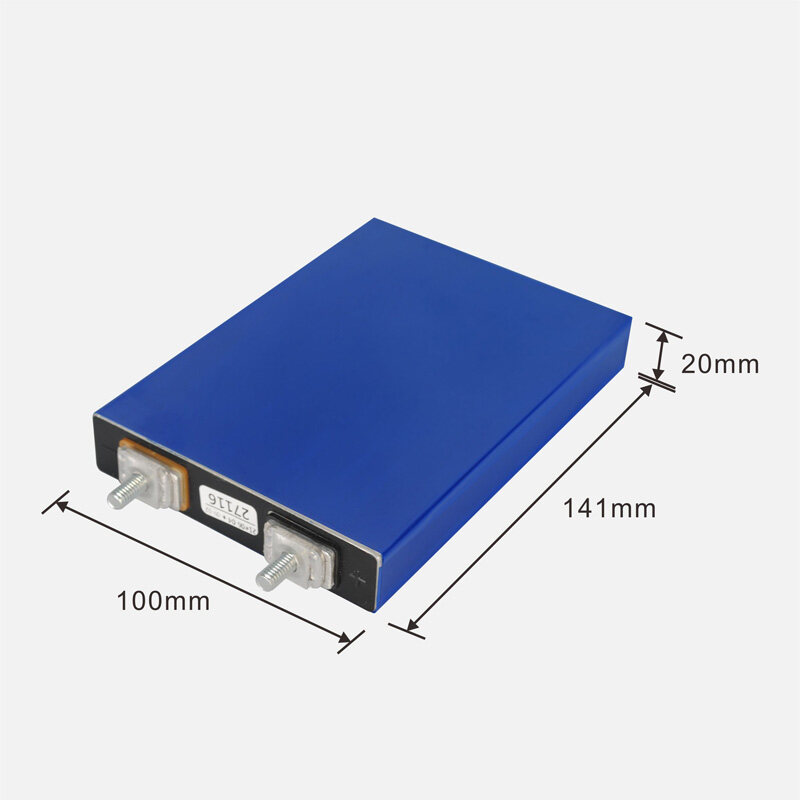

3.2v 26ah Prismatic Lithium Cells, known for their square shape, fit standard battery compartments. They offer higher amp-hour capacity than cylindrical cells, making them ideal for larger battery packs and energy storage solutions.
Product Features:
Rigorous 100% Pre-Testing at the Factory: Every cell undergoes matching in terms of capacity, voltage, and resistance prior to delivery.
Seasoned Manufacturer with Over 14 Years of Expertise
Exceptional Customer Service and Technical Support
Stringent Quality Control and a Proficient R&D Department
Intact QR Code, Grade A, and Brand New
Price Includes Bus Bars and Bolts: Each battery is bundled with a set of bus bar and bolt (e.g., purchasing 4 batteries provides 4 cells, 4 bus bars, and 8 bolts).
Prolonged Cycle Life: Rechargeable up to 6000 times, Mercury-Free, No Fire Risk, No Explosion Hazard, and No Leakage Concerns.
Accessory specifications Busbars: 90*20*2mm or 100*20*2mm
(We offer two options for busbars; for additional details, please contact us.)
Screw Size: M6
1 Battery Kit: Includes 1 busbar, 2 nuts, and 2 screws
For 4 Battery Kits: You'll receive 4 busbars, 8 nuts, and 8 screws.
(If you require more, please reach out to us via our online support.)
Notes.
Please refrain from immersing the battery in water.
Ensure correct polarity when inserting batteries; align the (+) and (-) properly.
Avoid disassembly, disposal in fire, exposure to heat, or short-circuiting.
Limit battery exposure to prolonged sunlight.
Avoid mixing new batteries with used ones.
Keep batteries out of reach of children.
Certifications:
UL, RoHS, CE, KC, UN38.3, MSDS
Usage Precautions:
Prior to use, carefully review the manual for proper battery handling.
Avoid exposure to fire and do not dispose of the battery by incineration.
Ensure correct terminal connections when placing the battery in a charger or device.
Prevent short-circuiting of the battery.
Shield against excessive physical shock or vibration.
Do not dismantle or distort the battery.
Keep out of children's reach.
Charging and Discharging:
Only charge the battery in a suitable charger.
Never use a charger that has been modified or damaged.
Avoid leaving the battery in the charger for more than 24 hours.
Storage:
Store the battery in a cool, dry, and well-ventilated area.
Disposal:
Regulations may vary by country. Dispose of the battery in accordance with local regulations.
Tags:
Model NO.
NG26
Nominal Capacity(AH)
26AH
Nominal Voltage(V)
3.2V
Standard Charge Current(A)
0.5C
Maximum Charge Current(A)
1C
Impedance(Ω)
0.2mΩ
Max. Discharge Current(A)
2C
Max.Charge Voltage(V)
3.65V
Discharge Cut-off Voltage(V)
2.5V
Charge Working temp.(ºC)
0~55ºC
Discharge Working Temp.(ºC)
-20~55ºC
Cycle Life
6000 Cycles
Large Electric Vehicles: Buses, Electric Cars, Tourist Attractions, Hybrid Vehicles, etc.
Light Electric Vehicles: Electric Bicycles, Golf Carts, Small Flat Battery Cars, Forklifts, Cleaning Vehicles, Electric Wheelchairs, etc.
Power Tools: Electric Drills, Saws, Lawnmowers, etc.
Remote-Controlled Cars, Boats, Planes, and Other Toys
Solar and Wind Energy Storage Equipment
UPS (Uninterruptible Power Supply) and Emergency Lights, Warning Lights, and Mine Lights (Optimal Safety)
Replacement for 3V Disposable Lithium Batteries in Cameras and 9V Nickel-Cadmium or Nickel-Hydrogen Rechargeable Batteries (Same Size)
Small Medical Equipment and Portable Instruments, etc.
