REPT might not be as popular as EVE or CATL, however this does not imply that their products are of lesser quality.
In fact, they are often better and more cost-effective as these companies have to set themselves apart in the market.
While there are numerous choices for cell capacities, the most favored one is REPT 280Ah. The manufacturer promises
more than 6000 cycles which would last 16.4 years if a complete cycle is carried out every day.
But that is unlikely for your regular user so it really boils down to how you use these batteries according to your needs;
they are more likely to be worn out over time. Neexgent shows such a strong belief in the quality of their cells that they
even provide a 5-year warranty period.
REPT 205ah LiFePO4 Cells Feature:
Safety measures must meet international standards like UL, CE, EN62133, etc.
It is light, small-sized, highly energy dense and long cycle life ≥6000.
Customized production caters to diverse customer needs through independent development and design.
Wide operating temperature range, stable performance under high and low temperatures.
There are various cell types available for selection which makes it suitable for many different product fields.

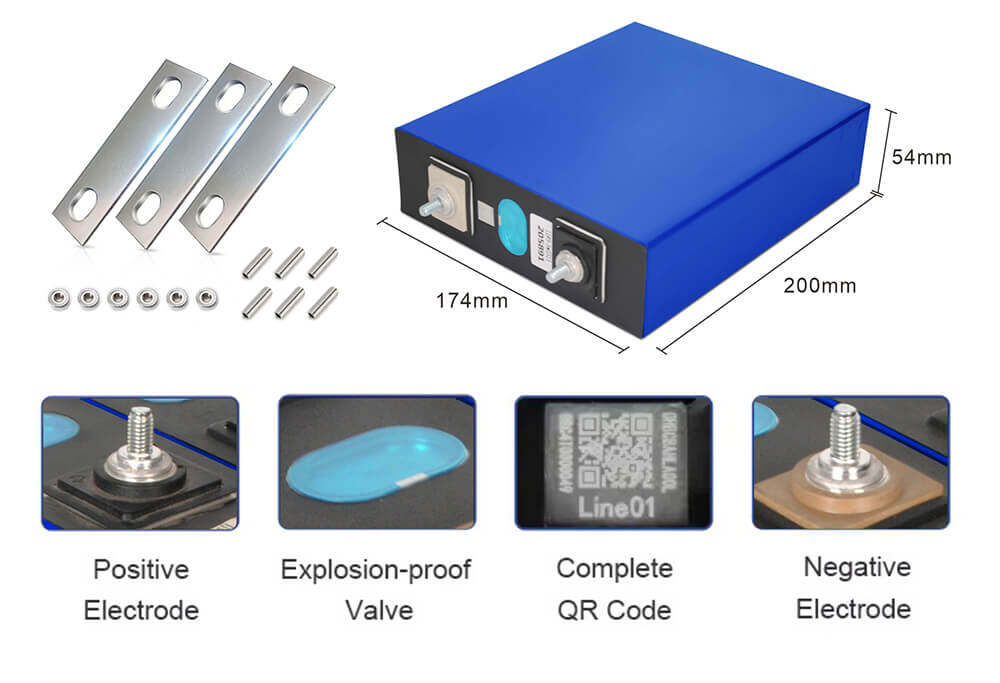

Accessory specifications Busbars: 90*20*2mm or 100*20*2mm
(We offer two options for busbars; for additional details, please contact us.)
Screw Size: M6
1 Battery Kit: Includes 1 busbar, 2 nuts, and 2 screws
For 4 Battery Kits: You'll receive 4 busbars, 8 nuts, and 8 screws.
(If you require more, please reach out to us via our online support.)
Notes.
Do not submerge the battery in water.
Ensure correct polarity when inserting batteries; align the (+) and (-) properly.
Do not open, burn, heat, or short-circuit it.
Avoid exposing the battery to long periods of sunshine.
Keep new batteries separate from old ones.
Batteries should be kept away from children.
We package lithium battery cells with top and bottom cushioning using foam to secure the product in place during transportation, preventing any damage.
Tags:
Unit: mm
W
Width
173.90±0.5
T
Thickness
53.72±0.3 (300±20Kgf)
H1
Total Height
206.61±0.5
H2
Shoulder Height
204.26±0.5
Nominal Energy
665Wh@ 0.33C
645 Wh @1C
Nominal Capacity
208Ah @ 0.33C
205 Ah @1C
Voltage Range
2.5-3.65V
2.0-3.65V
Impedance(1KHz)
≤ 0.3 mΩ
Shipping capacity
61.5±3.5Ah
Residual capacity loss
Per month ≤3%
Working Temperature
Charge: 0℃~60℃
Discharge: -30℃~60℃
Storage Temperature
-30℃~60℃
Cell dimension
Thickness:53.72±0.0mm
Width: 173.90±0.50mm
Height: 206.61±0.50 mm
Recommended SOC Range
5~100%SOC
Cell Weight
4.05±0.10 Kg
Energy Density
≥160Wh/kg
≥340 Wh/L
Cycle Life@25°C
≥ 6000 Cycles
Household Solar Energy System: If you choose LiFePO4 battery cells for your home solar power system, you can be sure of their great safety level, durability and efficiency, which make them a reliable and ecological option. These batteries provide self-sufficiency in energy, backup during emergencies and cost savings for homeowners.
Portable Electronics: You can find these batteries in many portable devices such as smartphones, laptops, tablets or digital cameras. They are designed specifically to suit these applications with high power delivered in a small size.
Business & Commercial: These include alarm systems, solar panel systems and security lighting in which LiFePO4 batteries are commonly used to ensure that there is no shortage of electricity supply.
Marine Applications: The lightweight nature and high-power output capacity of LiFePO4 batteries have made them the most preferred choice for driving fishing boats and kayaks.
Industrial Settings: This makes them ideal for powering machinery and equipment in industrial settings since they can withstand higher temperatures than other types of batteries while maintaining charge over long durations.
