Neexgent Solar Panel 120w Competitive Price Mono Solar Panel Small Solar Module For Home System

Type

Mono solar panels

Max.Power

120W

Output Voltage

EU And US Standard

Lead Time

10 Days

Payment

T/T, L/C,Western Union

Warranty

25 Years

Comprehensive Certificates

●IEC61215,1EC61730

●IS09001:2015 Quality management systems

●IS045001:Environmental management systems

●IS045001:2018 Occupational health and safety

450w half cut solar panel

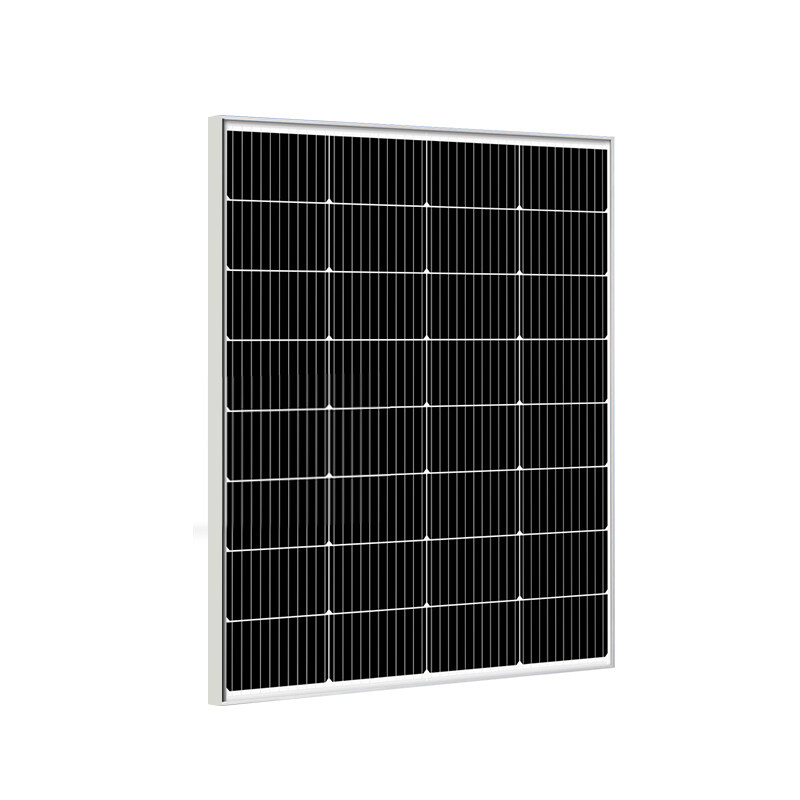

The NG120M monocrystalline solar panel is engineered for high power output and performance in residential applications.

Featuring 32 monocrystalline silicon cells, it is housed in a lightweight and exceptionally durable aluminum frame.

With an impressive efficiency of 21.8%, the NG120M excels in delivering high energy yields, all wrapped in a sleek

black-on-black design.



INTRODUCTION

1. Rigorous quality control meeting the highest international standards
2. High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon
3. Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies
4. High quality,strong aluminium frame,passing mechanical load testing 5400 Pa and wind pressure 2400Pa



Main Features:

  • Lightweight, highly efficient at 21.8% conversion rate.
  • Excellent electrical performance in harsh conditions.
  • Durable low iron tempered glass for enhanced impact resistance.
  • Waterproof, hail-resistant, stable, cost-effective, 25-year lifespan.
  • Versatile for various DC applications and off-grid battery charging.

120w monocrystalline solar panel



120 watt monocrystalline solar panel

120 watt mono perc solar panel

12v mono perc solar panel

monocrystalline solar panel 120w

monocrystalline solar panel 120w

mono solar panel 120wmonocrystalline solar panel 120 wattmono solar panel 120w

monocrystalline pv cell 120w

120w monocrystalline solar cell price

Tags:



mono poly solar 120w

Electrical Parameters at (STC)

Module

NG120M

Power(W)

120W

Module Efficiency(%)

19. 70%

Voltage at Pmax(Vmp)

18.24

Current at Pmax(Imp)

6.58

Open Circuit Voltage(Voc)

21.80

Short Circuit Current(Isc)

6.97

Power Tolerance(w)

士3%



Mechanical Parameters

Solar Cell(Type/Size)

MONO(182mm)

Solar Cells Number

32Pcs(4x8)

Dimension

800x760x30mm

Weight

7.30Kg/Pcs

Tempered Glass

3.2 mm High Permeability Coated

Frame

Anodized aluminum alloy

Junction Box

IP67.1* bypass diode

Cable

2.0mm2 (+)500mm/(-)500mm

Connector

Original MC4/Compatible MC4

Mechanical Load

Front 5400PA/back 2400PA



Packing

Module Type

NG120M-32

Carton Size

820x780x75mm

Number

2Pcs/Ctn

Weight

15Kg/Ctn

Volume

0.048Cbm/Ctn

20GP Container

1284Pcs

40HQ Container

2280Pcs
