12V 200AH SEALED VALVE-REGULATEDLEAD ACID BATTERY
NGX-12 General Purpose sealed lead acid batteries excel in standby applications (float charge),
delivering outstanding performance. Crafted with utmost precision to meet the highest quality standards,
the GP series ensures both reliability and extended lifespan. While suitable for intermittent cyclic use,
we recommend opting for the NGX-12 Cyclic or NGX-12 Gel Cyclic series for more frequent and
intensive cyclic usage.

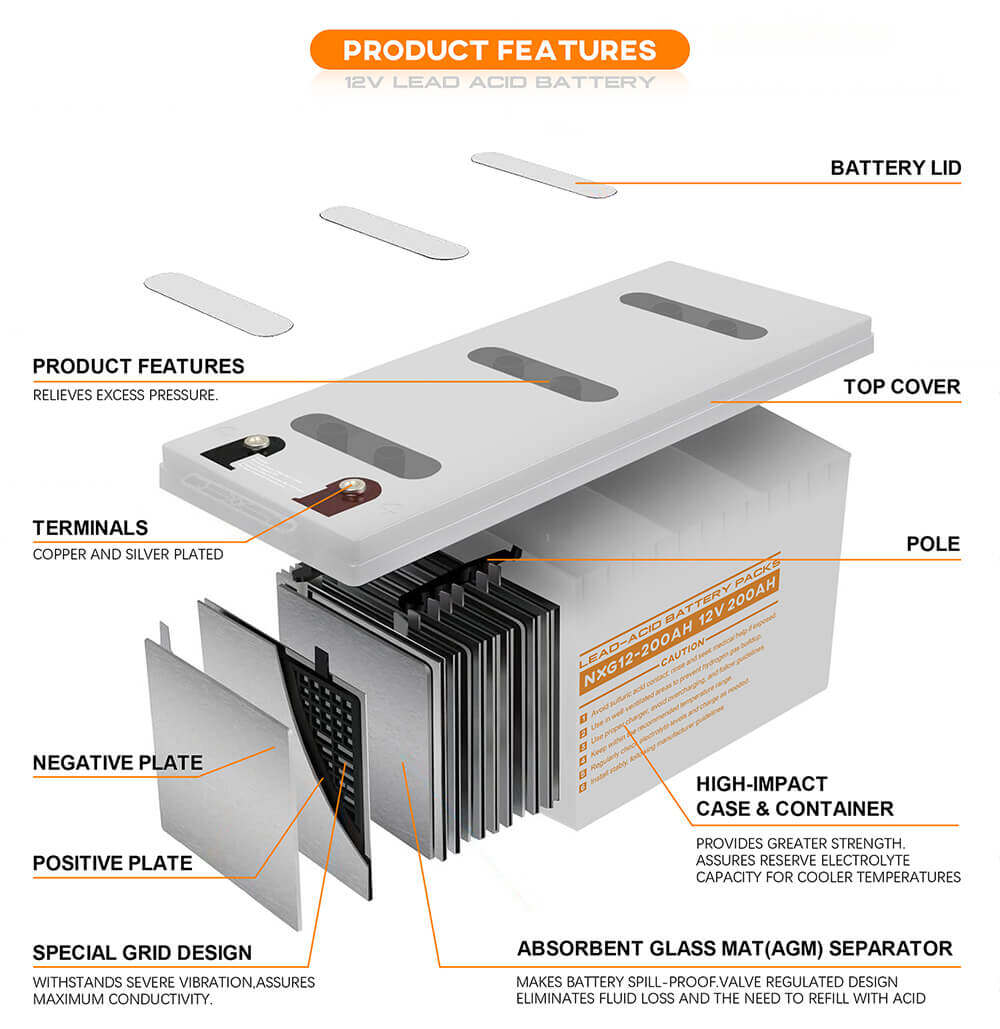

Product Features:
Product Applications:
If you need any help with series, parallel or series-parallel battery configurations, please contact us!
Tags:
1. Specifications
Nominal Voltage |
12V |
|
Rated capacity (10 hour rate) |
200Ah |
|
Dimensions |
Length |
522±2mm(20.55inch) |
Width |
238±2mm(9.37inch) |
|
Height |
218±2mm(8.58inch) |
|
Total Height |
222±2mm(8.74inch) |
|
Approx. Weight |
62.5kg(137.8lbs)±3% |
2. Characteristics
Capacity (25℃)
|
10HR(10.8V) |
200Ah |
|
3HR(10.8V) |
150Ah |
||
1HR(10.5V) |
110Ah |
||
Terminal type |
T16 |
||
Internal resistance (Fully charged,25℃) |
Approx.3.3m Ω |
||
Capacity affected by temperature (10HR) |
40℃ |
102% |
|
|
25℃ |
100% |
|
|
0℃ |
85% |
|
|
-15℃ |
65% |
|
Self-discharge (25℃) |
3 months |
Remaining Capacity:91% |
|
|
6 months |
Remaining Capacity:82% |
|
|
12 month |
Remaining Capacity:65% |
|
Nominal operating temperature |
25℃±3℃(77℉±5℉) |
||
Operating temperature range |
Discharge |
-15℃~50℃(5℉~122℉) |
|
|
Charge |
-10℃~50℃(14℉~122℉) |
|
|
Storage |
-20℃~50℃(-4℉~122℉) |
|
Float charging voltage(25℃) |
13.50 to 13.80V Temperature compensation: -18mV/℃ |
||
Cyclic charging voltage(25℃) |
14.40 to 14.70V Temperature compensation: -30mV/℃ |
||
Maximum charging current |
40A |
||
Maximum discharge current |
1400A(5 sec.) |
||
Designed floating life(20℃) |
12years |
3. Outer dimensions (mm)
4. Terminal Type (mm)
5. Construction
Component |
Positive plate |
Negative plate |
Container |
Cover |
Separator |
Electrolyte |
Safety valve |
Terminal |
Raw material |
Lead dioxide |
Lead |
ABS |
ABS |
AGM |
Gel |
Rubber |
Coppe |
6. Constant Current Discharge Characteristics Unit:A(25℃,77℉)
F.V/Time |
15min |
30min |
60min |
2h |
3h |
4h |
5h |
6h |
8h |
10h |
20h |
9.60V |
320 |
194 |
120 |
73.1 |
52.0 |
40.8 |
34.7 |
30.6 |
24.5 |
20.4 |
10.8 |
9.90V |
312 |
190 |
118 |
72.6 |
51.7 |
40.6 |
34.5 |
30.4 |
24.3 |
20.3 |
10.8 |
10.2V |
301 |
184 |
115 |
72.0 |
51.4 |
40.3 |
34.2 |
30.2 |
24.2 |
20.3 |
10.7 |
10.5V |
291 |
180 |
112 |
70.9 |
51.0 |
40.0 |
34.0 |
30.0 |
24.0 |
20.1 |
10.7 |
10.8V |
275 |
173 |
108 |
69.1 |
50.0 |
38.8 |
33.0 |
29.1 |
23.3 |
20.0 |
10.6 |
7. Constant Power Discharge Characteristics Unit:W(25℃,77℉)
F.V/Time |
15min |
30min |
60min |
2h |
3h |
4h |
5h |
6h |
8h |
10h |
20h |
9.60V |
3514 |
2177 |
1368 |
846 |
612 |
480 |
410 |
362 |
291 |
243 |
129 |
9.90V |
3429 |
2133 |
1347 |
841 |
608 |
477 |
408 |
360 |
289 |
243 |
129 |
10.2V |
3303 |
2068 |
1313 |
834 |
604 |
474 |
405 |
357 |
287 |
242 |
129 |
10.5V |
3190 |
2018 |
1272 |
821 |
600 |
470 |
402 |
355 |
285 |
240 |
128 |
10.8V |
3022 |
1944 |
1231 |
800 |
588 |
456 |
390 |
344 |
277 |
239 |
127 |
Note: The above characteristics data can be obtained within three charge or discharge cycles.
8. Charge and Discharge Diagram
