• 6000 cycles @80% DoD, effectively reducing total cost of ownership;
• Low maintenance battery, good chemical stability;
• Additional battery management system (BMS) to prevent abuse;
• Due to its very low self-discharge (LSD) rate and no vulcanization risk, up to 6 months;
• Reduces downtime, saves time and increases productivity due to superior charge/discharge efficiency;
• Suitable for a wider range of applications with exceptionally high ambient temperatures: up to +60°C;
• The lithium battery delivers more Wh/Kg weight while also achieving 1/3 OF the SLA equivalent.
• Lithium iron phosphate can be used in most applications using lead acid, gel or AGM type batteries.
Product Overview
• LiFePO4 battery has a stable and high output voltage platform, which can effectively guarantee its output power.
• LiFePO4 battery has higher thermal stability and chemical stability, which can better guarantee its safety.
• LiFePO4 battery has a long life and low overall cost of maintenance and use.
High cycle life
6000 cycles @80% DoD, effectively reducing total cost of ownership
Longer service life
Low maintenance battery, good chemical stability.
Built-in circuit protection
The battery management system (BMS) is designed to prevent abuse.
Better storage
Due to its extremely low self-discharge (LSD) rate and no risk of vulcanization, up to 6 months.
Quick charge
Reduces downtime, saves time and improves productivity due to superior charge/discharge efficiency.
Extreme heat resistance
Suitable for a wider range of applications where temperatures are unusually high: up to +60°C.
Lightweight
Lithium batteries provide more Wh/Kg weight while also achieving 1/3 of the SLA equivalent.
Matters needing attention
• Do not short-circuit, reverse polarity, crush or disassemble.
• Do not heat or burn.
• Do not soak in any liquid.
• Stored in 30~50% SOC. It is recommended to recharge every 3 months. Storage areas should be clean, cool, dry and ventilated
Tags:
Model NO. |
NG04S50A |
Nominal Capacity(AH) |
50AH |
Nominal Voltage(V) |
12.8V |
Standard Charge Current(A) |
0.5C |
Maximum Charge Current(A) |
1C |
Impedance(Ω) |
0.2mΩ |
Max. Discharge Current(A) |
2C |
Max.Charge Voltage(V) |
3.65V |
Discharge Cut-off Voltage(V) |
2.5V |
Charge Working Temp.(ºC) |
0~55ºC |
Discharge Working Temp.(ºC) |
-30~75ºC |
Cycle Life |
6000 Cycles |

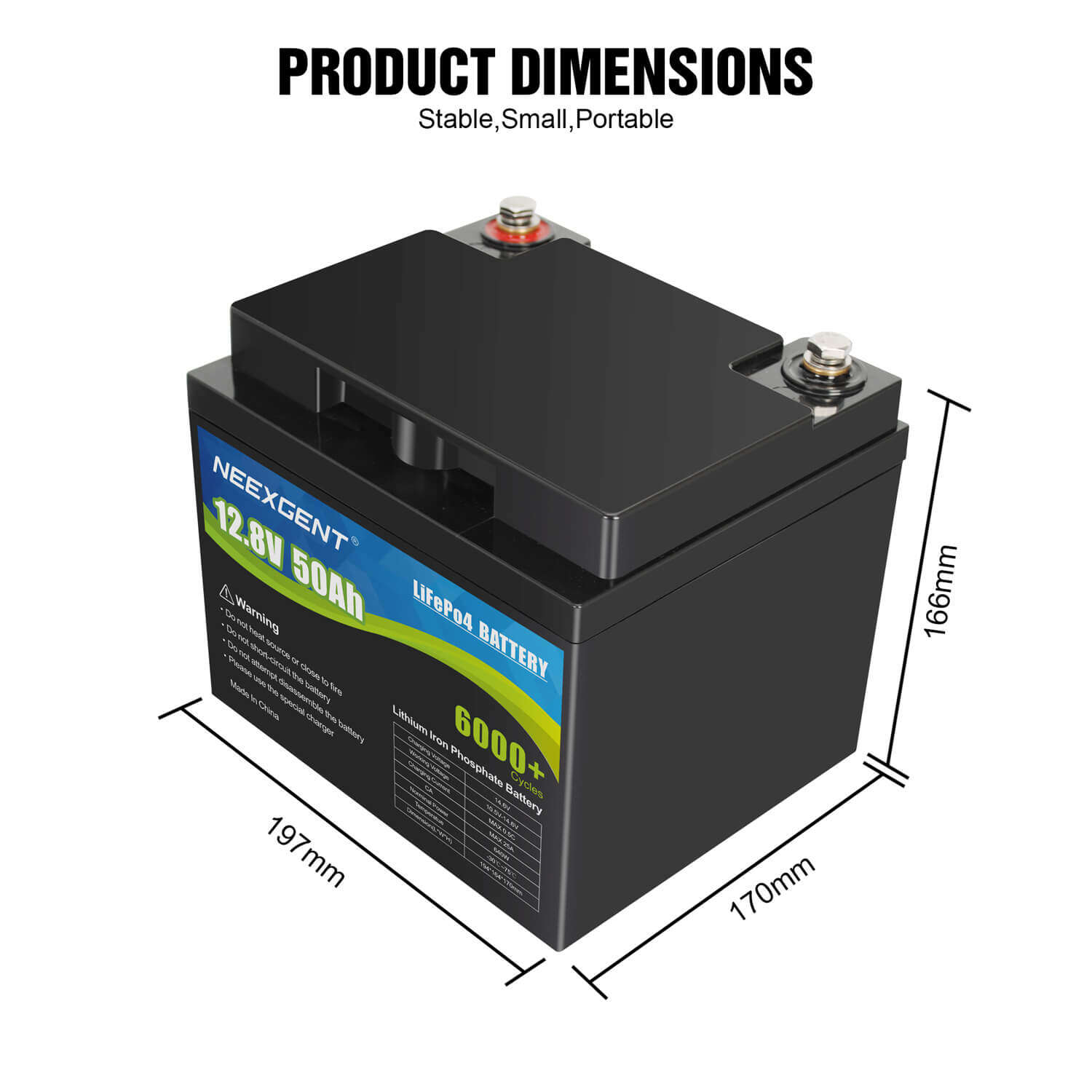

Size | 195x165x170mm |
