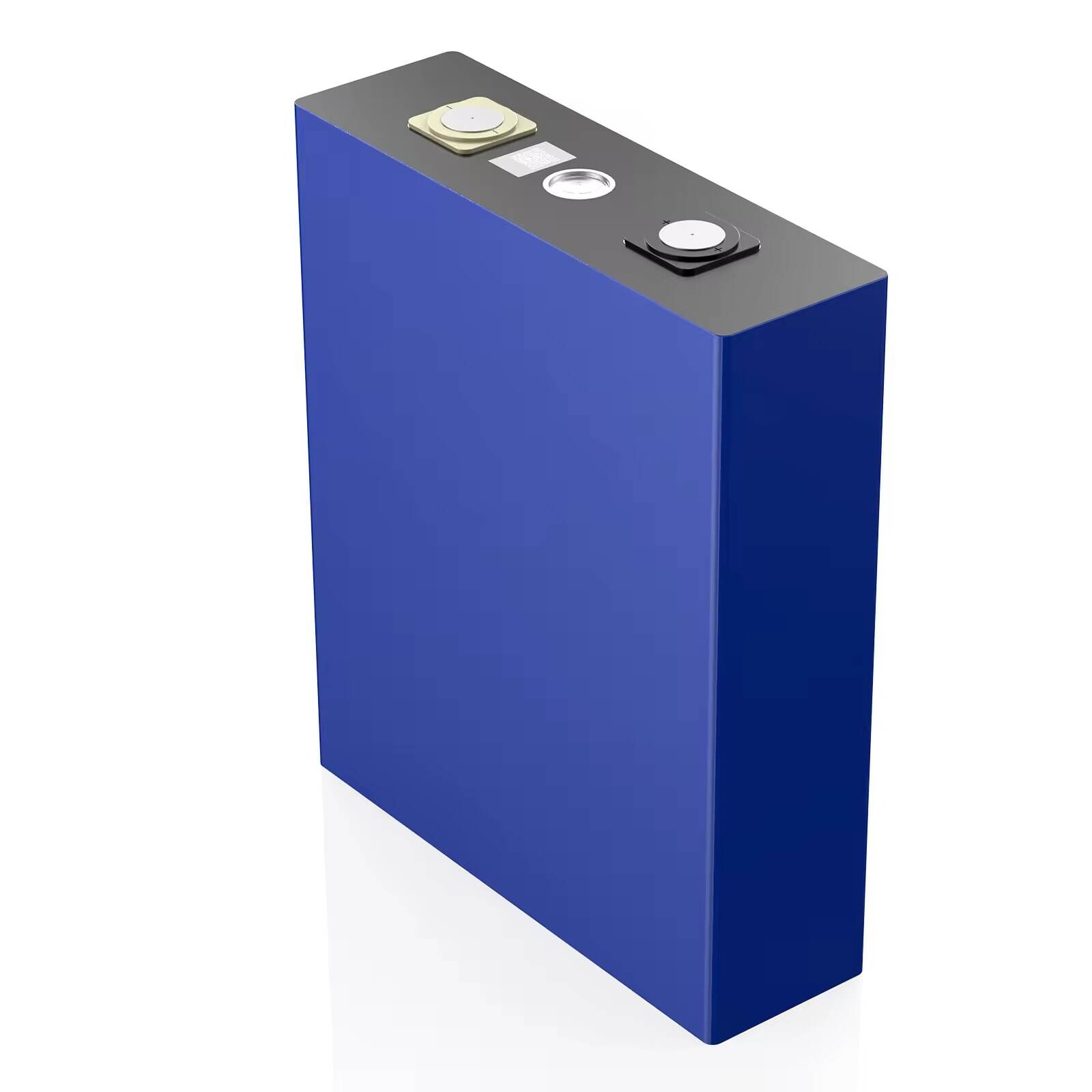

Neexgent LiFePO4 3.2v Prismatic Battery Cell 206ah EV Solar Storage Battery

Type

LiFePO4 Cells
Specification

3.2V 206Ah

Brand other

Certificate

SGS, UN38.3, CE, RoHS, MSDS, CNAS

Lead Time

3-7 Days

Payment

T/T, L/C,Western Union

Warranty

5 Years

To build a battery bank:

- 4 batteries in series = 12V (12.8V), 206Ah

- 8 batteries in series = 24V (25.6V), 206Ah

- 12 batteries in series = 36V (38.4V), 206Ah

- 16 batteries in series = 48V (51.2V), 206Ah



It is highly recommended to use a smart BMS along with

a temperature sensor, as this will ensure safety while also

prolonging the life of the battery pack.

Introducing our high-capacity industrial lithium cell, designed with advanced LiFePO4 technology for maximum safety and efficiency. Boasting a 206Ah capacity and a nominal voltage of 3.2V, this cell operates within a voltage range of 2.8V to 3.65V. It is perfect for a variety of traction applications, including use in passenger vehicles, and excels in stationary energy storage systems.



3.2v 206ah LiFePO4 Cells Feature:

  • Safety measures must meet international standards like UL, CE, EN62133, etc.

  • It is light, small-sized, highly energy dense and long cycle life ≥6000.

  • Customized production caters to diverse customer needs through independent development and design.

  • Wide operating temperature range, stable performance under high and low temperatures.

  • There are various cell types available for selection which makes it suitable for many different product fields.



Accessory specifications
Busbars: 90*20*2mm or 100*20*2mm
(We offer two options for busbars; for additional details, please contact us.)

Screw Size: M6
1 Battery Kit: Includes 1 busbar, 2 nuts, and 2 screws

For 4 Battery Kits: You'll receive 4 busbars, 8 nuts, and 8 screws.
(If you require more, please reach out to us via our online support.)

3.2v 206ah lithium iron phosphate battery cells accessory

Notes.

  • Do not submerge the battery in water.

  • Ensure correct polarity when inserting batteries; align the (+) and (-) properly.

  • Do not open, burn, heat, or short-circuit it.

  • Avoid exposing the battery to long periods of sunshine.

  • Keep new batteries separate from old ones.

  • Batteries should be kept away from children.

206ah lithium ion batteries3.2v 206ah lifepo4 rept3.2v 206ah battery cells

3.2v LiFePO4 battery cells Supplier

We package lithium battery cells with top and bottom cushioning using foam to secure the product in place during transportation, preventing any damage.



Tags:



Nominal Capacity

206Ah

Operating Voltage

2.5~3.65V

Internal Resistance

≤0.40mΩ

Shipping Capacity

3~30% SOC

Operating Temperature(Charging)

0~60℃

Operating Temperature (Discharging)

-20~60℃

Standard charging current

0.5C

Standard charging voltage

3.65V

Maximum Discharging Current (Continuous)

1C

Standard discharge current

0.5C

Maximum Discharging Current (Continuous)

1C

Maximum Pulse Discharging Current (Long Pulse)

2C

Maximum Pulse Discharging Current (Short Pulse)

3C

Storage Humidity

< 70%

Battery Weight

4.0Kg

Shell Material

Aluminum

Cell Size

174*54*207mm

Cycled Capacity (80%DOD)

6000cycles (0.5C, 25±2℃)
