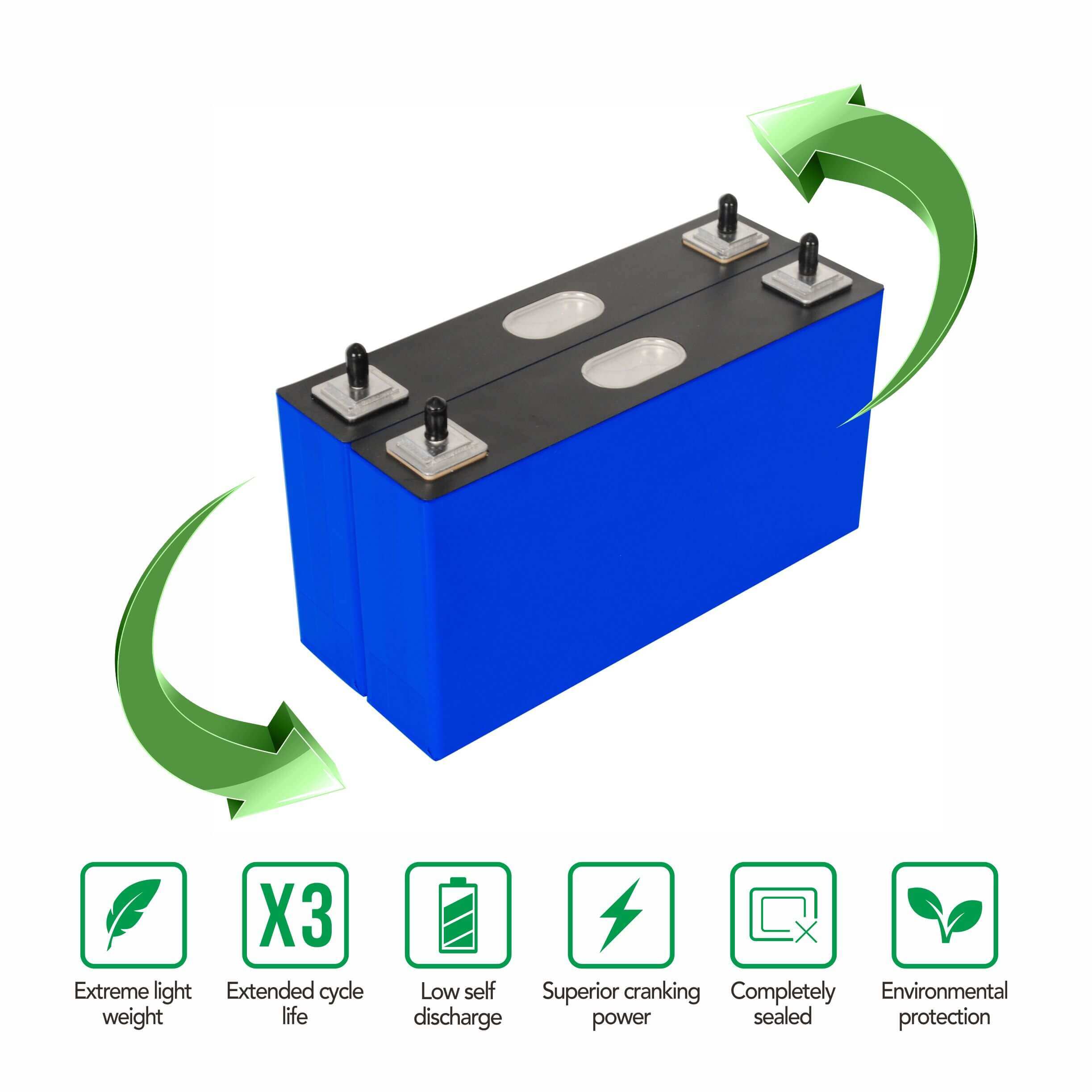

LiFePO4 Prismatic cells are constructed using large sheets of anodes, cathodes, and separators, which are layered, rolled, and compressed to fit within a metallic or rigid plastic housing in a cubic configuration. Alternatively, the electrodes can be assembled through layer stacking. Lithium prismatic cells come in single-row or two-row modules, with the arresters consistently positioned on the same side, regardless of the row.
These cells can be connected using adhesive bonding through welding, with busbars and support plates, or traction/form-fit connections involving screwing or latching. Another method is utilizing hole-busbars as a bridge. Additionally, prismatic cells can be affixed through gluing, requiring a lightweight and flexible joining medium to prevent the formation of air pockets.
Advantages of LiFePO4 Batteries:
High capacity and consistent discharge voltage.
Extended operational duration with top-notch performance.
Compact and lightweight design.
Excellent discharge characteristics and minimal internal resistance.
No memory effect, outstanding discharge capability, and resilience to high loads and temperatures.
Environmentally friendly for pollution-free operation.
Guaranteed authenticity as an original li-ion rechargeable battery.
Equipped with built-in anti-explosion and circuit protection.

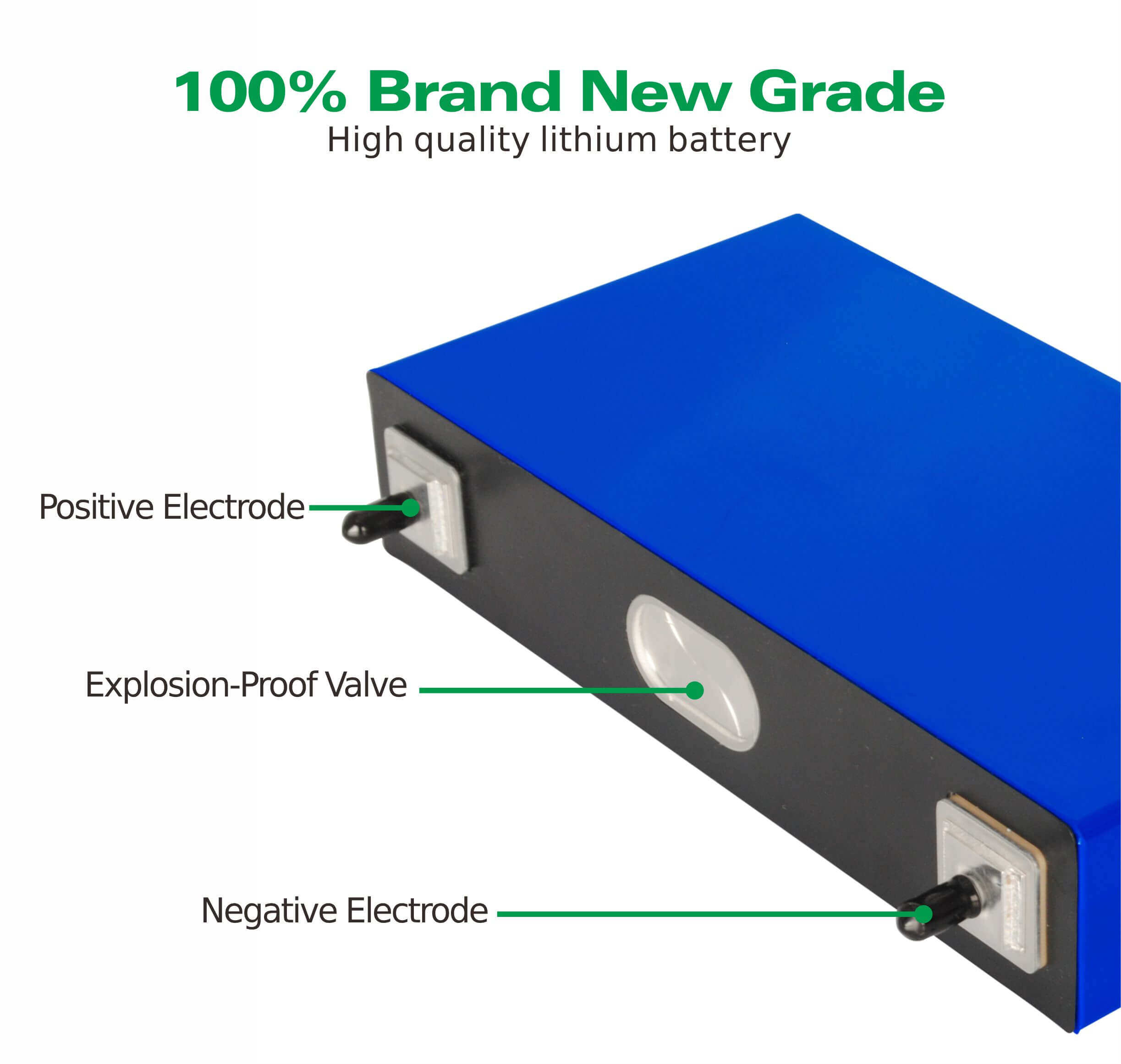

Features an explosion-proof valve: In the event of high temperatures, short-circuits, or other accidents, the internal pressure will release through the valve, preventing potential fires or explosions.
Accessory specifications Busbars: 90*20*2mm or 100*20*2mm
(We offer two options for busbars; for additional details, please contact us.)
Screw Size: M6
1 Battery Kit: Includes 1 busbar, 2 nuts, and 2 screws
For 4 Battery Kits: You'll receive 4 busbars, 8 nuts, and 8 screws.
(If you require more, please reach out to us via our online support.)
Notes:
Do not submerge the battery in the water.
Do not insert batteries with the (+) and (-) reversed.
Do not disassemble, dispose in fire, heat or short circuit.
Do not expose batteries to sunlight for long time.
Do not mix fresh batteries with used batteries.
Do not keep batteries close to baby.

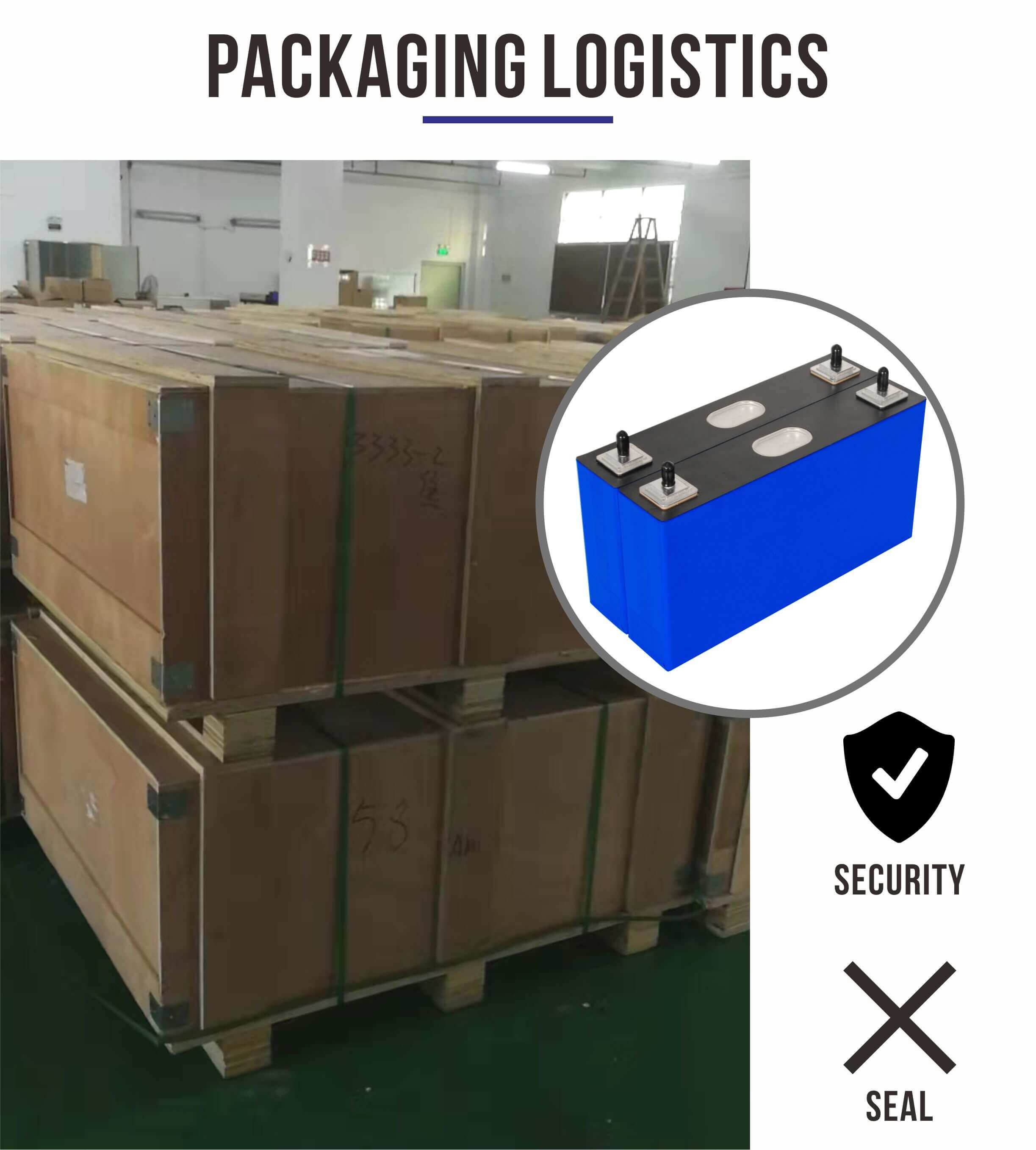

Battery Packaging
Our batteries are meticulously packaged to guarantee safe and intact delivery to you:
We employ high-density custom foam to reinforce the battery.
We utilize a five-layer export-grade corrugated carton for hazardous materials.
We incorporate insulating tape to separate the positive and negative terminals.
Each cell is labeled with test data before shipping.
Upon request, we offer wooden packing for shipping to accommodate customer preferences.
Rest assured that our special cardboard boxes for hazardous materials, cushioned with thickened foam cotton, ensure the battery's pristine condition and safe arrival.
Tags:
Model NO.
NG134
Nominal Capacity(AH)
134AH
Nominal Voltage(V)
3.2V
Standard Charge Current(A)
0.5C
Maximum Charge Current(A)
1C
Impedance(Ω)
0.2mΩ
Max. Discharge Current(A)
2C
Max.Charge Voltage(V)
3.65V
Discharge Cut-off Voltage(V)
2.5V
Charge Working temp.(ºC)
0~55ºC
Discharge Working Temp.(ºC)
-20~55ºC
Cycle Life
6000 Cycles

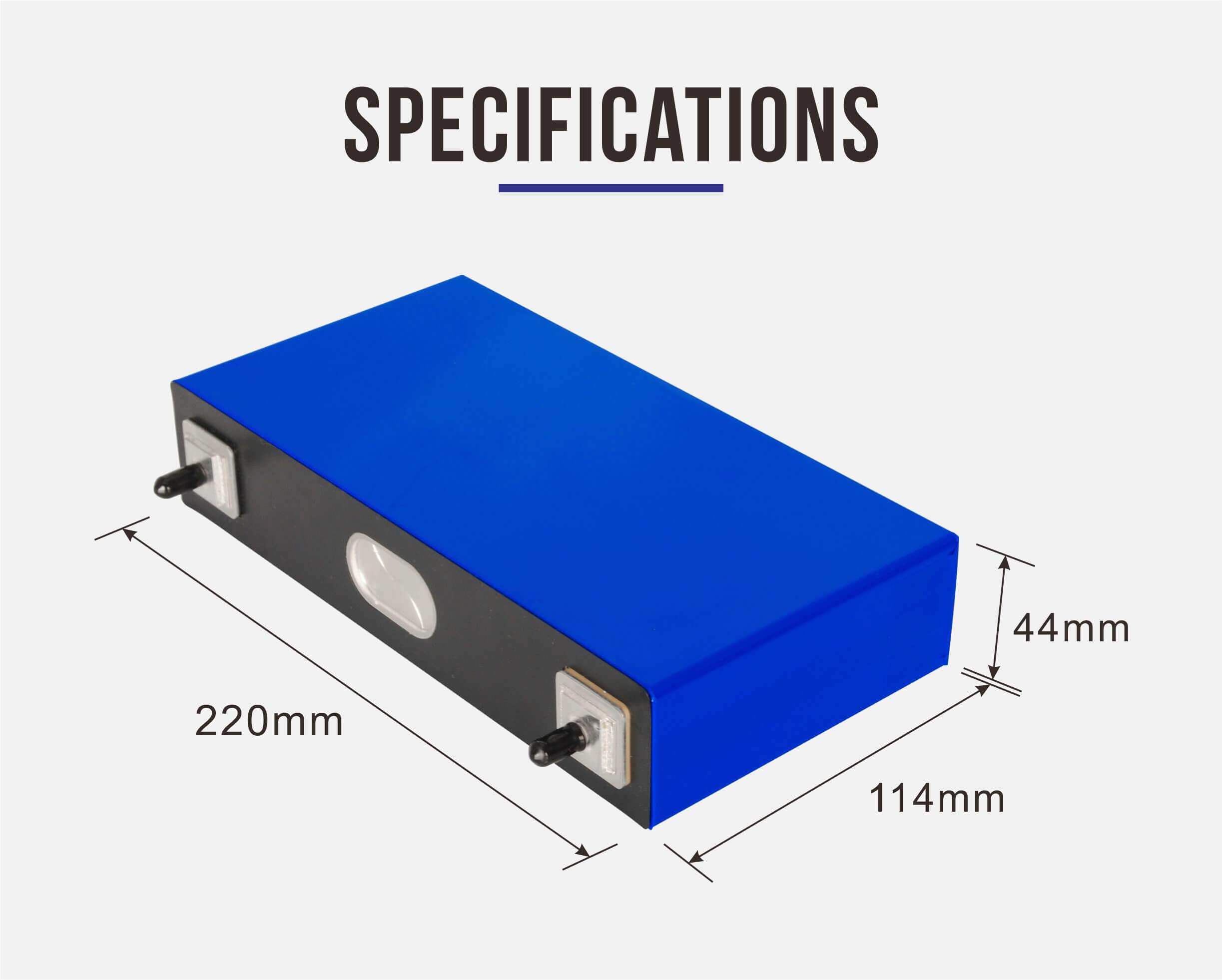

Size
220*114*44mm
In areas without access to city power, the battery pack can be charged using solar panels for nighttime lighting.
In regions with expensive city power, the battery pack can be charged during off-peak hours and used during peak periods.
In areas prone to intermittent power outages, the battery pack serves as a UPS, safeguarding against data loss from sudden power cuts.
Additional Applications:
Electric vehicles (EVs), e-scooters, electric golf carts, and electric vacuum sweepers.
Electronic toys, model airplanes, and remote controls.
Communication devices such as cordless telephones and intercoms.
Medical equipment and consumer electronics.
Decorative lighting, solar lamps, torches, emergency lights, solar street lights, power supplies, and more.
