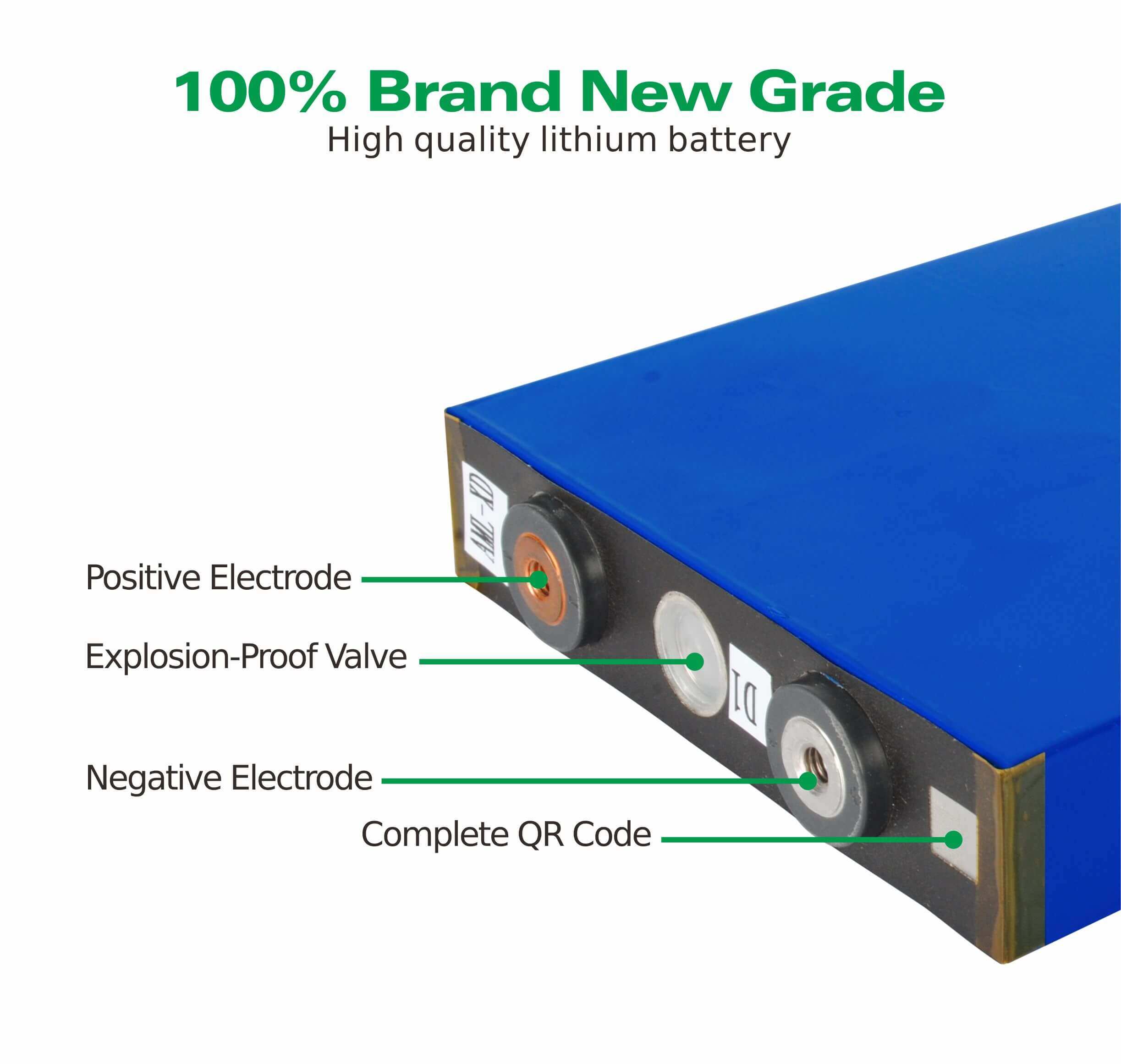

The 72Ah LFP prismatic cell, also known as the lithium iron phosphate battery (LiFePO4 battery cell), utilizes lithium iron phosphate (LiFePO4) as the cathode material and carbon as the negative electrode material. Each individual cell is rated at 3.2V, with a capacity of 72 ampere-hours (Ah) and a charging cut-off voltage ranging from 3.6V to 3.65V.
Accessory specifications
Busbars: 90*20*2mm or 100*20*2mm
(We offer two options for busbars; for additional details, please contact us.)
Screw Size: M6
1 Battery Kit: Includes 1 busbar, 2 nuts, and 2 screws
For 4 Battery Kits: You'll receive 4 busbars, 8 nuts, and 8 screws.
(If you require more, please reach out to us via our online support.)
NOTE:
Free busbars, bolts, and washers will be provided for each Cell. (e.g. 4 Cells will come with 4 sets of busbars + bolts + washers).
The BMS will strictly monitor, control, and protect each cell's usage.
Always charge the cells to full voltage before initial use.
We will ensure all cells are matched (in capacity, voltage, and resistance) before delivery.
This battery is ideal for experienced DIY enthusiasts.

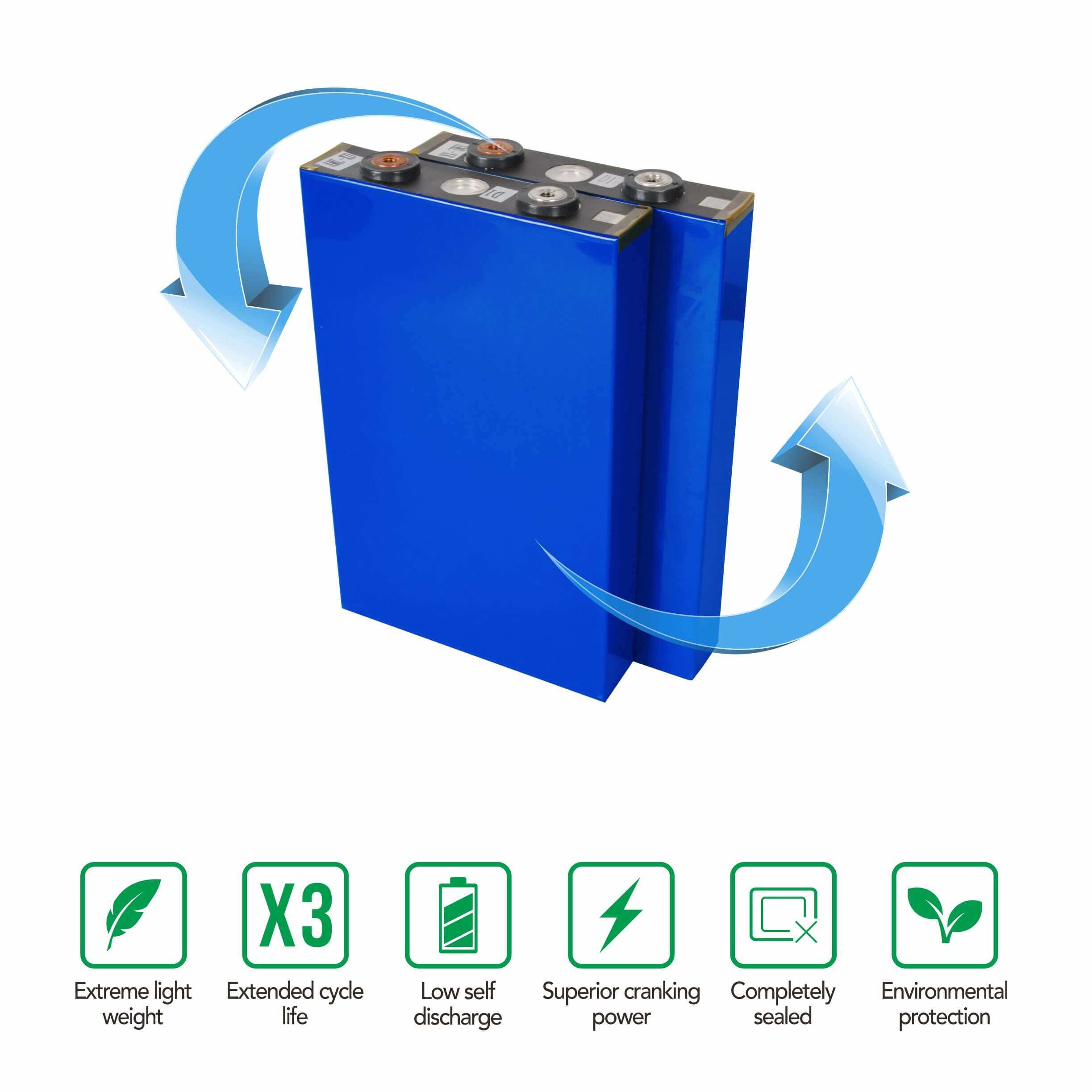

Product Features:
Enhanced safety and stability: No toxic or polluting elements, no rare earth metals, no risk of explosion or fire.

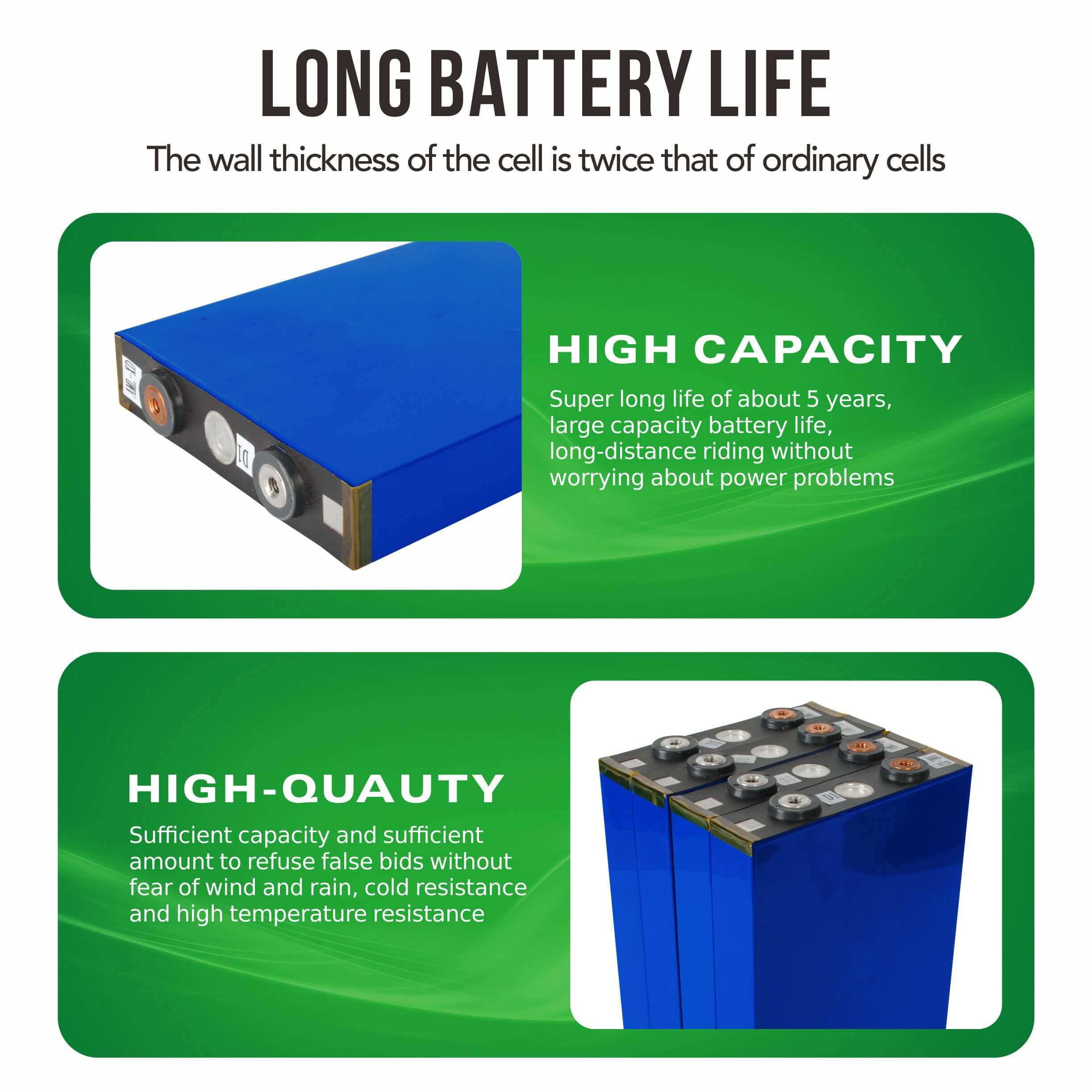

Extended service life: Lasts up to 10 times longer, with 4000-6000 cycles.
1/4 the weight of lead-acid batteries.
Suitable for a wide temperature range from -20 to +75°C.
No memory effect. Can be charged as needed without loss of capacity.
Perfect for RVs, ships, home storage, and telecommunications (base station battery).
Tags:
Model NO.
NG72
Nominal Capacity(AH)
72AH
Nominal Voltage(V)
3.2V
Standard Charge Current(A)
0.5C
Maximum Charge Current(A)
1C
Impedance(Ω)
0.2mΩ
Max. Discharge Current(A)
2C
MAX.Charge Voltage(V)
4.3V
Min.Charge Voltage(V)
3.65V
Discharge Cut-off Voltage(V)
2.5V
Charge Working temp.(ºC)
0~55ºC
Discharge Working Temp.(ºC)
-20~55ºC
Cycle Life
6000 Cycles

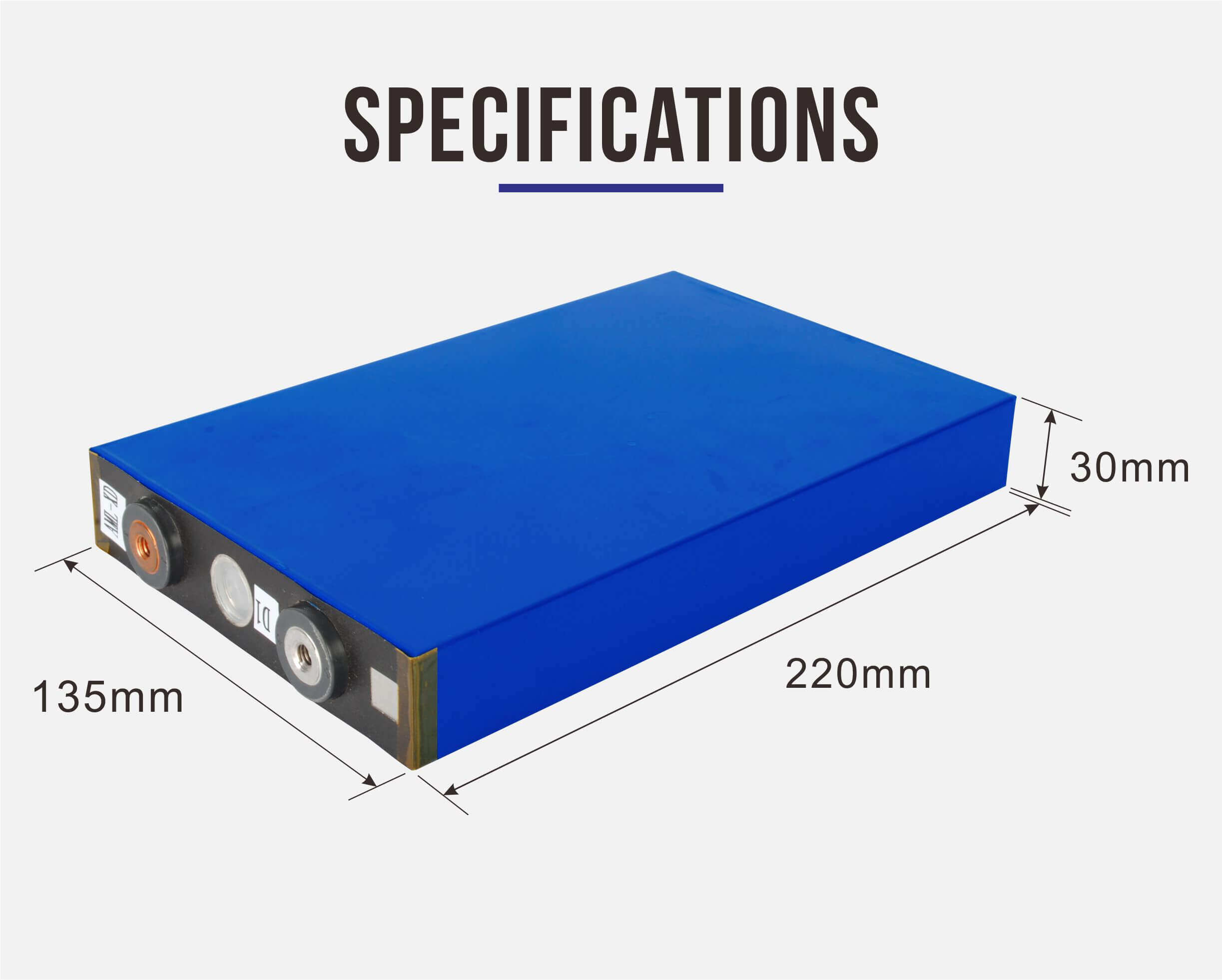

Size
135*220*30mm
Household Solar Energy System: LiFePO4 battery cells provide exceptional safety, durability, and efficiency, making them a reliable and eco-friendly choice for home solar power. They enable energy independence, backup during outages, and cost savings for homeowners.
Portable Electronics: These batteries power a wide array of portable devices, including smartphones, laptops, tablets, and digital cameras. Their lightweight design is well-suited for these applications, offering high power in a compact package.
Business & Commercial: LiFePO4 batteries are commonly employed in business and commercial applications, including alarm systems, solar panel systems, and security lighting, ensuring dependable power supply.
Marine Applications: With their lightweight and high-power capabilities, LiFePO4 batteries are the preferred choice for propelling fishing boats and kayaks.
Industrial Settings: LiFePO4 batteries excel in industrial environments due to their ability to endure high temperatures and maintain charge over extended periods. They are the ideal choice for powering machinery and equipment in such settings.
