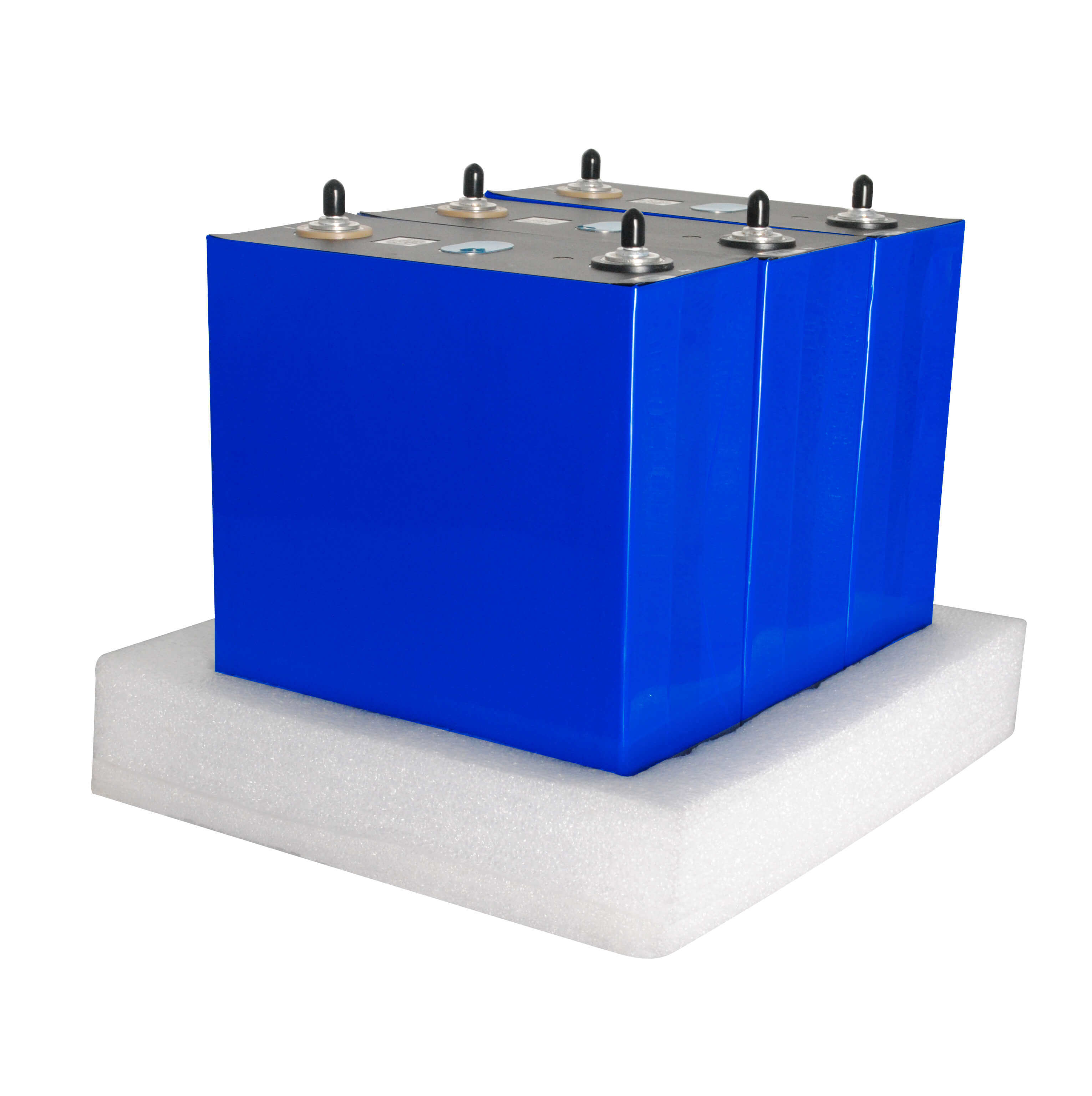

Genuine LiFePO4 Battery Cells, rated at 3.2V and 340Ah, offer extended lifespan and nearly double the runtime of typical Li-ion batteries. These Grade A+ cells come with a Multi-Protect Safety System for your peace of mind.

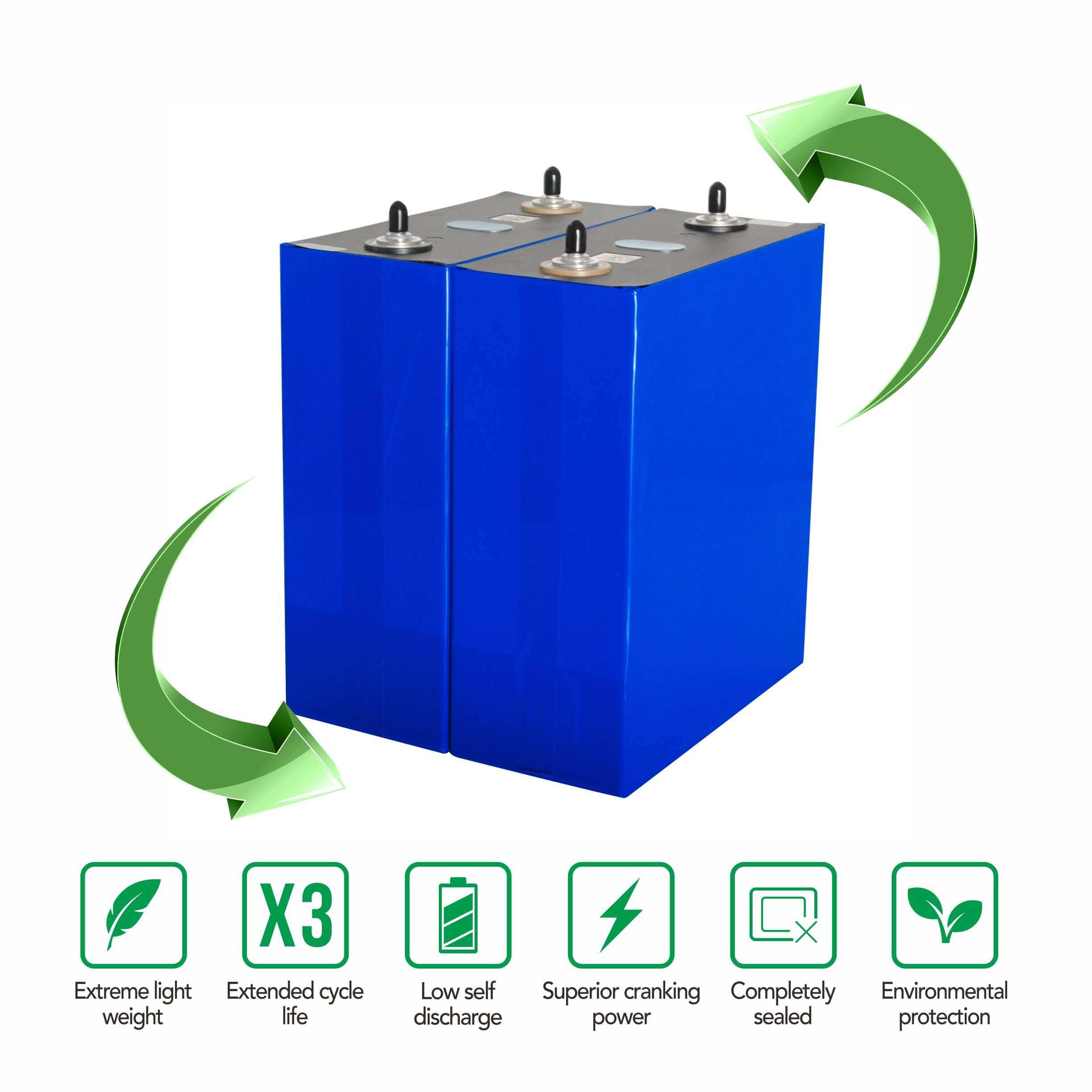

Advantages of LiFePO4 battery
Long cycle life:>6000times cycles,100%DOD.
Small size and light weight:LiFePO4 battery size and weight is 1/3 of Leadacid battery
<1% low self-consuming rate
LiFePO4 battery price is 2.5 times of lead acid battery
With advanced BMS,like CANBUS,SMBUS,RS485,RS232,UART, commu-nication system.
Built-in automatic protection for over-charge, over discharge, over current andover temperature control.
Can be charged using most standard lead-acid charges.
Green eneygy to protect our world better.
Accessory specifications Busbars: 90*20*2mm or 100*20*2mm
(We offer two options for busbars; for additional details, please contact us.)
Screw Size: M6
1 Battery Kit: Includes 1 busbar, 2 nuts, and 2 screws
For 4 Battery Kits: You'll receive 4 busbars, 8 nuts, and 8 screws.
(If you require more, please reach out to us via our online support.)
Notes.
Please refrain from immersing the battery in water.

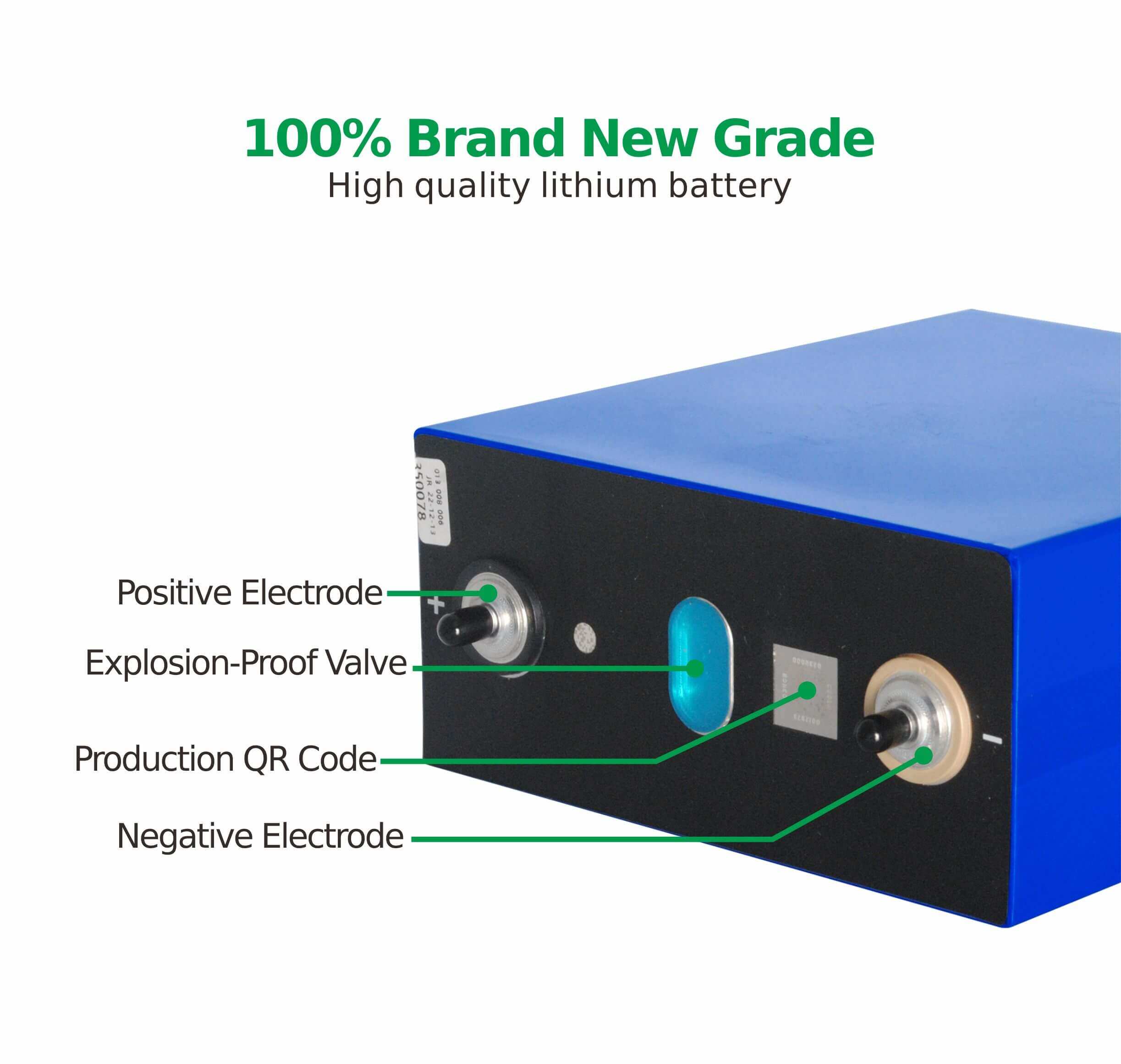

Ensure correct polarity when inserting batteries; align the (+) and (-) properly.
Avoid disassembly, disposal in fire, exposure to heat, or short-circuiting.
Limit battery exposure to prolonged sunlight.
Avoid mixing new batteries with used ones.
Keep batteries out of reach of children.
Tags:
Model NO.
NG340
Nominal Capacity(AH)
340AH
Nominal Voltage(V)
3.2V
Standard Charge Current(A)
0.5C
Maximum Charge Current(A)
1C
Impedance(Ω)
0.2mΩ
Max. Discharge Current(A)
2C
Max.Charge Voltage(V)
3.65V
Discharge Cut-off Voltage(V)
2.5V
Charge Working temp.(ºC)
0~55ºC
Discharge Working Temp.(ºC)
-20~55ºC
Cycle Life
4000 Cycles
Size
147*90*21mm
Household Solar Energy System: LiFePO4 battery cells provide exceptional safety, durability, and efficiency, making them a reliable and eco-friendly choice for home solar power. They enable energy independence, backup during outages, and cost savings for homeowners.
Portable Electronics: These batteries power a wide array of portable devices, including smartphones, laptops, tablets, and digital cameras. Their lightweight design is well-suited for these applications, offering high power in a compact package.
Business & Commercial: LiFePO4 batteries are commonly employed in business and commercial applications, including alarm systems, solar panel systems, and security lighting, ensuring dependable power supply.
Marine Applications: With their lightweight and high-power capabilities, LiFePO4 batteries are the preferred choice for propelling fishing boats and kayaks.
Industrial Settings: LiFePO4 batteries excel in industrial environments due to their ability to endure high temperatures and maintain charge over extended periods. They are the ideal choice for powering machinery and equipment in such settings.
