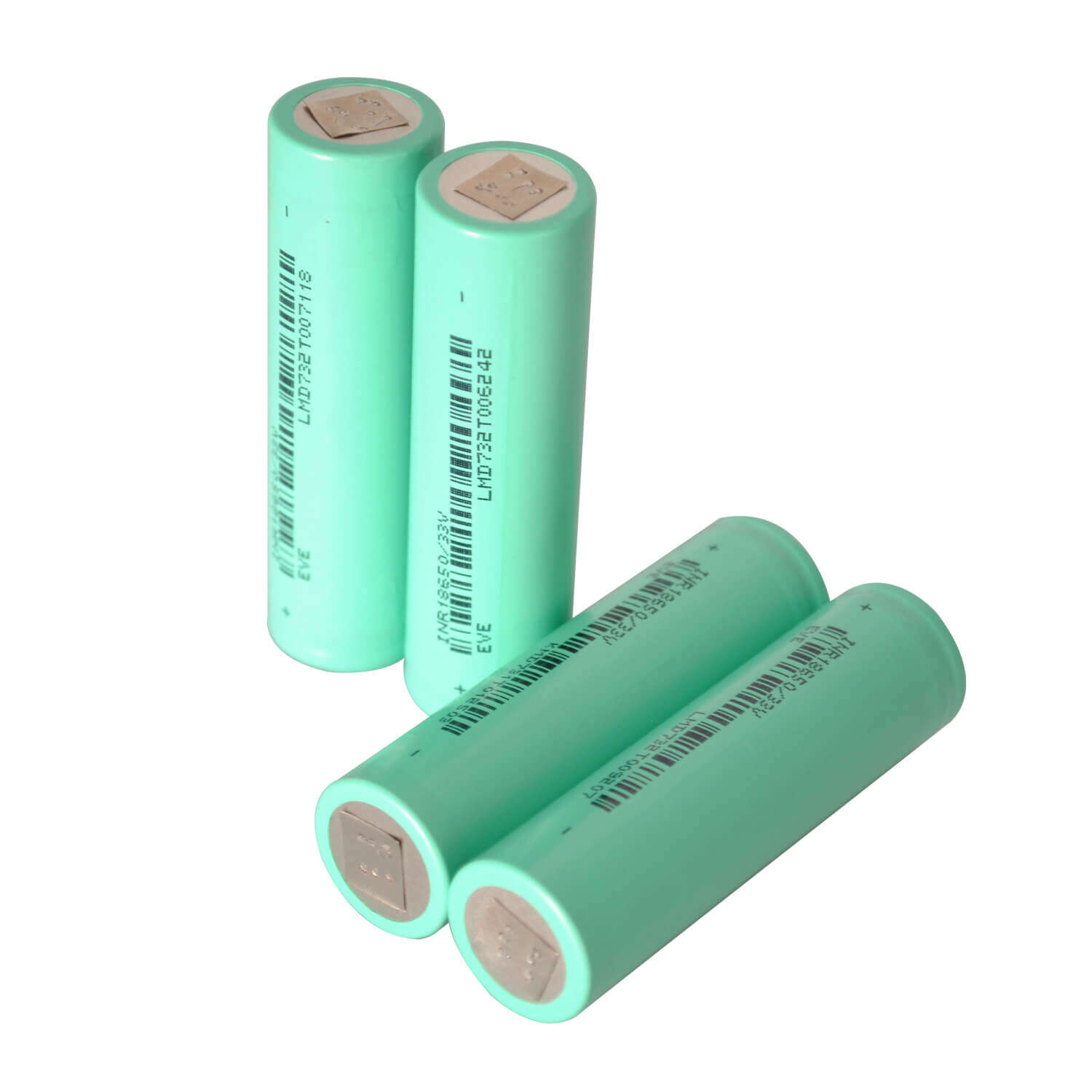

The cylindrical cell of the lithium-ion battery cell EVE Energy INR18650-33V is a high-precision, physical battery model with global validity.
Type |
18650 INR Lithium Battery Cell |
Max.Power |
3.6V 3200mah |
Brand |
EVE |
Certificate |
CB, UN38.3, BIS, UL, PSE, RoHS |
Lead Time |
10 Days |
Payment |
T/T, L/C,Western Union |
Warranty |
25 Years |
EVE 18650 cells are a reliable, top-of-the-line option for powering your device. EVE batteries feature the best capacity ratings on the market thanks to their patented EVE Long Life Technology, so you can depend on these cells to provide lasting power and performance. With EVE 18650 cells, you're guaranteed a battery that won't overheat or have shortened lifespan due to memory effect, as well as extended storage life and exceptional cycle life properties. Trust EVE for all of your battery needs.
These EVE 33V 18650 batteries are grade A cells and not rebranded. They perform better than the LG MJ1 and as well as the very popular Sanyo NCR18650GA. This makes these cells ideal for battery packs due to their consistent SoC (State Of Charge) voltage, internal resistance, capacity and performance.
External charger is recommended for optimal balanced charging, speed and safety.(Guidelines for use)
Batteries will only have test charge. Ensure batteries are fully charged to reach full capacity. Failure to do so may lead to long term cell issues.
This cell is unprotected and intended for use in protected battery packs. In order to operate safely it must have additional protection in the form of a protection circuit board or a Battery Management System.
Tags:
Model No. |
EVE-INR18650/33V |
|
Typical Discharge Capacity |
3200mAh |
|
Minimum Discharge Capacity |
3100mAh |
|
Typical Voltage |
3.60V |
|
Standard Charge |
CCCV, 0.5C (1550mA), 4.20± 0.05V, 62mA cut-off |
|
Rapid Charge |
CCCV, 3100mA, 4.20± 0.05V, 62mA cut-off |
|
Standard Discharge |
DC, 620mA, 2.50V cut-off |
|
Max. Continuous Discharge |
DC, 10A, 2.50V cut-off |
|
Charge/Discharge Voltage Range |
4.20~2.50V |
|
Cell Weight |
46.0± 2.0g |
|
Cell Dimensions |
Height: 65.00±0.15mm |
|
Operation Temperature |
Discharge: -20 to 60°C |
|
Charge: 0 to 15 °C |
≤ 0.2C (620mA) |
|
Charge: 15 to 50 °C |
≤ 1.0C (3100mA) |
|
Storage Temperature |
1 year |
0~25°C |
3 months |
0~45°C |
|
1 month |
0~60°C |
NO. |
Part Name |
Material |
Q’Ty |
1 |
Cell |
Cylindrical |
200 pcs/box |
2 |
Packing Guide |
Manila |
36 pcs/box |
3 |
Box(Packing Case In) |
SW |
2 pcs/box |
4 |
Silicagel |
Si |
2 pcs/box |
5 |
Bag PE |
PE |
1 pcs/box |
6 |
Box(Packing Case Out) |
SW/DW |
1 pcs/box |
7 |
Tape |
PE |
0.01 rol/box |
8 |
Product Label |
Art Paper |
1 pcs/box |
