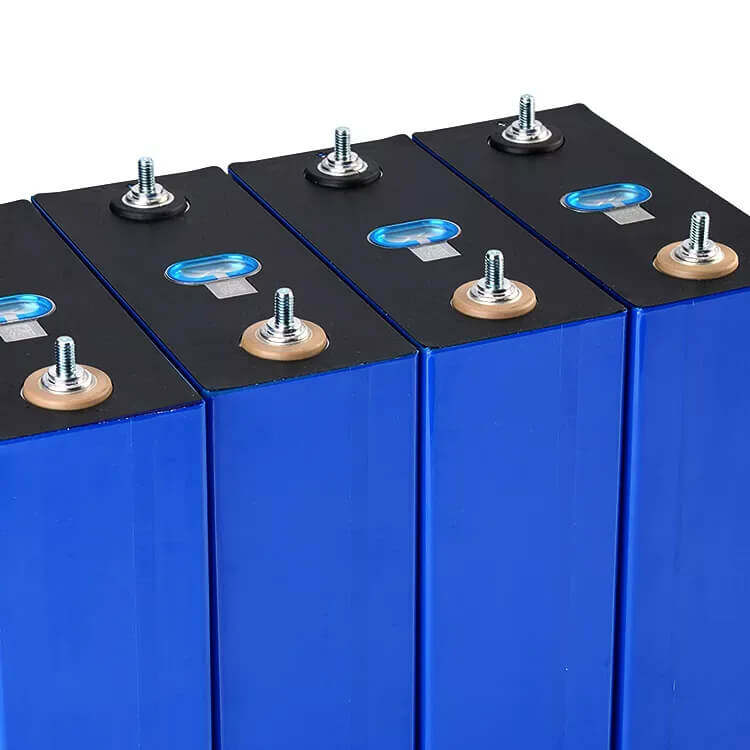

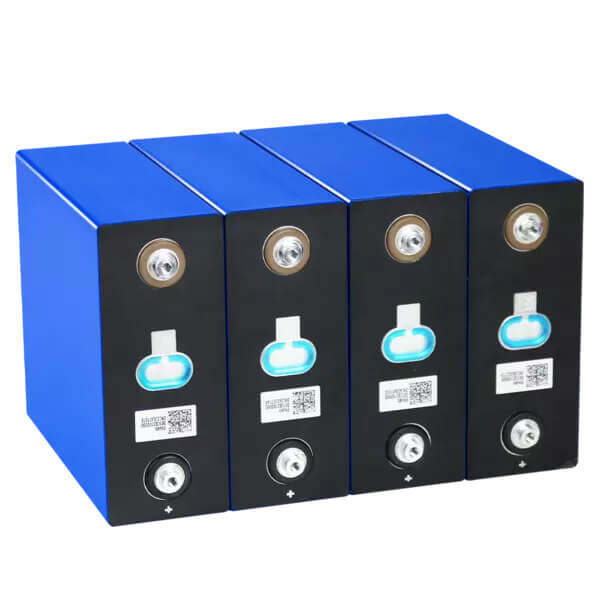

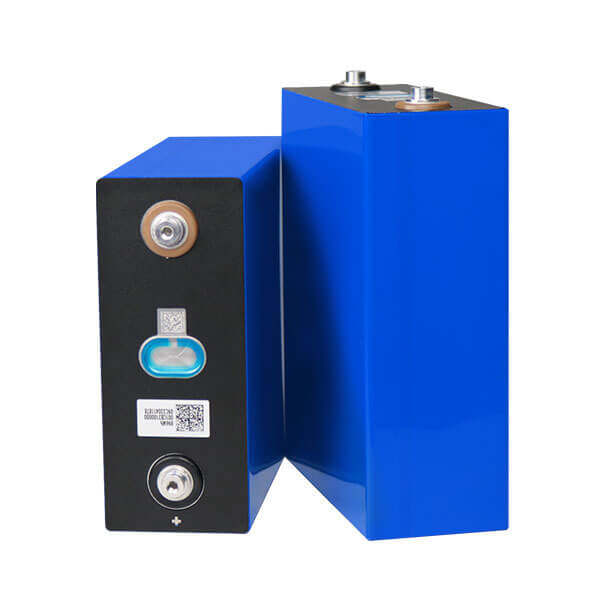

Neexgent CATL 3.2v 280ah Grade A Prismatic Lifepo4 Battery Cell for DIY Battery Pack
Type
CATL 280Ah LiFePO4 Cells
Specification
3.2V 280Ah
Brand
CATL
Certificate
SGS, UN38.3, CE, RoHS, MSDS, CNAS
Lead Time
3-7 Days
Payment
T/T, L/C,Western Union
Warranty
5 Years
☑ Affordable option for DIY projects ☑ Premium 100% Grade A cells ☑ Over 6000 deep cycles with a 5-year warranty ☑ Versatile for various applications ☑ Ideal replacement for AGM, GEL, and SLA batteries ☑ Includes free accessories: connecting strips, nuts, washers, and more
The CATL 3.2V 280Ah LiFePO4 battery is a high-performance, reliable, and safe energy storage solution suitable for various applications such as RVs, solar systems, and backup power systems. With over 6000 cycles and exceptional energy density, this battery ensures long-lasting power for your off-grid adventures. Its superior safety features minimize the risk of overheating, explosion, or fire, making it a stable and secure choice for all your energy needs.
CATL 280AH LiFePO4 Battery Cells Feature:
Long Cycle Life: Over 6000 cycles, 5-15 years lifespan.
Portable & Safe: High energy density, compact, lightweight, and chemically stable.
Good Discharge Performance: Stable and tolerant at high temperatures.
Lead-Acid Battery Alternative: Lasts 8-10 times longer, safe with built-in safety valve.
Quality Control: Each battery is selected and matched for stability.
Uniform Specifications:
High Tensity

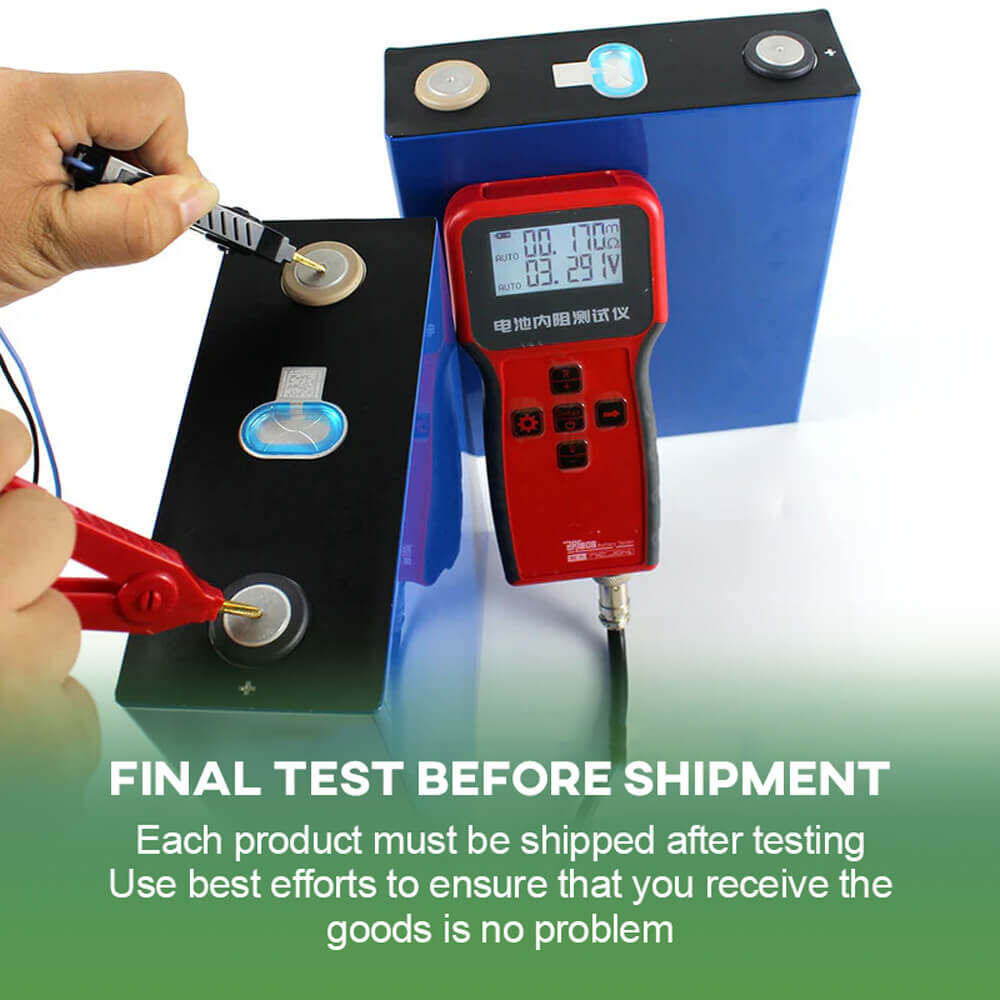

Voltage Test: The shipment voltage margin of each order is less than 0.01V.
Resistance Test: Shipment resistance margin of all cells is lower than 0.05mΩ.
Note: Specific model parameters vary; the picture below is just one example.
High Consistency
Capacity Test: Error margin not exceeding 2%, above nominal capacity.
Note: Specific model parameters vary, the picture below is just one example
Application and Connection
Applicable to RVs, vans, campervans, boats, yachts, trolling motors, golf carts, electric wheelchairs, trucks and solar banks etc.
The battery cell is actually a raw material for assembling battery packs, which also require BMSs, cases and other accessories.

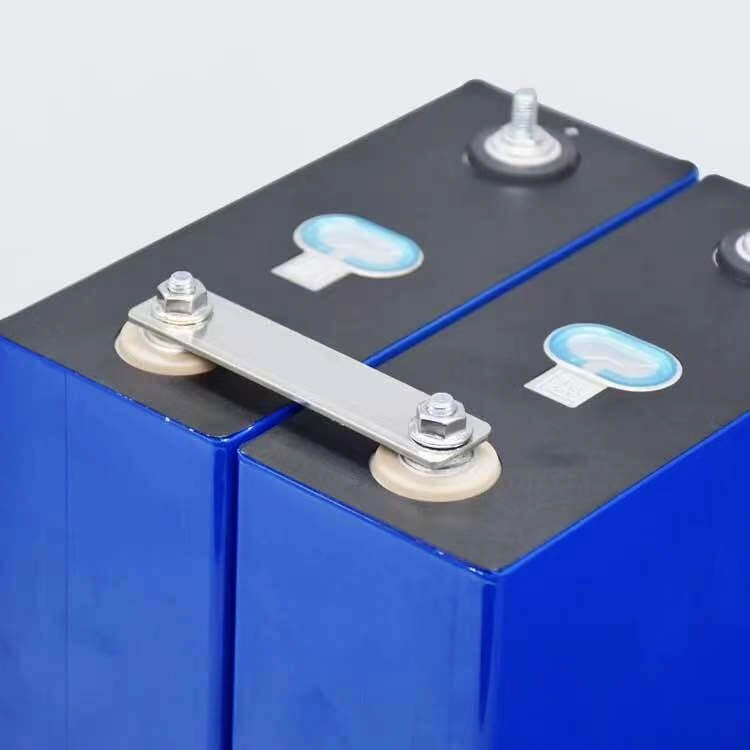

Other Accessories: Epoxy plates, busbars, screws.
Busbar screw size: M6
1 Battery Kit: Includes 1 busbar, 2 nuts, and 2 screws
For 4 Battery Kits: You'll receive 4 busbars, 8 nuts, and 8 screws.
(If you require more, please reach out to us via our online support.)
More Preparation: Tape, waterproof glue and others.
This battery cell can be united to form different LiFePO4 battery packs:
☑12V battery pack: 4 cells
☑24V battery pack: 8 cells
☑48V battery pack: 16 cells
☑60V battery pack: 19 cells
☑72V battery pack: 23 cells
☑96V battery pack: 30 cells
We package lithium battery cells with top and bottom cushioning using foam to secure the product in place during transportation, preventing any damage.
Tags:

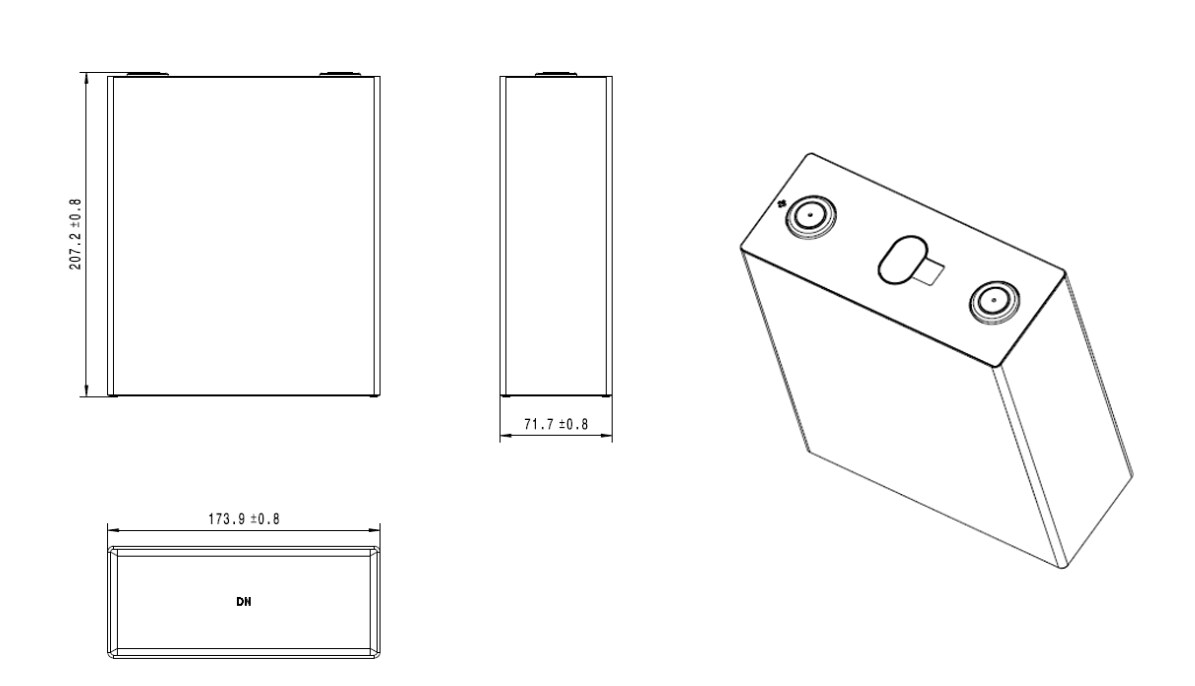

Unit: mm
Electrical specification
Parameter
Specification
Condition
Typical capacity
280 Ah
Typical Energy
896 Wh
Operating voltage
2.5~3.65V
Cell temperature T>0°C
2.0~3.65V
Cell temperature T≤0°C
Impedance (1KHz)
0.17±0.05mΩ
Fresh cell （40%SOC）
Shipping capacity
112±1Ah
40% SOC
Residual capacity
Per month ≤3.0%
Fresh cell after 3month, 40%SOC, 25±2°C storage
Operating temperature (charging)
0~60°C
Operating temperature (discharge)
-20~60°C
Cell Weight
5.34±0.30Kg
N.A.
Storage Temp.
-30~60°C
Storage ambient humidity < 85% ROH, no condensation

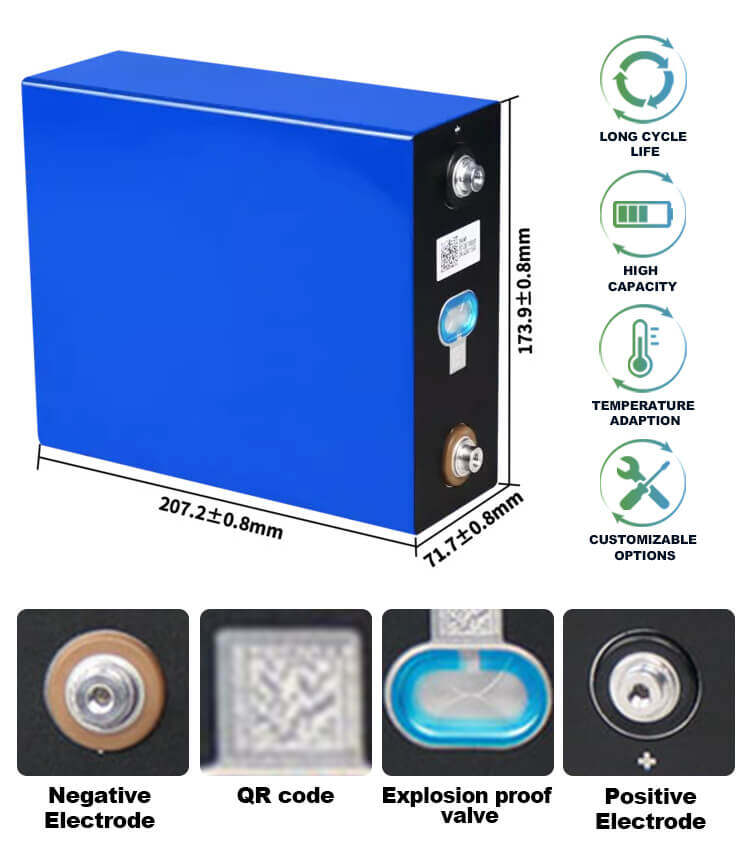

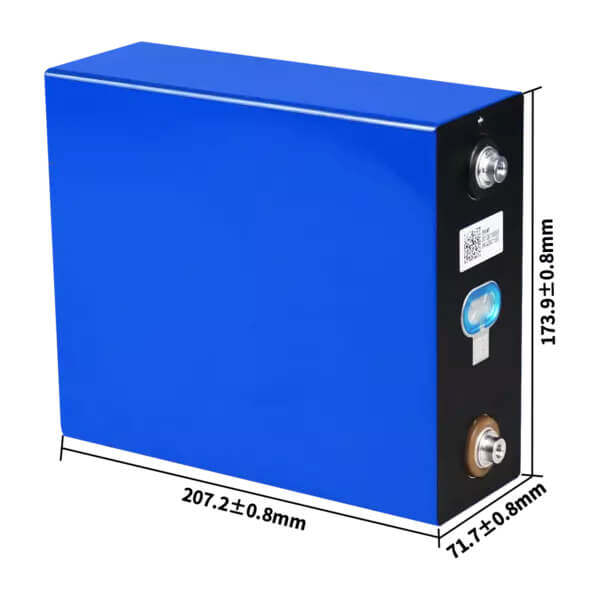

Typical dimension（W*H*T）
Width：173.9±0.8mm
Height：207.2±0.8mm
Thickness：71.7±0.8mm
Rest SOC
≥5%
SOC interval without load or charging
Altitude
≤2000m
N.A.
Cycle performance
≥6000Cycles
25±2°C, cycle test by the standard charge and discharge method under 300±20Kgf preload
Cycle fading
≤5%
25±2°C, cycle test by the standard charge and discharge method under 300±20Kgf preload for 180 cycles
Storage fading
≤5%
25±2°C, standard charging to 100% SOC storage under 300±20Kgf preload for six month
Standard charge Power
0.25P
25±2°C
Standard charge voltage
Cell max voltage 3.65V
N.A.
Standard charge method
0.25P constant power charge to 3.65 V, rest 5min, 0.1P constant power charge to 3.65V
Standard charge temperature
25±2°C
Cell Temperature
Absolute charging temperature（Cell Temperature）
0~60°C
No matter what charge mode the battery is in, stop charging once the cell temperature exceeds absolute charge temperature range.
Absolute charging voltage
Max 3.65V
No matter what charge mode the battery is in, stop charging once the cell voltage exceeds absolute charge voltage.
Standard discharge power
0.25P
25±2°C
Maximum discharge power(continuous)
0.5P
N.A.
Discharge cut-off voltage
2.5V
（Temp.）T>0°C
2.0V
（Temp.）T≤0°C
Standard discharge temperature
25±2°C
Cell temperature
Absolute discharge temperature
-20~60°C
Capacity@55°C
≥280Ah
Fresh cell，55°C，0.25P，2.5V~3.65V
Capacity@-20°C
≥155Ah
Fresh cell，-20°C，0.25P，2.0V~3.65V
Continuous discharge temperature rise
≤10°C
The cell is discharged in the standard discharge method.
Pulse discharge temperature rise
≤5°C
The cell is discharged at 500A for 10 s under any state of
charge.
Stop charging
3.65V
Stop charging when cell voltage reaches 3.65 V
First overcharge protection
≥3.69V
Stop charging when cell voltage reaches 3.69 V
Second overcharge protection
≥3.8V
When the battery voltage reaches 3.8V, the BMS is forced to terminate charging, and the BMS should be locked until technicians solve the problem.
Stop discharge
Minimum 2.6V
Minimize the discharging current when cell voltage reaches 2.6 V.
First over discharge protection
Minimum 2.5V
Stop discharging when cell voltage reaches 2.5V
Second over discharge protection
Minimum 2.0V
When the cell voltage is less than 2.0V, the cell should be charged back to 50% SOC at 0.1C in time, and the BMS should be locked until technicians solve the problem.
Short circuit protection
No short circuit allowed
When a short circuit occurs, the battery (cell) is disconnected by the overcurrent protection device.
Charging time out limit
Charging completes within 8 hours
Stop charging if changing time exceeds specification
