Type |
Portable Energy Storage |
Max.Power |
1200W |
Output Voltage |
EU And US Standard |
Certificate |
TUV, ISO, CE |
Lead Time |
10 Days |
Payment |
T/T, L/C,Western Union |
Warranty |
25 Years |
Product overview
In the design of this product, a multi-level safety mechanism has been adopted to fully ensure the safety and reliability of the product. It has multi-port AC output and DC output functions. The product is manufactured with integral plastic moulding and has a novel and sophisticated design that is easy to hold and place. The product also features multiple output ports such as AC, DC, Type-C, USB, wireless charging and cigarette lighter, which can power up to 9 devices at the same time. Three charging modes, including solar panel, Type-C and adapter. Also has a wide range of application scenarios, including outdoor driving, outdoor camping, outdoor work, etc.
General questions and answers
Q: How long can the product be stored for?
A: It can be stored for up to 6 months when fully charged. It is recommended that it is charged every three months. General questions and answers
Q: Is the product temperature protected?
A: It is protected during charging when the internal temperature is above 55°C.
Q: How long does it take for the product to be fully charged?
A: It takes about 6 hours to charge from 3% to 90% with the original adapter, and about 9 hours to fully charge.
Q: Can I charge the product with both the DC charging port and the usb-c port at the same time?
A: It is possible to charge the product at the same time and the charging time will be shortened.
Q: Can the product be used while charging?
A: It can be used while charging. When the output power is greater than the charging power, the battery power will be reduced.
Q: Does the product switch off automatically?
A: It will not switch off automatically until it is fully discharged. Under normal conditions, it will not automatically switch off when switched on.
Q: Can this product be used to start a car?
A: It cannot be used to start a car directly. However, an alternative charging cable is available to charge the car's starter battery.
Q: When fully charged, the charge percentage and Fu are not displayed in sync or there is an error. Is this normal?
A: Normal image. When fully charged it will display "Fu" but the charge percentage may be 99%.
Charging and discharging
Tags:
Model No. |
NSPX-1200W |
Battery Capacity |
1200mAh/324480mAH |
Charging Time |
≈3.5h (Combination Charging) Simultaneous Charge-and-Discharge Function |
Battery Cell Type |
lithium ion Battery |
Charging Temperature |
-15~40℃ |
Discharging Temperature |
-20~60℃ |
Overload Protection |
Protection Method: 2400W/1S |
Ac Interface Standard Shape |
US/JP/Australia/European/Uk PLUG |
Ac Output Waveform Type |
Pure Sine Wave |
Ac Rated Output Voltage |
US/JP: 100V-120V CN/EU/AU/UK: 220V-240V |
Default Frequency |
US/JP: 60Hz CN/EU/AU/UK: 50Hz |
Cigarette Lighter Interface |
12V/10A |
Solar Input Interface |
Charging Voltage Range:12V~30V |
Usb Interface |
USB-A1*2: 5V/2.4A USB-A2(QC3.0):5V/3A, 9V2A, 12V1.5A |
Usb-c Interface |
PD Interface Bi-directional Charging and Discharging |
Led Light Modes |
1, Always On 2, Medium Brightness 3, Blink Mode 4, SOS Mode |
Combination Charging |
DC100W+PD65W |
Selling Point |
Accurate power control/Cost effective |
Future Upgrade |
Series Products/Bi-directional fast charging (bi-directional inverter) |
Dimensions |
413×203×232mm |

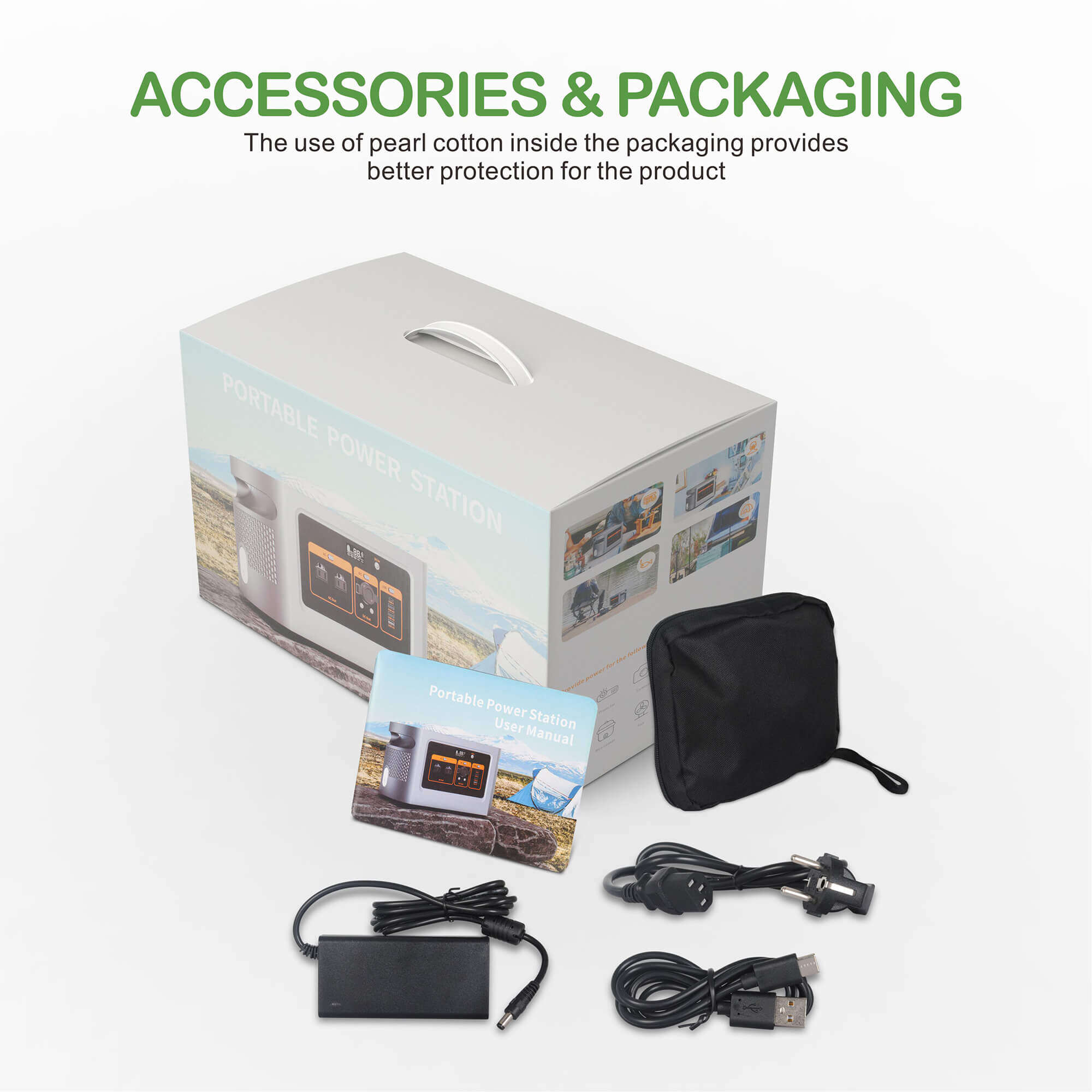

Power station
USB cable
User manual
Adapter
The AC power outlet, AC output voltage and frequency of this product may change depending on the country or region, please refer to the actual product!
1. Display Screen
2. DC charging port
3. AC power switch
4. AC power socket
5. DC switch
6. Car charger port
7. DC output port*2
8. USB switch
9. USB-C
10. USB-A 1
11. USB-A 2 & USB-A 3
12. LED switch (one button to power off)
13. LED lighting
14. Wireless charging
1. Battery level/charging status
2. Remaining battery
3. Discharge time remaining/charge/discharge status
4. High and low temperature protection warning
5. AC output DC output
6. DC output
7. USB output
8. Wireless charging output
9. AC output frequency (60Hz)
