Type |
Portable solar panel |
Power Supply | NO (Purchase separately) |
Customisation | Yes (Customisable 8w-600w) |
Lead Time |
10 Days |
Payment |
T/T, L/C,Western Union |
Warranty |
5 Years |

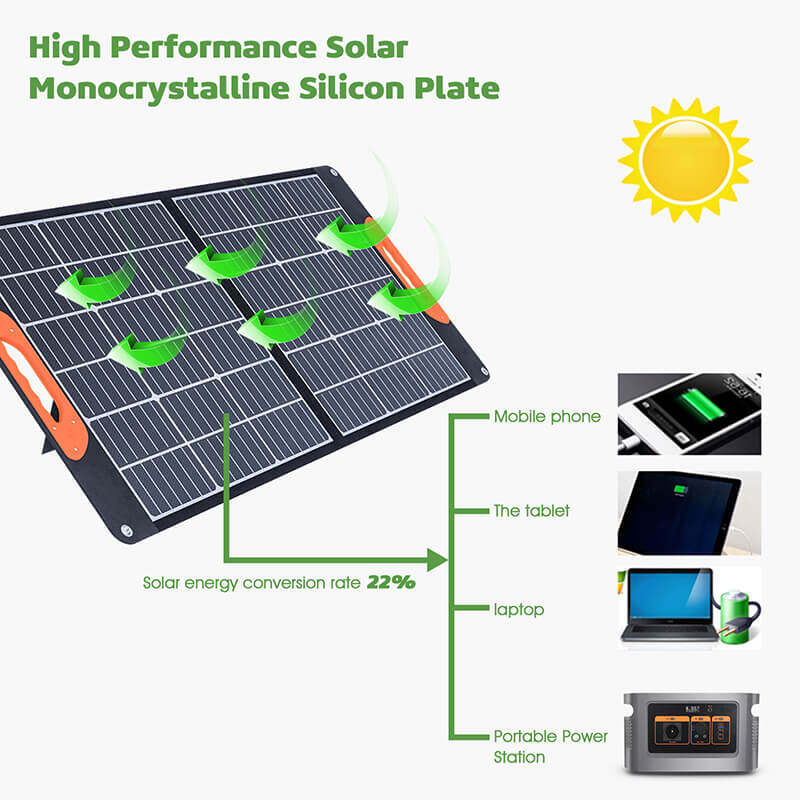

Up to 22% solar energy conversion:
High-performance monocrystalline silicon solar cells offer higher photovoltaic conversion,
lower tube losses and higher output than ordinary solar panels.
Multi-Output Devices:
The solar panel provides QC3.0, USB (2.4A) and Type-C outputs, DC outputs.
Foldable and portable design:
Folding solar panel is easy to carry. When in use, unfold the rear stand and adjust
the angle of the solar panel to get 25% more light than tiles.
Adjustable bracket:
The solar bracket can be used to adjust the angle of the solar panel to achieve better
charging effect, convenient and fast
IPX5 waterproof and dustproof:
Adapt to all kinds of harsh environments, in extreme outdoor scenarios, it can provide
you with stable power output.
The transmittance of ETFE film is up to 95%:
The solar panel surface covered with ETFE film can reduce the overall weight and effectively
improve the product's heat resistance, deformation resistance, high pollution resistance,
self-cleaning and other practical functions.
Tags:
Product Model |
NX-FSP-100W-18V-ETFE-2Z |
NX-FSP-100W-18V-ETFE-4 |
NX-FSP-150W-18V-ETFE-4Z |
NX-FSP-200W-18V-ETFE-4Z |
Peak Power |
100W |
100W |
150W |
200W |
USB-1 Output |
5V/2.4A |
5V/2.4A |
5V/2.4A |
5V/2.4A |
USB-2 Output |
5V/3A9V/2A 12V/1.5A(QC3.0-18W) |
5V/3A 9V/2A 12V/1.5A(QC3.0-18W) |
5V/3A 9V/2A 12V/1.5A(QC3.0-18W) |
5V/3A 9V/2A 12V/1.5A(QC3.0-18W) |
Type-C |
5V/3A 9V/2A12V/1.5A |
5V/3A 9V/2A 12V/1.5A |
5V/3A 9V/2A 12V/1.5A |
5V/3A 9V/2A 12V/1.5A |
DC Output |
18V/5.5A |
18V/5.5A |
18V/8.3A |
18V/11.1A |
Working Temperature |
-10°C-70°C |
-10°C-70°C |
-10°C-70°C |
-10°C-70°C |
Unfold Size |
570*1175*3mm |
447*1645*3mm |
480*2250* 4mm |
570*2280*4mm |
Folded Size |
570*584*6mm |
447*455*12mm |
480*605*16mm |
570*615*16mm |
Weight |
3.8kg |
3kg |
6kg |
6.9kg |
