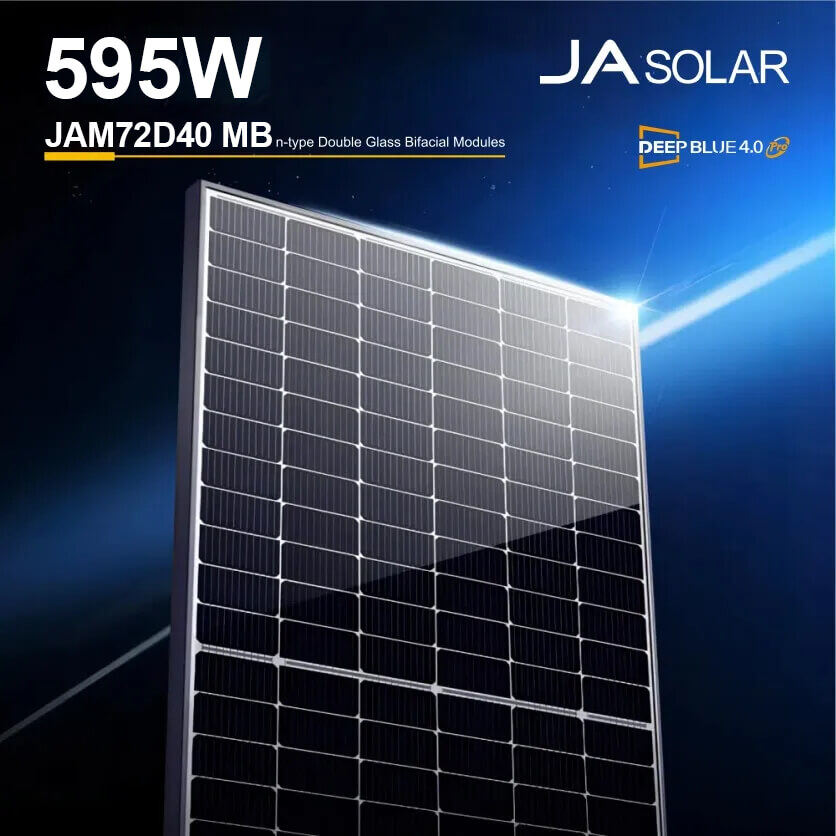

JA Solar 595W JAM72D40 MB N-type Double Glass Bifacial Modules

Model JAM72D40 MB

Type

Half-cut monocrystalline silicon
Series DeepBlue 4.0
Power 570~595W
Brand JA Solar

Lead Time

3-7 Days

Payment

T/T, L/C,Western Union

Warranty

12-year product & 30-year power warranty

Comprehensive Certificates


IEC 61215, IEC 61730, UL 61215,UL 61730

● ISO 9001:2015 - Quality Management

● ISO 14001:2015 - Environmental Management

● ISO 45001:2018 - Occupational Health and Safety

● IEC 62941:2019 - PV Module Manufacturing Quality

JA Solar 595W JAM72D40 MB

JA Solar DeepBlue 4.0

The JA Solar JAM72D40 MB modules from the DeepBlue 4.0 series deliver 570–595W with high-efficiency Mono-PERC cells and 16 busbars. Featuring a bifacial double-glass structure and black frame, their half-cell design improves durability, minimizes shading losses, and maximizes energy output from both sides, combining top-tier performance with modern aesthetics.


Features:

1. Efficiency: 26% efficiency rate, leveraging advancements like 16-busbar and N-type technology.

2. Cost Efficiency: Lower Levelized Cost of Energy (LCOE), thanks to high efficiency and superior technology.

3. Durability: Improved mechanical loading tolerance.

4. Low Light Performance: Enhanced low irradiance response and very low Light Induced Degradation (LID).

5. Aesthetics: Sleek, all-black design suitable for diverse installation environments.



DeepBlue 4.0 Series

JAM72D40 MB size

MECHANICAL PARAMETERS


Cell Mono
Weight 31.8kg
Dimensions 2278±2mm × 1134±2mm × 30±1mm
Cable Cross Section Size 4mm²(IEC), 12 AWG(UL)
No. of cells 144(6×24)
Junction Box IP68, 3 diodes
Connector QC 4.10-351 / MC4-EVO2A
Cable Length (Including Connector) Portrait: 300mm(+) / 400mm(−)
Landscape: 1300mm(+) / 1300mm(−)
Front Glass / Back Glass 2.0mm / 2.0mm
Packaging Configuration 36pcs/Pallet, 720pcs/40HQ Container

Remark: customized frame color and cable length available upon request



ELECTRICAL CHARACTERISTICS WITH 10% SOLAR IRRADIATION RATIO


TYPE JAM72D40 570/MB JAM72D40 575/MB JAM72D40 580/MB JAM72D40 585/MB JAM72D40 590/MB JAM72D40 595/MB
Rated Maximum Power(Pmax) [W] 570 575 580 585 590 595
Open Circuit Voltage (Voc) [V] 51.52 51.73 51.95 52.16 52.37 52.58
Maximum Power Voltage (Vmp) [V] 43.62 43.82 44.02 44.22 44.43 44.64
Short Circuit Current (Isc) [A] 13.74 13.79 13.84 13.89 13.94 13.99
Maximum Power Current (Imp) [A] 13.07 13.12 13.16 13.23 13.28 13.33
Module Efficiency [%] 22.1 22.3 22.5 22.6 22.8 23.0
Power Tolerance 0~+3%
Temperature Coefficient of Isc(α_Isc) +0.045%/°C
Temperature Coefficient of Voc (β_Voc) -0.250%/°C
Temperature Coefficient of Pmax(γ_Pmp) -0.290%/°C
STC Irradi



ELECTRICAL CHARACTERISTICS WITH 10% SOLAR IRRADIATION RATIO


TYPE JAM72D40 570/MB JAM72D40 575/MB JAM72D40 580/MB JAM72D40 585/MB JAM72D40 590/MB JAM72D40 595/MB
Rated Max Power (Pmax) [W] 616 621 626 632 637 643
Open Circuit Voltage (Voc) [V] 51.52 51.73 51.95 52.16 52.37 52.58
Max Power Voltage (Vmp) [V] 43.62 43.82 44.02 44.22 44.43 44.64
Short Circuit Current (Isc) [A] 14.84 14.89 14.95 15.00 15.06 15.11
Max Power Current (Imp) [A] 14.11 14.17 14.23 14.29 14.34 14.40
Irradiation Ratio (rear/front) 10%

For Nextracker installations, maximum static load please take compatibility approve letter between JA Solar and Nextracker for reference.
** Bifaciality=Pmax, rear/Rated Pmax, front



CHARACTERISTICS


JAM72D40 MB characterisation



OPERATING CONDITIONS


Maximum System Voltage 1500V DC
Operating Temperature -40°C ~ +85°C
Maximum Series Fuse Rating 30A
Maximum Static Load, Front* 5400Pa (112 lb/ft²)
Maximum Static Load, Back* 2400Pa (50 lb/ft²)
NOCT 45 ± 2°C
Bifaciality** 80% ± 10%
Safety Class Class II
Fire Performance UL Type 29/Class C

* Maximum static load is based on front and rear surfaces under specific conditions.
** Bifaciality is a performance ratio that compares rear and front performance.
