JA Solar 595W JAM66D42 MB N-type Double Glass Bifacial Modules

Model JAM66D42 MB

Type

Half-cut monocrystalline silicon
Series DeepBlue 4.0
Power 570~595W
Brand JA Solar

Lead Time

3-7 Days

Payment

T/T, L/C,Western Union

Warranty

12-year product & 30-year power warranty

Comprehensive Certificates


IEC 61215, IEC 61730, UL 61215,UL 61730

● ISO 9001:2015 - Quality Management

● ISO 14001:2015 - Environmental Management

● ISO 45001:2018 - Occupational Health and Safety

● IEC 62941:2019 - PV Module Manufacturing Quality

JA Solar 595W JAM66D42 MB

JA Solar DeepBlue 4.0

The JA Solar JAM66D42 MB modules from the DeepBlue 4.0 series feature high-efficiency Mono-PERC cells with a 16-busbar design, delivering 570–595W per panel and maintaining strong performance in low-light conditions. The N-type bifacial double-glass structure captures sunlight from both sides, boosting energy output. A half-cell layout reduces hot spots, stress, shading, and resistive losses for enhanced durability. With an all-black design and mid-mounted split junction box, these modules offer both sleek aesthetics and flexible installation.


Features:

1. Efficiency: 26% efficiency rate, leveraging advancements like 16-busbar and N-type technology.

2. Cost Efficiency: Lower Levelized Cost of Energy (LCOE), thanks to high efficiency and superior technology.

3. Durability: Improved mechanical loading tolerance.

4. Low Light Performance: Enhanced low irradiance response and very low Light Induced Degradation (LID).

5. Aesthetics: Sleek, all-black design suitable for diverse installation environments.



DeepBlue 4.0 Series

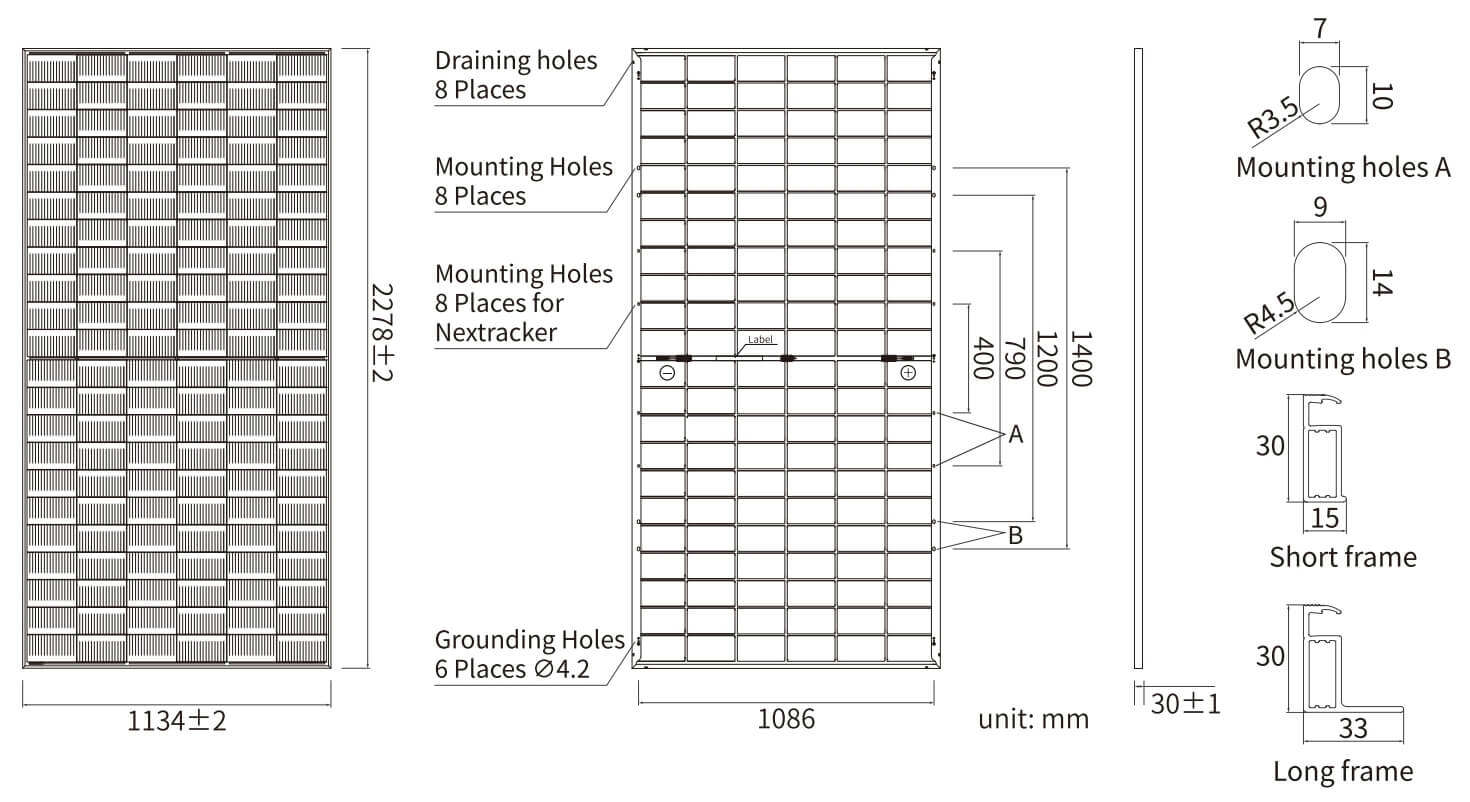

JAM66D42 MB size

MECHANICAL PARAMETERS


Parameter Specification
Cell Mono
Weight 31.8kg
Dimensions 2278±2mm × 1134±2mm × 30±1mm
Cable Cross Section Size 4mm²(IEC), 12 AWG(UL)
No. of cells 132(6×22)
Junction Box IP68, 3 diodes
Connector QC 4.10-351/ MC4-EVO2A
Cable Length (Including Connector) Portrait: 300mm(+) / 400mm(-)
Landscape: 1300mm(+) / 1300mm(-)
Front Glass/Back Glass 2.0mm/2.0mm
Packaging Configuration 36pcs/Pallet, 720pcs/40HQ Container

Remark: customized frame color and cable length available upon request



ELECTRICAL PARAMETERS AT STC


TYPE JAM66D42 570/MB JAM66D42 575/MB JAM66D42 580/MB JAM66D42 585/MB JAM66D42 590/MB JAM66D42 595/MB
Rated Maximum Power (Pmax) [W] 570 575 580 585 590 595
Open Circuit Voltage (Voc) [V] 47.78 47.98 48.18 48.38 48.58 48.78
Maximum Power Voltage (Vmp) [V] 40.00 40.21 40.42 40.63 40.84 41.03
Short Circuit Current (Isc) [A] 15.11 15.16 15.21 15.26 15.31 15.36
Maximum Power Current (Imp) [A] 14.25 14.30 14.35 14.40 14.45 14.50
Module Efficiency [%] 22.1 22.3 22.5 22.6 22.8 23.0
Power Tolerance 0~+3%
Temperature Coefficient of Isc (α_Isc) +0.045%/°C
Temperature Coefficient of Voc (β_Voc) -0.250%/°C
Temperature Coefficient of Pmax (γ_Pmp) -0.290%/°C
STC Irradiance 1000W/m², cell temperature 25°C, AM1.5G

Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer. They only serve for comparison among different module types.



ELECTRICAL CHARACTERISTICS WITH 10% SOLAR IRRADIATION RATIO


TYPE JAM66D42 570/MB JAM66D42 575/MB JAM66D42 580/MB JAM66D42 585/MB JAM66D42 590/MB JAM66D42 595/MB
Rated Max Power (Pmax) [W] 616 621 626 632 637 643
Open Circuit Voltage (Voc) [V] 47.78 47.98 48.18 48.38 48.58 48.78
Max Power Voltage (Vmp) [V] 40.00 40.21 40.42 40.63 40.84 41.03
Short Circuit Current (Isc) [A] 16.32 16.37 16.43 16.48 16.53 16.59
Max Power Current (Imp) [A] 15.39 15.44 15.50 15.55 15.61 15.66
Irradiation Ratio (rear/front) 10%

Remark: For Nextracker installations, maximum static load please take compatibility approve letter between JA Solar and Nextracker for reference.
** Bifaciality=Pmax, rear/Rated Pmax, front



CHARACTERISTICS

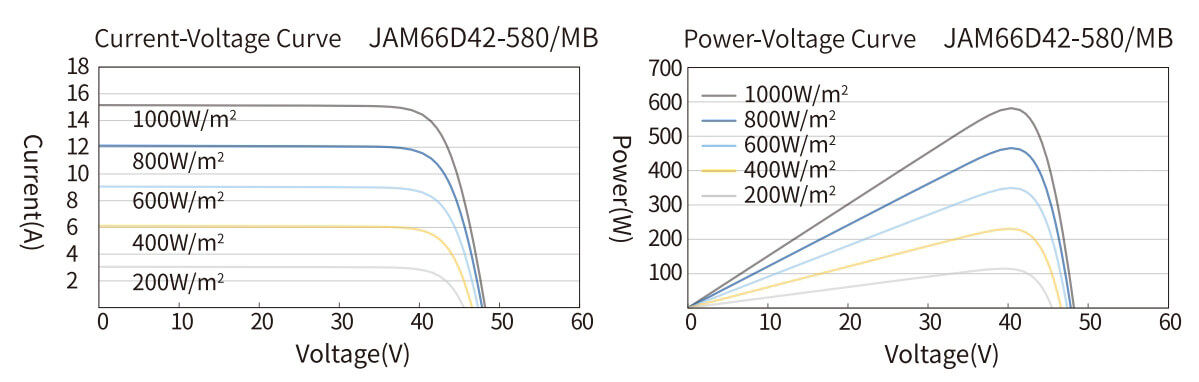

JAM66D42 MB characterisation

OPERATING CONDITIONS


Parameter Specification
Maximum System Voltage 1500V DC
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 30A
Maximum Static Load, Front* 5400Pa (112 lb/ft²)
Maximum Static Load, Back* 2400Pa (50 lb/ft²)
NOCT 45±2°C
Bifaciality** 80%±10%
Safety Class Class II
Fire Performance UL Type 29/Class C
