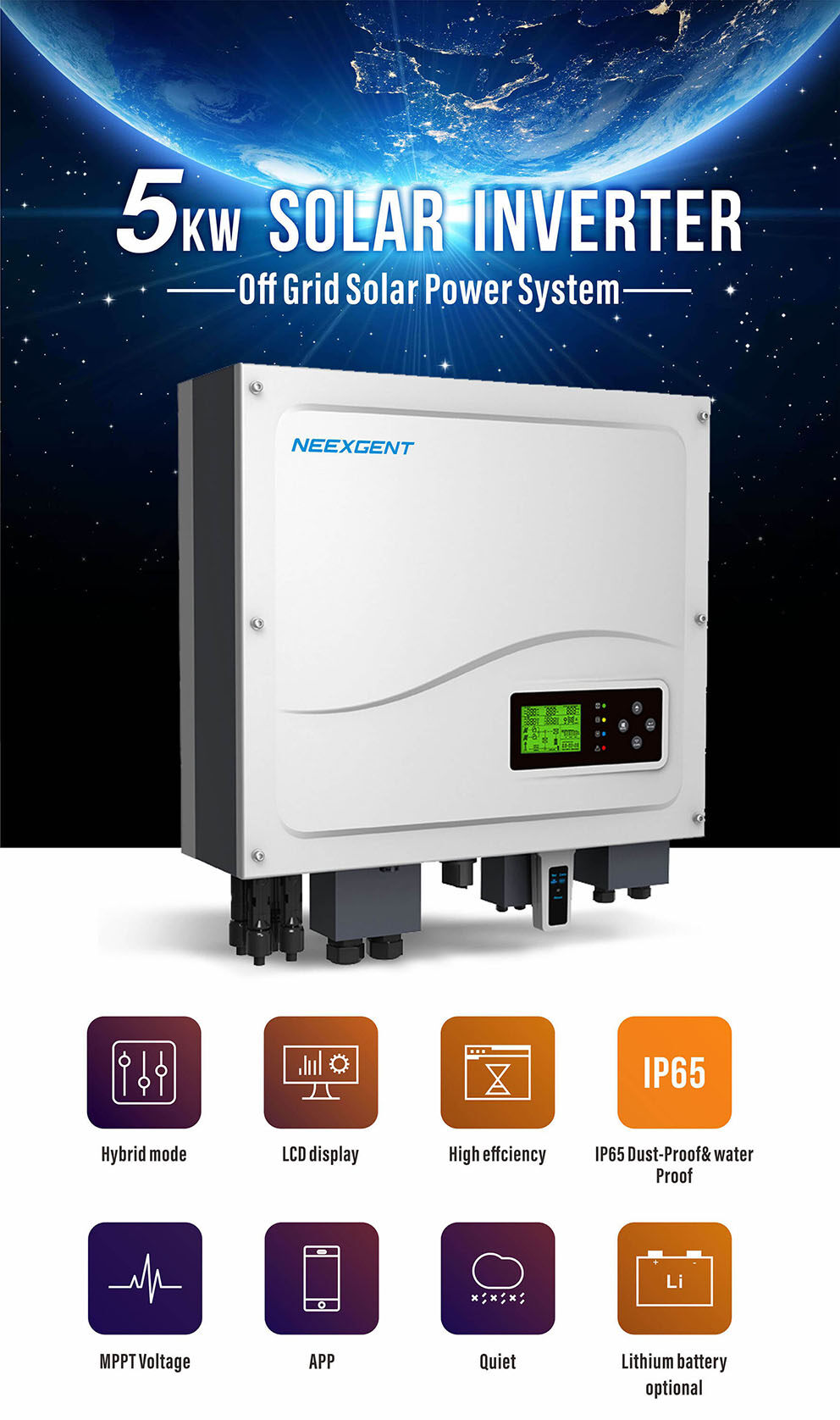

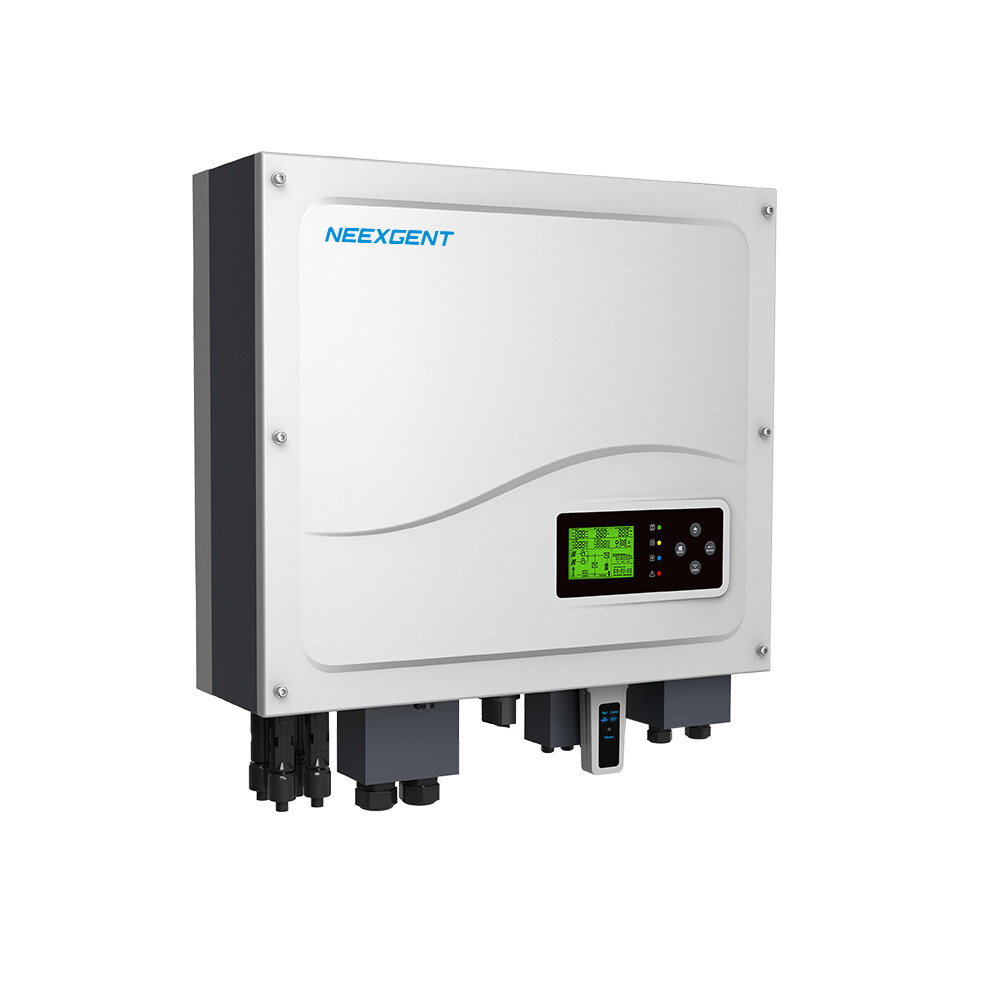

This is a flexible and intelligent energy storage solar inverter with a wide range of MPPT Voltage.
Combining functions of off grid and on grid. This hybrid solar inverter can power all kinds of appliances in home or office, and can also be used in power
stations.
• Wide range of MPPT voltage:120-550V
• Multiple operation modes: Grid-tie,off grid and grid-tie with back up
• Support LCD display&Smart LCD setting
• Available Export control CT sensor function
• Multiple communications:USB,RS485,GPRS and wifi etc
• Monitoring inverters freely via computers or mobile phones
• Full protection function:Over-voltage,over-frequency, over-current,
over-temperature,and AC short-circuit automatic protection
• Intelligent BMS battery management function
• Fanless low-noise design
• IP65 Dust-proof and water-proof
Tags:
Technical Specifications:
|
MODEL |
NG1000 PRO |
|
RATED POWER(W) |
5000 |
|
Nominal Battery System Voltage |
48 |
|
PV INPUT(DC) |
|
|
Maximum recommended DC power(W) |
7000 |
|
Nominal DC operating voltage(V) |
360 |
|
Maximum DC voltage(V) |
550 |
|
MPPT voltage range(V) |
120~550 |
|
Maximum input current(A) |
13 / 13 |
|
Maximum short circuit current(A) |
15 / 15 |
|
No.of MPP tracker |
2 |
|
Strings per MPP tracker |
1 |
|
INVERTER OUTPUT(AC) |
|
|
Nominal AC output power(W) |
5000 |
|
Nominal output voltage(V);range(V) |
220/230/240;180-280 |
|
AC grid frequency(Hz);range(Hz) |
50/60;45~55/55-65 |
|
Nominal output current(A) |
21.8 |
|
Maximum output current(A) |
22.8 |
|
Total harmonic distortion i(THDi) |
<3% |
|
Power factor at rated power |
1 |
|
Displacement power factor |
0.8leading ～ 0.8lagging |
|
BATTERY MODE OUTPUT(AC) |
|
|
Output Rated Power |
3000 |
|
Nominal output voltage(V);accuracy range |
230±1% |
|
Output ferequency(Hz);accuracy range |
50/60(optional)±0.2% |
|
Output rated current(A) |
13 |
|
Output waveform |
Pure sine wave |
|
Total harmonic distortion v (linear load) |
<3% |
|
BATTERY & CHARGER |
|
|
Battery type |
Lead-acid battery / Lithium battery |
|
Battery voltage(V) |
48 |
|
Battery voltage range(V) |
40~60 |
|
Charging curve |
3-stage adaptive with maintenance |
|
Over-current protection / Over-temperature protection |
Yes / Yes |
|
Maximum charging(W) |
4000 |
|
Maximum charging/discharging currernt(A) |
80 / 80 |
|
EFFICIENCY |
|
|
Maximum efficiency |
97.3% |
|
Euro-efficiency |
96.8% |
|
MPPT efficiency |
99.9% |
|
PROTECTION DEVICES |
|
|
DC switch rating for each MPPT |
Yes |
|
Grid monitoring |
Yes |
|
Output over current protection |
Yes |
|
Output overvoltage protection-varistor |
Yes |
|
Ground fault monitoring |
Yes |
|
Integrated all-pole sensitive leakage current |
Yes |
|
GENERAL |
|
|
Dimension(W/H/D)(mm) |
480*420*215 |
|
Net weight (kg) |
27 |
|
DC connection |
H4 / MC4 |
|
AC connection |
Terminal Block |
|
Terminal Block |
LED+LCD |
|
Communication interfaces |
Wi-Fi / USB / GPRS / RS485 |
|
Ingress protection rating |
IP65 |
|
Humidity |
0~95% RH(No codensing) |
|
Operating temperature range |
-20℃ +60℃ With derating above 45℃ |
|
Cooling concept |
Natural |
|
Altitude |
<3000m |
