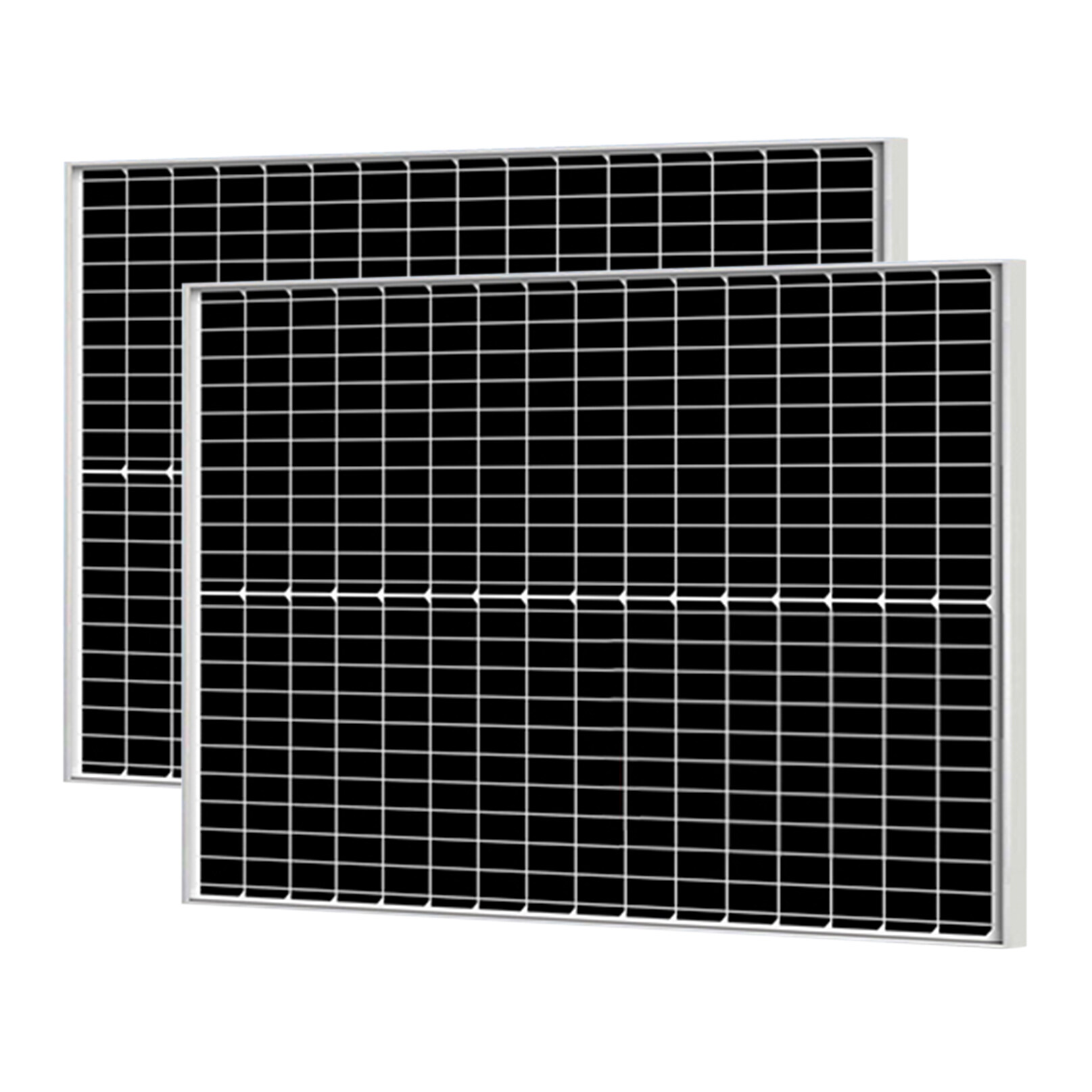

INTRODUCTION
1. Rigorous quality control meeting the highest international standards
2. High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon
3. Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies
4. High quality,strong aluminium frame,passing mechanical load testing 5400 Pa and wind pressure 2400Pa
Comprehensive Certificates
●IEC61215,1EC61730
●IS09001:2015 Quality management systems
●IS045001:Environmental management systems
●IS045001:2018 Occupational health and safety
Tags:
|
Electrical Parameters at (STC) |
|
|
Module |
NG040M |
|
Power(W) |
40W |
|
Module Efficiency(%) |
17. 50% |
|
Voltage at Pmax(Vmp) |
18.24 |
|
Current at Pmax(Imp) |
2.19 |
|
Open Circuit Voltage(Voc) |
21.80 |
|
Short Circuit Current(Isc) |
2.39 |
|
Power Tolerance(w) |
士3% |
|
Mechanical Parameters |
|
|
Solar Cell(Type/Size) |
MONO(182mm) |
|
Solar Cells Number |
32Pcs(2x16) |
|
Dimension |
570x400x25mm |
|
Weight |
2.80Kg/Pcs |
|
Tempered Glass |
3.2 mm High Permeability Coated |
|
Frame |
Anodized aluminum alloy |
|
Junction Box |
IP67.0* bypass diode |
|
Cable |
// |
|
Connector |
Original MC4/Compatible MC4 |
|
Mechanical Load |
Front 5400PA/back 2400PA |
|
Packing |
|
|
Module Type |
NG040M-32 |
|
Carton Size |
600x430x1 70mm |
|
Number |
5Pcs/Ctn |
|
Weight |
15Kg/Ctn |
|
Volume |
0.044Cbm/Ctn |
|
20GP Container |
3180Pcs |
|
40HQ Container |
7730Pcs |
