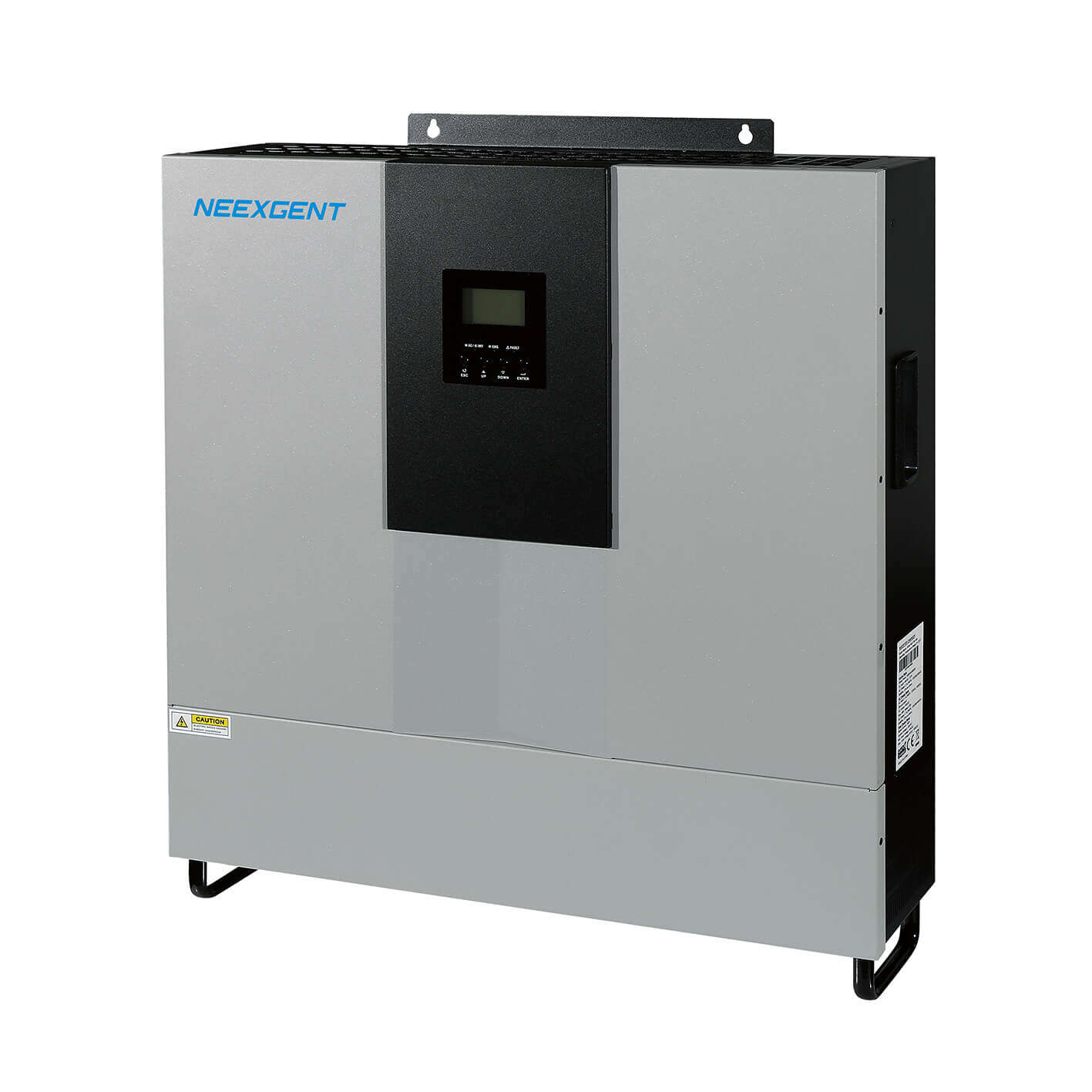

Suitable for use in USA/Puerto Rico,and Canada where split phase power standard is used.
• Versatile AC output modes:single phase 120v,split
• phase 240v,a nd 3-phase 208V
• Pure sine wave output 5KW/48VDC
• Dual MPPT Input upto 160A max charge
• Max PV input power up to 8KW(4KW*2)
• Utility charging up to 60A Max.
• Max total system charing up to 220A
• Parallel operation up to 3 units max
• Genset starter dry contact
• Programmable parameters
• Ideal for Off-Grid or Grid-backup application
• Easy to install
• FREE monitoring software
• LCD Display + LCD indicators
• USB.RS232 communication interface.
Tags:
Technical Specifications:
|
MODEL |
NG 5032US |
|
Continuous Output |
5000VA/5000W |
|
System DC Volt |
48VDC |
|
AC Input Voltage |
110/120VAC (Phase-Neutral) |
|
Maximum Parallel |
Up to 3 units |
|
PV INPUT/SOLAR CHARGING |
|
|
Max PV Input Power |
8000W(4000W each input) |
|
Max PV input Volt |
145V(open circuit Voc) |
|
MPPT Range |
60-110VDC |
|
Number of PV Input |
2 |
|
Max Charging Current |
160A (80Ax2) |
|
OUTPUT MODE |
|
|
Output Waveform |
Pure Sine Wave |
|
AC Output Mode |
120V L-N/240V L1-L2 /208V L1-L2 3-Phase |
|
Frequency |
50 / 60 Hz,auto-sensing |
|
Max Bypass Current |
40A |
|
Max Efficiency |
>90% |
|
Max Utility Charging |
60A |
|
Max Utility + Solar Charging |
220A |
|
Max Bulk/Float Charge |
58.4V |
|
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS |
|
|
Communication Port |
USB / RS232/Dry Contact |
|
Operating Temp |
o-5or |
|
Dimension,D x Wx H(mm) |
623*610*130mm |
|
Net Weight |
30KG |
