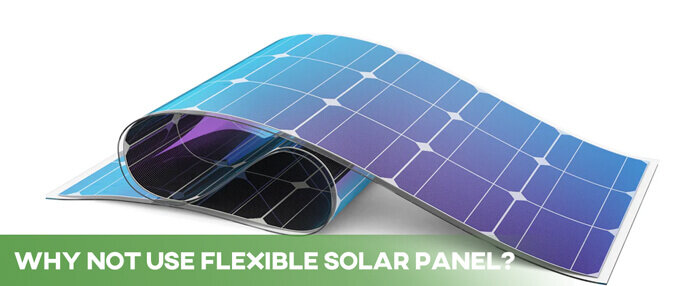

Why Not Use Flexible Solar Panel?

26 Nov, 2024



Contents:




Flexible solar panels are increasingly popular due to their lightweight, bendable design, and versatility in various applications. However, they may not always be the best choice. In this article, we’ll explore the reasons why flexible solar panels might not suit every need, comparing their limitations to the more traditional rigid solar panels.

why not use flexible solar panel​

Limitations of Flexible Solar Panels


1. Durability Concerns

Flexible solar panels are made with lightweight materials such as thin-film technology, which is inherently less durable than crystalline silicon used in rigid panels. Over time, exposure to weather conditions like wind, hail, and UV radiation can degrade flexible panels more rapidly.

2. Lower Efficiency

The efficiency of flexible panels, typically ranging from 10% to 15%, is lower than that of rigid panels, which can exceed 20%. This difference in efficiency impacts the power output, particularly in limited space applications.

3. Shorter Lifespan

Flexible panels generally last 5-10 years, significantly less than the 20-25 years expected from traditional panels. The shorter lifespan may result in higher costs over time due to replacements.

4. Limited Heat Resistance

Thin-film materials in flexible panels are more susceptible to overheating, which can reduce performance and accelerate degradation. In hot climates, this can be a critical drawback.

5. Higher Cost Per Watt

Although flexible panels are lightweight and portable, their cost per watt of power generated is often higher than traditional panels. For large-scale installations, this cost difference can add up significantly.



Comparing Flexible and Rigid Solar Panels


Below is a comparison table highlighting key differences between flexible and rigid solar panels:

Feature

Flexible Solar Panels

Rigid Solar Panels

Durability

Less durable, prone to weather damage

Highly durable with sturdy frames

Efficiency

10%-15%

20% or more

Lifespan

5-10 years

20-25 years

Cost per Watt

Higher

Lower

Installation

Lightweight, ideal for portable use

Heavier, requires mounting frames

Heat Resistance

Lower resistance, prone to overheating

Better heat tolerance



Alternative Scenarios for Flexible Panels


While flexible solar panels may not be ideal for all situations, they excel in niche applications such as:

  • Portable use on RVs, boats, and camping gear.

  • Installation on curved surfaces, like tents or vehicles.

  • Temporary setups where mobility is essential.

Ultimately, the choice depends on the application. Understanding the limitations and benefits of flexible solar panels helps make informed decisions for energy needs.

why not use flexible solar panel​

Performance Over Time: Flexible vs. Rigid Panels


To further illustrate the performance differences between flexible and rigid solar panels, let's look at how their efficiency declines over time. Flexible panels degrade more quickly due to their materials and construction.



Key Insights from Efficiency Trends


  • Yearly Degradation Rate: Flexible panels typically degrade at a rate of 0.8%-1% annually, while rigid panels degrade at approximately 0.5%.

  • Impact of Environmental Stress: Flexible panels are more sensitive to harsh weather, further accelerating their degradation.

  • Output Loss Over Time: By year 10, flexible panels may lose up to 10% of their efficiency, while rigid panels lose about 5%.



Visualization: Efficiency Over Time

Efficiency Trends of Flexible vs. Rigid Solar Panels





Applications to Consider


When to Avoid Flexible Panels

  • Permanent Installations: Homes and businesses with fixed solar arrays benefit more from durable, high-efficiency rigid panels.

  • High-Output Requirements: For large-scale energy needs, the lower efficiency of flexible panels is a disadvantage.

  • Extreme Weather Locations: Areas with harsh climates, such as heavy snow or intense heat, reduce the lifespan and performance of flexible panels.



Best Use Cases for Flexible Panels

  • Mobility and Portability: Ideal for RVs, boats, and mobile setups.

  • Space-Limited Installations: Suitable for situations where weight and flexibility outweigh durability and efficiency.

  • Temporary Solutions: Great for events or short-term energy needs.



Comparing Solar Panel Efficiency by Material


The efficiency of solar panels varies significantly depending on the materials used. To better understand the comparative performance of flexible and rigid panels, let’s break it down into a table format.

Efficiency Comparison Table

Below is a table that shows the efficiency and lifespan of flexible vs. rigid solar panels under typical conditions:

Efficiency and Lifespan Comparison of Flexible and Rigid Panels

Panel Type

Efficiency

Degradation Rate

Average Lifespan

Typical Applications

Flexible Panels

14-18%

1% per year

10-15 years

Portable, RVs, Boats, Temporary Installations

Rigid Panels

18-22%

0.5% per year

20-25 years

Fixed Installations, Residential, Commercial



Key Insights from the Table


  • Flexible Panels: These are more suitable for short-term or mobile applications, where weight and flexibility are essential, but their lower efficiency and faster degradation rate make them less ideal for long-term energy generation.

  • Rigid Panels: With higher efficiency and slower degradation rates, rigid panels are typically used in fixed installations where long-term reliability is a priority, such as in homes, commercial buildings, and large solar farms.



As we move forward with the development of solar energy solutions, it's clear that both flexible and rigid solar panels have their respective advantages and limitations. Understanding these differences allows us to make more informed decisions when selecting the right type of panel for specific needs and environments.

Flexible solar panels, while offering ease of use and portability, still face challenges with efficiency and long-term performance. As technology advances, we may see improvements in their energy conversion rates, as well as innovations that address their vulnerability to wear and tear. The integration of flexible panels in applications where space and weight constraints are critical is already gaining traction, especially in the automotive and aerospace industries.

On the other hand, rigid solar panels continue to dominate the market for fixed installations due to their higher efficiency and longer lifespan. As the demand for renewable energy increases globally, these panels will likely remain the standard for large-scale solar farms and residential systems. With improvements in material technology, we can expect rigid panels to become even more efficient, providing a greater return on investment for consumers and businesses alike.

As both technologies evolve, we may also witness the merging of the best attributes of flexible and rigid panels. Hybrid systems or advances in panel design could bridge the gap, offering solutions that are both highly efficient and versatile, meeting the energy needs of an increasingly diverse world.
