In the rapidly advancing world of portable electronics and electric vehicles, lithium-ion batteries have become the cornerstone of our power needs. As these energy sources continue to proliferate, the demand for efficient, reliable, and advanced battery chargers has skyrocketed. This comprehensive article delves into the intricacies of lithium-ion battery chargers, exploring their features, technological advancements, and best practices for optimal use.

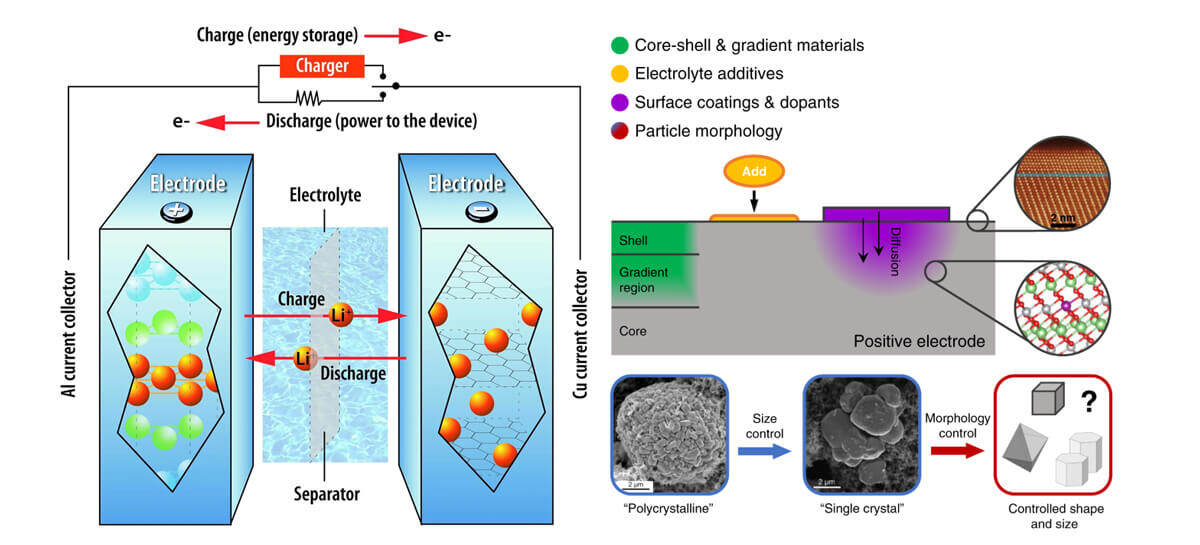

Lithium-ion battery chargers are sophisticated devices engineered to safely and efficiently recharge lithium-ion batteries. Unlike their simpler counterparts designed for other battery chemistries, these chargers incorporate advanced circuitry to manage the complex charging process and protect the battery from potential damage.
1. Constant Current-Constant Voltage (CC-CV) Charging
This charging method is the gold standard for lithium-ion batteries. It involves two distinct phases: This approach ensures optimal charging efficiency and helps prolong battery life.
- Constant Current Phase: The charger applies a steady current to the battery until it reaches a specific voltage.
- Constant Voltage Phase: Once the target voltage is reached, the charger maintains this voltage while gradually reducing the current.
2. Comprehensive Safety Mechanisms
Advanced chargers incorporate multiple layers of protection:
- Overcharge Protection: Prevents excessive voltage from damaging the battery.
- Temperature Monitoring: Adjusts charging parameters based on battery temperature to prevent overheating.
- Short-Circuit Prevention: Safeguards against potential electrical hazards.
- Reverse Polarity Protection: Prevents damage if the battery is inserted incorrectly.
3. Multi-Chemistry Compatibility
Many modern chargers are designed to work with various lithium-ion chemistries, including:
This versatility allows users to charge different types of batteries with a single device.
4. Smart Charging Capabilities
Microprocessor-controlled chargers can communicate with battery management systems (BMS) to optimize charging parameters. This intelligent charging approach can:
- Adjust charging rates based on battery condition
- Provide real-time information on charging status
- Implement battery-specific charging profiles
The time required to charge a lithium-ion battery varies depending on several factors, including battery capacity, charger output, and battery chemistry. Below is a chart illustrating typical charging times for common lithium-ion battery types:
- 18650 Batteries: These cylindrical cells, commonly used in laptops and power tools, charge relatively quickly due to their moderate capacity and widespread use in fast-charging applications.
- 21700 Batteries: With a larger capacity than 18650s, these batteries take slightly longer to charge but offer extended run times.
- LiFePO4 Batteries: Known for their stability and safety, these batteries are often used in electric vehicles and solar energy storage. They typically have longer charging times due to their chemistry and larger capacities.
- LiPo Batteries: Prized for their high energy density, LiPo batteries often have the longest charging times among portable battery types due to their sensitivity to charging conditions.
- EV Battery Packs: Electric vehicle batteries, with their massive capacities, naturally require the longest charging times. However, advancements in fast-charging technologies are continually reducing these times.
To help you navigate the diverse landscape of lithium-ion chargers, here's a comparison of some popular models:
| Charger Model |
Max Output |
Compatible Battery Types |
Special Features |
Weight (oz) |
Price ($) |
| NOCO Genius PRO50 |
50A |
Standard, AGM, SLA, VRLA, Li-ion |
Automatic repair mode, IP65 rated |
283.2 |
900 |
| Opus BT-C3100 |
2A |
Li-ion, NiMH, NiCd |
LCD display, capacity testing |
24 |
37.99 |
| CTEK 56-926 |
5A |
LiFePO4 |
8-step charging, temperature comp. |
27.2 |
100 |
| XTAR ANT MC1 Plus |
1A |
Li-ion |
Compact size, USB powered |
4.8 |
20 |
| Nitecore UMS4 |
3A |
Li-ion, IMR, LiFePO4, Ni-MH |
QC 3.0, USB-C input |
3.2 |
49.95 |
This table showcases the diversity in charger specifications, from high-amperage professional models like the NOCO Genius PRO50 to more affordable and portable options like the XTAR ANT MC1 Plus. Each charger offers unique features catering to different user needs, from hobbyists to professionals.
Recent years have witnessed significant advancements in lithium-ion charging technology, pushing the boundaries of speed, efficiency, and convenience:
Fast Charging
Fast charging technologies have revolutionized the way we power our devices. Some key developments include:
- Qualcomm Quick Charge: Widely used in smartphones, this technology can deliver up to 100W of power, dramatically reducing charging times.
- USB Power Delivery (PD): This universal standard allows for faster charging and bidirectional power flow, enabling a single charger to power various devices efficiently at different voltages.
- Proprietary Fast Charging: Many manufacturers have developed their own fast charging protocols, such as OnePlus' Warp Charge and Oppo's SuperVOOC, which can deliver even higher power outputs.
Wireless Charging
Inductive charging pads have gained popularity, offering convenient, cable-free charging for smartphones and other portable devices. Advancements in this area include:
- Qi Standard: The most widely adopted wireless charging standard, continually improving in efficiency and speed.
- Resonant Wireless Charging: This technology allows for charging at greater distances and with more positional freedom than traditional inductive charging.
- Multi-Device Charging Pads: Some chargers can now wirelessly charge multiple devices simultaneously, increasing convenience for users with multiple gadgets.
GaN (Gallium Nitride) Chargers
GaN technology has allowed for the creation of smaller, more efficient chargers. Benefits include:
- Reduced Size: GaN chargers can be up to 40% smaller than traditional silicon-based chargers.
- Improved Efficiency: They generate less heat, allowing for higher power outputs in compact form factors.
- Faster Charging: The increased efficiency translates to faster charging times for compatible devices.
Smart Charging Systems
Advanced chargers now incorporate intelligent features to optimize the charging process:
- Adaptive Charging: Algorithms that learn user habits to optimize charging and reduce battery wear.
- Battery Health Management: Systems that monitor battery health and adjust charging parameters to extend battery lifespan.
- Remote Monitoring and Control: Apps that allow users to monitor and control charging remotely, enhancing convenience and energy management.
To maximize the lifespan and performance of your lithium-ion batteries, follow these best practices:
1. Use the Right Charger: Always use a charger specifically designed for lithium-ion batteries and compatible with your device.
2. Avoid Extreme Temperatures: Charge your batteries at room temperature whenever possible. Extreme heat or cold can affect charging efficiency and battery health.
3. Partial Charges are Preferable: It's better to do frequent partial charges than to let the battery drain completely before recharging.
4. Avoid Overcharging: While most modern devices have safeguards, it's still best to unplug your device once it's fully charged.
5. Store at Partial Charge: If storing a battery for an extended period, keep it at about 40-50% charge in a cool, dry place.
6. Be Mindful of Fast Charging: While convenient, frequent use of fast charging can increase battery wear. Use it judiciously.
7. Keep Batteries Clean: Ensure the battery contacts are clean to maintain efficient charging and prevent potential safety issues.
As battery technology continues to evolve, we can expect further advancements in charging technology:
- Extreme Fast Charging: Research is ongoing into charging technologies that could fully charge an electric vehicle in as little as 10 minutes.
- Smart Grid Integration: Future chargers may communicate with power grids to optimize charging times based on electricity demand and pricing.
- Solid-State Battery Charging: As solid-state batteries become more prevalent, new charging technologies will emerge to support their unique characteristics.
- Wireless Charging Infrastructure: We may see more widespread integration of wireless charging in public spaces, vehicles, and furniture.
Lithium-ion battery chargers have come a long way, offering faster charging times, enhanced safety features, and improved efficiency. As battery technology continues to evolve, we can expect chargers to become even more sophisticated, further improving our experience with portable electronic devices and electric vehicles. By understanding the technology behind these chargers and following best practices for battery care, users can ensure optimal performance and longevity of their lithium-ion powered devices.
