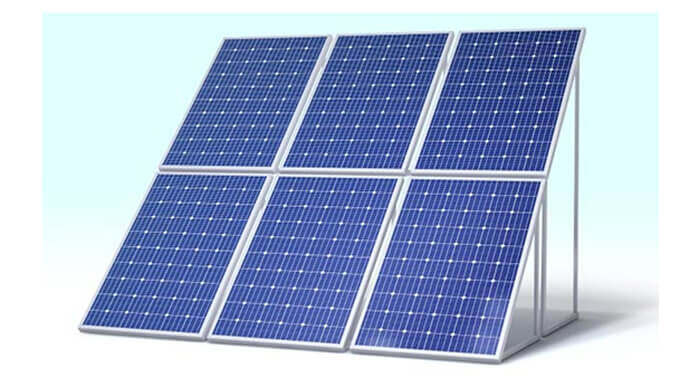

Solar photovoltaic (PV) panels come in a variety of sizes to cater to different needs, from small-scale residential installations to large commercial or industrial systems. The size of a solar panel primarily depends on its power output, typically measured in watts (W), and the type of photovoltaic cells used. Understanding the various sizes available and their suitability for different applications can help you make informed decisions when designing or installing a solar energy system.
Common Solar Panel Sizes
-
Standard Residential Solar Panels
Standard residential solar panels are usually around 1.6 meters by 1 meter (approximately 65 inches by 39 inches). These panels typically range in output from 270W to 350W. Their compact size and efficiency make them ideal for home rooftops, where space can be limited but energy demands remain high.
-
Large Residential and Commercial Panels
Larger panels, often referred to as "oversized" panels, are typically used in commercial installations or for large residential projects. These panels may range from 1.7 meters to 2 meters in length and 1 meter in width, with power ratings from 350W to 500W or more. The additional size allows for greater power generation, which is essential for large-scale energy needs.
-
Flexible Solar Panels
Flexible solar panels are designed to be lightweight and adaptable, making them a good choice for unconventional installations, such as on curved surfaces or in mobile applications like RVs and boats. These panels are typically smaller in size but can still produce a decent amount of power—ranging from 100W to 250W.
-
High-Efficiency Solar Panels
High-efficiency solar panels, made with monocrystalline silicon cells, are generally compact for their power output. They are often used in situations where space is limited but maximum power generation is desired. These panels may be slightly smaller than standard models but can produce up to 400W or more.
Table of Typical Solar Panel Dimensions and Power Output
|
Panel Type
|
Dimensions (L x W)
|
Power Output
|
|
Standard Residential
|
1.6m x 1m
|
270W - 350W
|
|
Large Residential/Commercial
|
1.7m - 2m x 1m
|
350W - 500W+
|
|
Flexible Panels
|
Varied (Flexible)
|
100W - 250W
|
|
High-Efficiency
|
1.6m x 1m (smaller in size)
|
350W - 400W+
|
These dimensions and outputs are typical for standard PV panels. However, manufacturers continue to innovate with new panel technologies and sizes, so it's always important to check specifications before purchase.
In selecting the right panel size, several factors need to be considered:
-
Available Space: Residential rooftops may not have the room for larger panels, while commercial properties may have more flexibility.
-
Energy Requirements: Larger panels or those with higher efficiency may be necessary for higher energy demands.
-
Budget: While larger panels may provide more power, they may also come with a higher upfront cost.
By understanding the various sizes of solar photovoltaic panels and their corresponding outputs, you can choose the best solution for your specific energy needs.
Factors Affecting Solar Panel Size Selection
When selecting the appropriate size for a solar panel system, several key factors should be taken into consideration. These factors ensure that the chosen system will meet both the physical and energy requirements of the installation, providing optimal efficiency and performance.
-
Roof Space and Layout
The available roof space is one of the most significant factors when determining the size of the solar panels. Residential homes often have limited roof area, which may necessitate the use of smaller, higher-efficiency panels to maximize the power generation within the available space. On the other hand, larger commercial rooftops typically have more room for larger panels, allowing for a more cost-effective installation with fewer panels required to meet energy needs.
-
Energy Consumption Needs
The energy consumption of a household or business directly impacts the size and number of panels needed. A typical residential home may require anywhere from 3kW to 10kW of solar energy, depending on the size of the property and the number of appliances used. Larger energy demands will require more panels or higher-output models to meet the required kilowatt hours (kWh) of electricity. Understanding your energy consumption helps to determine the most efficient panel size for your needs.
-
Panel Efficiency
Not all solar panels are created equal. Monocrystalline panels are generally more efficient than polycrystalline or thin-film panels, meaning they can produce more energy per square meter of space. If space is limited, it may be worth investing in higher-efficiency panels that can generate more power without requiring as much surface area. However, these panels tend to come with a higher price tag, so there needs to be a balance between budget and performance.
-
Environmental Factors
The climate and location of the installation site can influence the panel size selection. Regions with higher levels of sunlight will benefit from slightly smaller systems due to the increased solar irradiance. Conversely, locations with lower sun exposure or more seasonal variation may require larger or more efficient panels to generate the same amount of energy.
-
Aesthetic Preferences
The appearance of the solar panels can also be an important consideration for residential installations, especially in urban or suburban settings where aesthetics are a concern. Smaller panels with sleek designs are often chosen for aesthetic reasons, especially for rooftop installations. Some manufacturers even offer solar panels designed to blend seamlessly with the roof, making them less noticeable and more visually appealing.
-
Cost Considerations
While larger panels may offer more power per unit, they come with a higher initial investment. Budgeting for a solar panel system requires understanding not only the upfront cost of the panels but also the associated installation, inverter, and maintenance costs. It's important to calculate the total cost of the solar power system over its lifetime, including any potential savings from energy production, in order to make an informed decision.
Types of Solar Panels and Their Size Variations
The size of the solar panel can also vary depending on the technology used in its construction. Here are the most common types of solar panels and their typical size ranges:
-
Monocrystalline Solar Panels
Monocrystalline panels are known for their high efficiency and longevity. These panels are typically smaller in size for a given wattage compared to other panel types. Their compact size makes them ideal for residential rooftops where space is limited. These panels typically range from 1.6 meters by 1 meter, with outputs ranging from 300W to 400W.
-
Polycrystalline Solar Panels
Polycrystalline panels are a more affordable alternative to monocrystalline panels, but they tend to have slightly lower efficiency. They are usually larger to compensate for the lower efficiency, typically measuring around 1.7 meters by 1 meter, with outputs between 250W and 350W.
-
Thin-Film Solar Panels
Thin-film solar panels are lightweight and flexible, but they are less efficient than both monocrystalline and polycrystalline panels. These panels can be produced in a variety of sizes, and because they are thinner, they often take up more space to produce the same amount of energy. They are commonly used in large-scale commercial installations, where space is less of a concern. Thin-film panels may range from 2 meters by 1 meter to even larger sizes.
-
Bifacial Solar Panels
Bifacial solar panels are a newer technology designed to capture sunlight on both the front and back of the panel. These panels can be slightly larger to accommodate the extra space for capturing reflected light from surfaces beneath the panel. They typically have a similar size to monocrystalline or polycrystalline panels but offer improved performance due to the added energy generation capability from both sides.
Innovations in Solar Panel Sizes
The solar energy industry continues to evolve, and with advancements in technology, new innovations in solar panel sizes and designs are emerging. For example, some manufacturers are producing half-cell or multi-busbar panels, which are smaller and more efficient than traditional full-cell panels. These innovations enable more energy to be captured in less space, making solar power more accessible and affordable.
Additionally, "shingled" solar panels, where cells are arranged like shingles on a roof, are another cutting-edge development. These panels offer increased efficiency and reduced waste during manufacturing, leading to smaller panel sizes with more power output.
While the standard dimensions for solar panels will likely remain consistent for the foreseeable future, these innovations show promise in providing even more efficient solutions to meet the growing demand for renewable energy.
By considering all these factors, you can ensure that the solar panel system you select is the best fit for your space, energy needs, and budget. Whether you're installing solar on a small residential roof or a large commercial building, understanding the different sizes and types of panels available can help you achieve an optimal energy solution.
