In solar photovoltaic (PV) systems, paralleling strings is a common method used to increase the system’s amperage, catering to higher current demands. This approach allows users to build systems that better match their power requirements and the capacity of energy storage solutions. Paralleling PV strings can optimize performance, improve reliability, and support scalability. However, proper configuration and awareness of technical nuances are essential to avoid potential issues such as unbalanced loads or power losses.
Key Concepts in Paralleling PV Strings

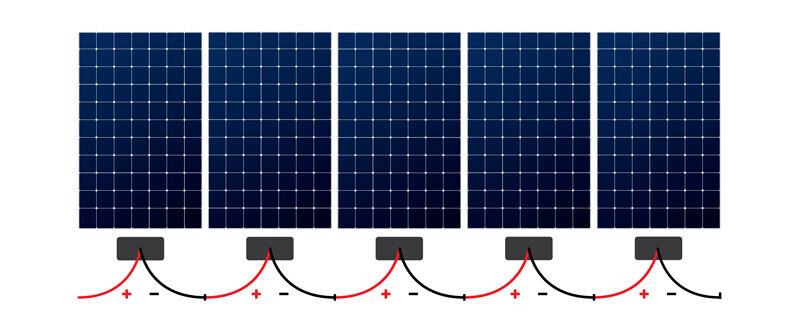

When discussing PV systems, a "string" refers to a series-connected chain of photovoltaic modules. Connecting these strings in parallel increases the total current available to the system, without changing the voltage. This can be particularly advantageous in systems where higher current is needed for charging batteries or directly powering DC loads.
Advantages of Paralleling Strings
-
Increased Amperage: Paralleling strings allows for a substantial increase in the available amperage, which is beneficial when connecting to high-capacity inverters or battery banks.
-
Enhanced System Flexibility: Systems that need to be adjusted for different loads or expanded over time benefit from the flexibility of parallel connections.
-
Minimized Voltage Losses: With multiple strings in parallel, voltage drop across each string is minimized, improving efficiency.
Technical Considerations
To safely and efficiently parallel strings, consider the following technical guidelines:
-
Consistent Specifications: Ensure that all PV modules and strings are of similar voltage and power ratings to prevent uneven distribution of current.
-
Proper Wiring and Connectors: Use adequately rated wires and connectors to handle the increased current safely.
-
String Fusing: Employ fuses for each string to protect against overcurrent and potential faults.
Step-by-Step Guide for Paralleling Strings
-
Select Compatible Modules: All modules should match in terms of wattage, voltage, and current ratings to achieve a balanced system.
-
Use Y-Connectors: Special Y-connectors are often used to combine two or more strings in parallel safely.
-
Check Inverter Compatibility: Verify that the inverter’s maximum input current can handle the combined output current of the paralleled strings.
Sample Calculation
Suppose you have two PV strings, each with a voltage of 300V and a current of 10A. When these two strings are connected in parallel:
This setup provides a 300V, 20A output, suitable for systems requiring higher amperage while maintaining the same voltage.
|
Configuration
|
Voltage (V)
|
Current (A)
|
Total Power (W)
|
Inverter Compatibility
|
|
2 Strings in Parallel
|
300
|
20
|
6000
|
Compatible with up to 20A input
|
|
3 Strings in Parallel
|
300
|
30
|
9000
|
Compatible with up to 30A input
|
|
4 Strings in Parallel
|
300
|
40
|
12000
|
Compatible with up to 40A input
|
Safety and Maintenance Considerations
When configuring PV systems with parallel strings, prioritizing safety and maintenance is crucial for long-term reliability and performance. Here are some guidelines to ensure the system operates smoothly:
-
Thermal Management: Higher currents in paralleled systems can lead to increased temperatures, which can impact component lifespan and efficiency. Proper spacing and ventilation help dissipate heat effectively.
-
String-Level Monitoring: Monitoring each string’s output can reveal imbalances or faults early. Many modern inverters and charge controllers support string-level monitoring, which aids in identifying performance issues before they lead to system inefficiencies or failures.
-
Regular Inspections: As with any electrical system, periodic inspections of cables, connectors, and fuses are essential. Checking for wear, corrosion, and secure connections helps prevent unexpected outages.
Challenges and Solutions
Paralleling strings presents unique challenges that require careful planning and attention:
- Mismatch Losses: Even minor differences in panel output can lead to efficiency losses in a parallel configuration. To mitigate this, try to keep all panels and strings at similar orientations, angles, and shading levels.
- Voltage Drop Management: Though paralleling can reduce the voltage drop in individual strings, the system may still experience cumulative voltage loss over long distances. To counter this, use cables with lower resistance or minimize the length between the PV array and the inverter.
- Grounding and Earthing: Grounding each string properly is essential for safety. A well-grounded system helps prevent electrical shocks, protects against surges, and can extend component longevity. Refer to local codes and standards to ensure compliance.
Practical Applications of Paralleling Strings
Paralleling strings can serve a range of applications across residential, commercial, and industrial projects. Let’s explore some use cases:
-
Residential Systems: Homes with limited roof space often benefit from a few high-capacity strings in parallel, allowing the system to meet household energy demands efficiently.
-
Commercial Installations: Businesses with medium to large-scale installations, such as office buildings, can benefit from paralleled strings to support high-current inverters and maximize energy output.
-
Industrial Applications: In larger operations, like manufacturing facilities, multiple strings in parallel can provide the high amperage needed for continuous operations and large-scale battery banks.
|
Application
|
Parallel Strings
|
Voltage (V)
|
Current (A)
|
Total Power (W)
|
|
Residential Rooftop
|
2
|
400
|
15
|
6000
|
|
Commercial Building
|
4
|
450
|
40
|
18000
|
|
Industrial Facility
|
6
|
500
|
60
|
30000
|
Best Practices for Wiring and Connections in Parallel PV Systems
Proper wiring and secure connections are vital when configuring PV strings in parallel. Each component and connection point plays a role in sustaining current flow and preventing potential failures:
-
Use Properly Rated Cables: The cable rating should match the total current of the paralleled strings. Oversized cables may increase costs but reduce resistance, enhancing efficiency and reducing heat.
-
Implement MC4 Connectors: For quick, secure, and waterproof connections, MC4 connectors are commonly used in PV systems. They support high amperage and are compatible with most solar panels and inverters.
-
Avoiding Series-Parallel Conflicts: When combining both series and parallel connections, maintain consistency across voltage and current ratings to avoid conflicts that can lead to system imbalance or reduced performance.
Using Blocking Diodes and Fuses for Protection
In parallel string systems, protection devices like blocking diodes and fuses are essential. These components help prevent reverse currents, overcurrents, and potential damage to solar modules.
-
Blocking Diodes: Blocking diodes are installed in each string to prevent reverse current flow from the battery or other strings. This is especially important in shaded conditions, where some strings may generate less current.
-
Fuses for Each String: Fuses should be placed at the positive end of each string to protect against overcurrent scenarios. Each fuse should be rated slightly above the maximum current of the individual string to ensure optimal protection without triggering during normal operation.
Using both blocking diodes and fuses extends the system’s lifespan and mitigates risks associated with imbalanced current flow.
Optimizing System Layout for Maximum Efficiency
The layout and orientation of PV strings are crucial for optimal energy production in parallel configurations. Here are some layout tips:
-
Minimize Shading: Shading can cause voltage and current discrepancies between strings. Ensure that panels are free from shade as much as possible, especially during peak sunlight hours.
-
Use Consistent Tilt Angles: Maintaining consistent tilt angles across panels ensures uniform exposure to sunlight, which helps to prevent mismatched currents.
-
Efficient Array Design: Avoid long distances between PV strings and the inverter. Long cable runs can introduce voltage drops; positioning the inverter closer to the array can reduce these losses.
Monitoring and Control Systems for Parallel PV Arrays
For high-performance PV systems, monitoring and control systems are invaluable. These technologies enhance system reliability and support preventive maintenance:
- Inverter-Based Monitoring: Many inverters come with built-in monitoring software that allows tracking of each string’s output. Monitoring enables quick identification of underperforming strings, making it easier to address issues early.
- String-Level Monitoring: This advanced monitoring allows for real-time insights into each individual string, which can be particularly beneficial in large commercial or industrial installations where identifying faults quickly is crucial.
- Automatic Disconnects: In cases of severe imbalance or fault detection, automatic disconnects can shut down individual strings or the entire system to prevent damage.
System Expansion with Paralleling
As energy demand grows, expanding PV systems to accommodate higher loads becomes a practical solution. Paralleling is particularly suited to modular system growth:
-
Scalable Configurations: Adding more strings in parallel allows for incremental system expansion without altering the voltage of the existing array.
-
Balancing New and Existing Strings: When expanding, ensure that new strings have similar specifications to the existing ones. Mismatched strings can lead to unequal current distribution and reduce overall system efficiency.
-
Enhanced Storage Integration: For systems coupled with battery storage, paralleling strings can provide the high amperage required for efficient charging, particularly in high-capacity battery banks that need sustained high current inputs.
Industry Trends and Innovations in Paralleling Techniques
The solar industry is rapidly advancing, with new technologies emerging to enhance paralleling methods. Trends like bifacial panels, which capture sunlight from both sides, and thin-film PV technologies are changing how arrays are designed and deployed in various environments. As more efficient and resilient solar panels become mainstream, system designers can take advantage of these innovations to improve both output and durability.
Furthermore, the integration of AI and IoT in PV systems is paving the way for intelligent energy management solutions. Through predictive analytics and real-time adjustments, these systems can optimize current flows, manage power storage, and detect inefficiencies before they escalate. This trend towards smart energy systems allows for more robust, scalable PV arrays that can easily handle the complexities of paralleling strings while maximizing efficiency.
As PV technology continues to evolve, paralleling strings will remain a fundamental technique, enabling more dynamic and adaptable solar energy systems capable of meeting diverse energy needs across residential, commercial, and industrial applications.
