When evaluating how long 4 parallel 12V 100Ah lithium batteries will last, it’s crucial to understand several key factors that influence the lifespan of a battery system. These factors include the battery capacity, load demands, the efficiency of the battery management system (BMS), and the discharge rate. In this article, we will discuss how these elements contribute to the performance and duration of 4 parallel 12V 100Ah lithium batteries in different scenarios.

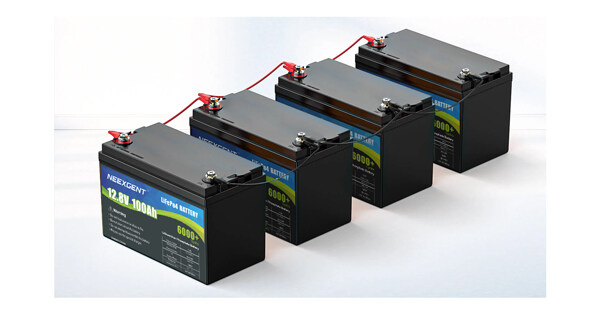

Neexgent NX12100 12.8v 100ah LiFePO4 battery
Understanding the Basics of Parallel Battery Connections
When connecting lithium batteries in parallel, their capacities are summed up while the voltage remains the same. In this case, 4 parallel 12V 100Ah batteries will have a combined capacity of 400Ah at 12V. This setup is commonly used for applications such as solar energy storage systems, electric vehicles (EVs), or backup power systems.
The total battery capacity (in amp-hours) indicates how much current the battery can supply over a specific period. A 100Ah battery can theoretically provide 1 amp for 100 hours, or 100 amps for 1 hour. For four 100Ah batteries in parallel, the total capacity is 400Ah, meaning the system can theoretically provide 1 amp for 400 hours, or 400 amps for 1 hour.
Factors Affecting Battery Life
1. Load Demand
The load demand plays a significant role in determining how long the battery system will last. If the load is low, such as small devices or minimal lighting, the batteries will last longer. Conversely, if the load is high, such as large appliances or machinery, the battery life will decrease accordingly.
For example:
-
Light load (e.g., a 50W device): A 50W device at 12V would draw about 4.17 amps (50W / 12V = 4.17A). With 400Ah available, the batteries would last around 96 hours (400Ah / 4.17A = 96 hours).
-
Heavy load (e.g., a 500W device): A 500W device at 12V would draw approximately 41.67 amps (500W / 12V = 41.67A). With 400Ah available, the batteries would last around 9.6 hours (400Ah / 41.67A = 9.6 hours).
2. Battery Discharge Rate
The discharge rate is another factor that affects battery longevity. Lithium batteries are designed to discharge more efficiently at certain rates. High discharge rates can reduce the overall lifespan of the battery, whereas slow discharges are more favorable. For example, discharging a battery at 1C (its rated capacity) is safe and efficient, but higher rates may cause the battery to degrade faster.
In typical applications, the discharge rate is kept between 0.2C and 1C. For a 100Ah battery, this means discharging at a rate of 20A to 100A. If discharging at a high rate, the battery will not last as long as if it were being discharged at a moderate rate.
3. Efficiency of the Battery Management System (BMS)
The BMS ensures that the battery operates safely, balancing the charge across all cells, preventing overcharging and deep discharging. It also contributes to optimizing the battery's lifespan by controlling how energy is stored and used. If the BMS is efficient, the batteries will perform better and last longer.
4. Temperature and Environmental Conditions
Temperature can significantly impact battery life. Extreme cold or hot temperatures can reduce the efficiency of the battery and shorten its overall lifespan. For example, lithium batteries typically perform best in environments with temperatures between 20°C and 25°C (68°F - 77°F). Higher temperatures can cause the battery to age faster, while extremely cold conditions may reduce its available capacity.
Practical Estimation of Battery Life
Now that we’ve discussed the factors affecting battery life, let's calculate the approximate lifespan of 4 parallel 12V 100Ah lithium batteries under various load conditions:
| Load (W) |
Current Draw (A) |
Duration (hrs) |
| 50 |
4.17 |
96 |
| 100 |
8.33 |
48 |
| 200 |
16.67 |
24 |
| 500 |
41.67 |
9.6 |
| 1000 |
83.33 |
4.8 |
As seen from the table, the more power you draw from the batteries, the shorter their lifespan will be. However, the actual duration can vary based on factors such as battery health, temperature, and the specific devices being powered.
In conclusion, 4 parallel 12V 100Ah lithium batteries can last anywhere from several hours to several days, depending on the power draw and environmental conditions. By optimizing the load demand and ensuring proper maintenance and care, you can maximize the lifespan of your lithium battery system and keep it running efficiently for years.
Impact of Battery Depth of Discharge (DoD)
Another important factor influencing how long the batteries will last is the Depth of Discharge (DoD), which refers to how much of the battery's total capacity is used before recharging. While lithium batteries are known for their deep discharge capabilities, it's advisable to limit the DoD to around 80% to maximize their lifespan. Discharging beyond 80% regularly can significantly reduce the number of charge cycles the battery can undergo, leading to a shorter overall lifespan.
For instance, if you frequently discharge your 400Ah battery system to 80%, the effective capacity becomes 320Ah (400Ah x 0.8). The amount of time the batteries will last will be based on this adjusted capacity.
| Load (W) |
Current Draw (A) |
Duration (hrs) |
Effective Capacity (Ah) |
Adjusted Duration (hrs) |
| 50 |
4.17 |
96 |
320 |
76.8 |
| 100 |
8.33 |
48 |
320 |
38.4 |
| 200 |
16.67 |
24 |
320 |
19.2 |
| 500 |
41.67 |
9.6 |
320 |
7.7 |
| 1000 |
83.33 |
4.8 |
320 |
3.8 |
As shown in the table, limiting the depth of discharge to 80% increases the effective lifespan of the batteries, but reduces the available duration at a given load.
Charging and Maintenance Considerations
Proper charging practices are essential to prolong the lifespan of the battery system. Lithium batteries are typically charged with a constant current followed by a constant voltage phase. The charge rate should ideally be between 0.2C and 1C to ensure safe and efficient charging. Overcharging or undercharging should be avoided to prevent damage to the battery cells.
Moreover, regular maintenance and monitoring of the battery’s health are crucial. With a good Battery Management System (BMS), users can track parameters such as voltage, temperature, and current, which can help ensure that the system is operating within safe limits.
Charging Example:
-
If you charge your 400Ah battery system at 0.5C (200A), it would take about 2 hours to fully charge the system (400Ah / 200A = 2 hours). However, charging at this rate may reduce battery life if done excessively, so moderate charging rates are recommended.
Expected Lifespan of Lithium Batteries
The lifespan of lithium batteries is typically measured in charge cycles, with one cycle representing a full charge and discharge. High-quality lithium batteries are capable of delivering between 2,000 and 5,000 charge cycles, depending on factors like DoD, charge rate, and environmental conditions.
Assuming a conservative estimate of 3,000 cycles, and with 80% DoD, the lifespan in years would be influenced by how often the battery system is cycled. For example, if the system undergoes one cycle per day, it would last approximately 8.2 years (3000 cycles / 365 days).
However, this can vary widely depending on usage patterns. If you cycle the batteries less frequently, their lifespan will naturally extend. For backup power systems with less frequent cycling, lithium batteries can last well over 10 years in many cases.
Efficiency Loss Over Time
As lithium batteries age, their capacity gradually decreases, leading to a reduction in the amount of energy they can store and deliver. This phenomenon, known as capacity fade, is typically around 2-3% per year for high-quality lithium batteries under normal conditions.
While the system will continue to function, users may notice that the batteries no longer last as long as they did when they were new. It’s important to take this into account when planning for long-term energy storage and to be aware that additional capacity may need to be added after several years to maintain the desired runtime.
Energy Efficiency
Lithium batteries are typically more efficient than traditional lead-acid batteries, with energy efficiencies around 95% for charging and discharging. This means that less energy is lost during the charging and discharging process, improving the overall performance of the system. The higher efficiency reduces the amount of power lost as heat, allowing for more energy to be used effectively.
Visualizing Battery Life with Load Demand
Below is a graph that illustrates the expected runtime of the 4 parallel 12V 100Ah lithium batteries under different loads, showcasing the relationship between load and duration:
This graph provides a clear visual representation of how the duration of the battery system decreases with increasing load. The line shows a steep drop in runtime as power demand increases.
Optimizing the Performance of Your Lithium Battery System
To ensure the longevity and efficiency of your 4 parallel 12V 100Ah lithium battery system, there are several best practices and strategies to consider. Implementing the following techniques can help optimize the performance of your battery system while extending its operational life:
1. Monitor Battery State of Charge (SOC)
Keeping track of the State of Charge (SOC) is crucial for maintaining a healthy battery system. Regularly monitoring the SOC ensures that the battery is neither overcharged nor excessively discharged, which can both shorten its lifespan. Many modern Battery Management Systems (BMS) provide real-time data on SOC, helping users avoid damaging conditions.
2. Use Energy Efficient Appliances
The load on your battery system plays a significant role in determining how long it lasts. Using energy-efficient appliances reduces the demand on the battery, allowing it to last longer before needing to be recharged. In solar applications, this can be especially beneficial in extending the autonomy of the system during cloudy days or periods of low sunlight.
3. Implement Deep Cycle Battery Practices
While lithium batteries can handle deep discharges better than traditional batteries, it’s still advisable to avoid frequent deep discharges that go beyond the recommended 80% DoD. Instead, aim to discharge the batteries to around 20% before recharging. This helps prevent premature aging and preserves the overall capacity.
4. Temperature Control
As mentioned earlier, temperature is a critical factor in battery performance. During hot weather, the internal temperature of lithium batteries can rise quickly, causing stress on the cells. Installing temperature sensors or maintaining the batteries in a climate-controlled environment can help protect them from excessive heat. Similarly, in colder climates, warming the batteries during cold weather can prevent performance degradation.
5. Regular Equalization and Balancing
Battery balancing ensures that all the cells in the battery pack charge and discharge at the same rate. An imbalanced battery pack can result in uneven wear across the cells, reducing the overall capacity and efficiency of the system. Most advanced BMS systems include an equalization function to balance the cells periodically.
6. Smart Charging Cycles
To avoid overcharging or undercharging, ensure that you follow smart charging cycles. Modern chargers designed for lithium batteries come with algorithms to prevent overcharging and automatically stop when the battery reaches full charge. These smart chargers also help in reducing the wear caused by frequent cycling.
Battery Maintenance for Longer Life
Proper maintenance is essential to keeping your battery system running efficiently. Regular inspections and routine maintenance can identify any potential issues before they become critical. Here are a few tips for maintaining your lithium battery system:
-
Check for Damage: Regularly inspect your battery system for signs of physical damage, such as swelling or corrosion.
-
Ensure Proper Ventilation: Ensure that your battery pack has adequate airflow to prevent overheating. This is especially important in high-power systems.
-
Clean the Terminals: Dirt and corrosion at the battery terminals can lead to poor connections and energy loss. Clean terminals with a soft brush and a mild cleaning solution as needed.
-
Keep Firmware Updated: Many BMS systems receive firmware updates from manufacturers. These updates can optimize performance and extend the lifespan of the system.
Real-World Example of Battery Life in Solar Systems
Let’s take a practical example of how 4 parallel 12V 100Ah lithium batteries perform in a typical solar energy storage system. Suppose the system is set up for off-grid use, with an energy consumption of about 300W per day (which is typical for a small household, lighting, and basic appliances). Let’s assume the solar panels charge the batteries throughout the day.1.
1. Daily Energy Consumption:
- 300W per day = 300W x 24 hours = 7.2 kWh/day.
2. Battery Storage Capacity:
- The total capacity of the 4 parallel 12V 100Ah batteries is 400Ah, or 4.8 kWh (12V x 400Ah = 4800Wh, or 4.8 kWh).
3. Duration of Backup Power:
- With a consumption rate of 7.2 kWh/day, these batteries can last for approximately 0.67 days (4.8 kWh / 7.2 kWh = 0.67 days). However, this assumes that the batteries are discharged fully, which should be avoided.
To avoid deep discharges, the system should be designed to only use about 80% of the battery's capacity, which would give you around 3.84 kWh of usable power. This would provide approximately half a day's backup power.
| Parameter |
Value |
| Total Battery Capacity |
400Ah / 4.8 kWh |
| Energy Consumption |
300W / 7.2 kWh/day |
| Usable Energy (80% DoD) |
3.84 kWh |
| Backup Power Duration |
0.5 days |
| Full Discharge Duration |
0.67 days |
This example highlights the importance of correctly sizing the battery system based on energy usage and factoring in reserve capacity to prevent deep discharges that can reduce the lifespan of the battery.
Scaling Up the Battery System for Greater Demands
If your energy requirements increase over time, it’s possible to scale up your battery system by adding more parallel-connected batteries. For instance, if you need more backup power for a larger home or business, you can add additional 12V 100Ah lithium batteries.
Each additional 12V 100Ah battery will add 100Ah to your total capacity, providing more energy storage and increasing the amount of time the system can power your devices. However, scaling up requires careful consideration of the following factors:
-
Space and Installation: As you add more batteries, ensure you have enough space for installation and proper ventilation. The batteries should be placed in a safe and easily accessible location for maintenance.
-
Battery Management System (BMS): When increasing the number of batteries, ensure that your BMS is capable of handling the increased capacity and can properly manage the additional cells. An overtaxed BMS can cause battery imbalances and performance issues.
-
Inverter and Charging System: With an increased battery bank, the capacity of your inverter and charger should be upgraded accordingly. A more powerful inverter is needed to convert the DC power to AC, and a higher-capacity charger is required to charge the expanded battery system efficiently.
For example, adding another 4 parallel 12V 100Ah batteries (resulting in 8 batteries total) would double your total storage capacity to 800Ah (9.6 kWh). With this larger battery bank, you would be able to power higher-load appliances for a longer period or increase the backup duration for critical systems.
Hybrid Systems: Combining Solar Panels with Battery Storage
Another common application of lithium battery systems is in hybrid solar power setups. In this scenario, lithium batteries are paired with solar panels to create an off-grid or grid-tied system that can store energy during the day and use it at night or during cloudy weather.
In a solar system, the solar panels charge the batteries during the day, and when the sun sets, the stored energy is used to power devices. A well-sized battery bank ensures that you won’t rely on the grid, reducing your electricity costs and providing backup power during outages.
For example, if you have a solar system that generates 6 kWh per day, and you consume 4 kWh of electricity per day, the batteries will store the surplus 2 kWh of energy. This energy can be used at night or during times when your solar system isn’t generating power. With 4 parallel 12V 100Ah batteries, you would have enough storage to run your system for about 1.5 days in the absence of sunlight, assuming you consume 4 kWh daily.
Enhancing Battery Performance with Software
Modern lithium battery systems are often accompanied by software solutions that provide additional control and optimization. These smart systems allow users to monitor battery performance, manage energy usage, and even adjust charging cycles based on real-time data. Many battery manufacturers offer dedicated apps that connect to the system via Bluetooth or Wi-Fi, providing insights into:
-
SOC (State of Charge) and SOH (State of Health)
-
Battery temperature and voltage levels
-
Charging and discharging cycles
These software tools help you better manage your battery system, ensuring that it operates within optimal parameters and performs reliably over time. Some systems even offer predictive analytics, notifying users when maintenance or system adjustments are required, which helps to prevent system failures.
