A Battery Management System (BMS) is essential for the safe and efficient operation of lithium batteries. An external BMS offers flexibility and advanced monitoring capabilities, making it a practical choice for applications requiring customization or higher capacity systems. This article explores the key considerations, advantages, and implementation tips for using an external BMS with a lithium battery.
Key Considerations for Using an External BMS
1. Compatibility
Ensure the BMS is compatible with your battery chemistry (e.g., LiFePO4, Li-ion). Voltage thresholds, current limits, and communication protocols must align.
2. Sizing the BMS
Choose a BMS rated for the battery pack's voltage and current requirements. Oversizing the BMS can ensure durability under high loads.
3. Connection Requirements

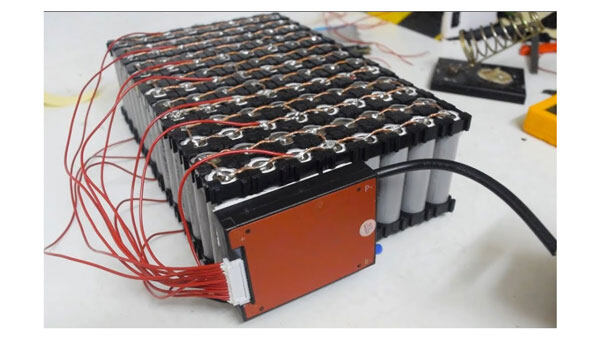

Proper wiring and connections are critical. External BMS units usually require connection to battery terminals, sense wires for cell monitoring, and communication interfaces.
Advantages of an External BMS
| Step |
Description |
| Use Accurate Instruments |
Invest in high-quality voltmeters and ammeters for better SOC estimation. |
| Monitor Cycles |
Track the number of cycles to understand degradation trends. |
| Avoid Overcharging |
Set safe voltage thresholds to protect battery health. |
| Store at Optimal SOC |
Store batteries at 50–70% SOC to minimize capacity loss during inactivity. |
| Regular Testing |
Perform periodic checks to ensure the SOC remains reliable. |
External BMS solutions are particularly valuable in large-scale applications like renewable energy storage, electric vehicles, and marine systems.
Implementing an External BMS
-
Plan Wiring and Layout
Organize the battery pack and BMS placement to minimize wire lengths and ensure safety.
-
Configure BMS Parameters
Program the BMS with appropriate voltage, current, and temperature settings for the specific battery.
-
Integrate Safety Mechanisms
Include fuses, circuit breakers, or disconnects for additional protection against overcurrent or short circuits.
-
Perform Thorough Testing
Validate the setup by monitoring cell behavior under different loads and conditions.
-
Maintain Regular Inspections
Periodically check connections, calibration, and software updates for optimal performance.
Practical Applications of an External BMS
-
Solar Energy Systems
External BMS units provide precise control over large-scale lithium battery banks, ensuring consistent performance.
-
Electric Vehicles
Advanced BMS units can manage high-current loads and integrate with vehicle control systems.
-
DIY Energy Projects
Hobbyists and engineers prefer external BMS solutions for their customizability and ease of use.
Advanced Monitoring with External BMS
An external BMS provides enhanced functionality through real-time monitoring of battery parameters. This feature is critical for applications where precise control and protection are essential. Monitoring features typically include:
-
Cell Balancing: Ensures each cell within the pack maintains equal voltage, preventing overcharging or undercharging.
-
Thermal Management: Tracks temperature to avoid overheating or freezing conditions.
-
State of Charge (SOC): Provides accurate battery capacity readings for better energy management.
To illustrate the benefits of real-time monitoring, the following line chart demonstrates the voltage behavior of a lithium battery pack during charge and discharge cycles.
Real-Time Voltage Monitoring Chart
Why Real-Time Data Matters
Real-time data not only improves operational safety but also extends battery lifespan. By continuously monitoring and analyzing voltage, current, and temperature trends, operators can:
-
Prevent Overstress: Avoid conditions that degrade cells prematurely.
-
Optimize Performance: Adjust system settings for maximum efficiency.
-
Plan Maintenance: Detect irregularities early, minimizing downtime and repair costs.
Popular External BMS Brands and Models
Many manufacturers offer external BMS solutions tailored to specific use cases. Notable options include:
| Brand |
Model |
Voltage Range |
Max Current |
| Daly |
BMS 8S 24V 60A |
24V (8S) |
60A |
| Trident |
BMS 12S 36V 100A |
36V (12S) |
100A |
| JBD |
BMS 14S 48V 150A |
48V (14S) |
150A |
| Ant BMS |
BMS 10S 36V 80A |
36V (10S) |
80A |
| Overkill Solar |
BMS 16S 48V 200A |
48V (16S) |
200A |
Safety Features of an External BMS
An external BMS significantly enhances the safety of lithium battery systems by incorporating multiple protective measures:
-
Overvoltage Protection: Prevents cells from being overcharged, reducing the risk of thermal runaway.
-
Undervoltage Protection: Avoids deep discharge, which can damage cells irreversibly.
-
Overcurrent Protection: Monitors and limits excessive current flow during charge or discharge cycles.
-
Temperature Management: Monitors and disconnects the battery in extreme temperature conditions.
These features are critical in ensuring the reliability and longevity of lithium battery packs.
Common Issues Addressed by External BMS
| Issue |
Description |
Solution Provided by BMS |
| Over-voltage |
Battery voltage exceeds the safe limit, risking damage. |
Monitors and disconnects the battery when voltage exceeds preset threshold. |
| Under-voltage |
Battery voltage drops too low, leading to possible irreversible damage. |
Shuts down or prevents further discharge below a set voltage level. |
| Over-temperature |
Excessive heat can degrade battery performance and safety. |
Monitors temperature and disconnects the battery if temperatures exceed safe limits. |
| Short-circuit |
A short circuit may cause battery damage or fire hazards. |
Detects short circuits and disconnects the battery from the load to prevent damage. |
| Cell Balancing |
Uneven charge levels across cells can cause inefficiency and reduced battery life. |
Balances the charge across cells to ensure equal voltage distribution. |
Best Practices for External BMS Integration
1. Verify Battery Parameters: Ensure all cell voltages and capacities are within the acceptable range before connecting the BMS.
2. Proper Insulation: Use heat-resistant materials and secure wiring to avoid short circuits.
3. Regular Calibration: Periodically recalibrate the BMS to maintain accuracy.
4. Use Certified Components: Always choose high-quality, certified components to prevent malfunctions.
With a carefully selected and implemented external BMS, you can maximize the performance, safety, and lifespan of your lithium battery systems.
Integrating an external BMS with a lithium battery pack is an effective way to enhance safety, improve performance, and extend battery lifespan. By selecting a compatible system, following best practices, and utilizing the advanced features of modern BMS units, you can ensure reliable operation for a wide range of applications, from renewable energy storage to electric vehicles. An external BMS is not just a safety device; it is a critical component that optimizes your energy system for both efficiency and durability.
FAQs
An external BMS offers greater flexibility, scalability, and advanced monitoring options, making it ideal for custom or large-capacity battery systems.
No, the external BMS must be compatible with the specific battery chemistry, voltage, and current requirements of your lithium battery pack.
The BMS connects to battery terminals, sense wires for individual cells, and sometimes communication interfaces like CAN bus or Bluetooth, following the manufacturer's wiring instructions.
Yes, by managing cell balancing, voltage thresholds, and temperature, an external BMS helps prevent damage and extends the overall battery lifespan.
An external BMS offers overvoltage, undervoltage, overcurrent, short-circuit, and thermal protections, ensuring safe operation of the battery pack.
